PARAMETERS OF CHIP SEALER
| Mass parameter: | ||||
| Kerb Weight(kg) | 15670 | Total Weight(kg) | 25000 | |
| Rated loading Weight(kg) | 9200 | Dimension(mm) | 10210*2495 | |
| *3450 | ||||
| Chassis Parameter: | ||||
| Chassis Model | SX1255JM434 | Tyre model | 12.00R20 | |
| Wheelbase (mm) | 4325+1350 | Tread (mm) | 2035/1800 | |
| Front Overhang(mm) | 1525 | Rear Overhang(mm) | 2800 | |
| Approach angle,Departure angle | 30°/15° | Minimum Ground Clearance (mm) | 250 | |
| Engine parameter: | ||||
| Engine model | WP10.270N | Manufacturer | Weichai Power Co. , Ltd | |
| Max.Power(kw) | 199 | Max. Torque(N.m) | / | |
| Fuel | Diesel | Displacement(ml) | 9726 | |
| Chip sealer specification: | ||||
| Tank Capacity(m³) | 6 | Chippings Capacity(m³) | 10 | |
| Hydraulic pump model | CBQ-F563 | Spray width | 3500mm | |
| Hydraulic motoe | L2F63W2P2(LIYUAN) | Spray Value | 0.5-3.0(Kg) | |
| Controller | ZM-3D | Insulation Thickness | 50mm | |
| Generator(Converter) | YT6800E(YITENG) | Nozzles | 28 | |
| Asphalt pump | QGB450(SHANGGUI) | Burner | G20(Riello) | |
| Other parameter: | ||||
| Max. truck speed(km/h) | 92 | Max. Grade ability | >23% | |
| Spring films(Front/Rear) | 9/12 | Minimum turning diameter (m) | 15.4 | |
| Axis No. | 3(6*4) | |||

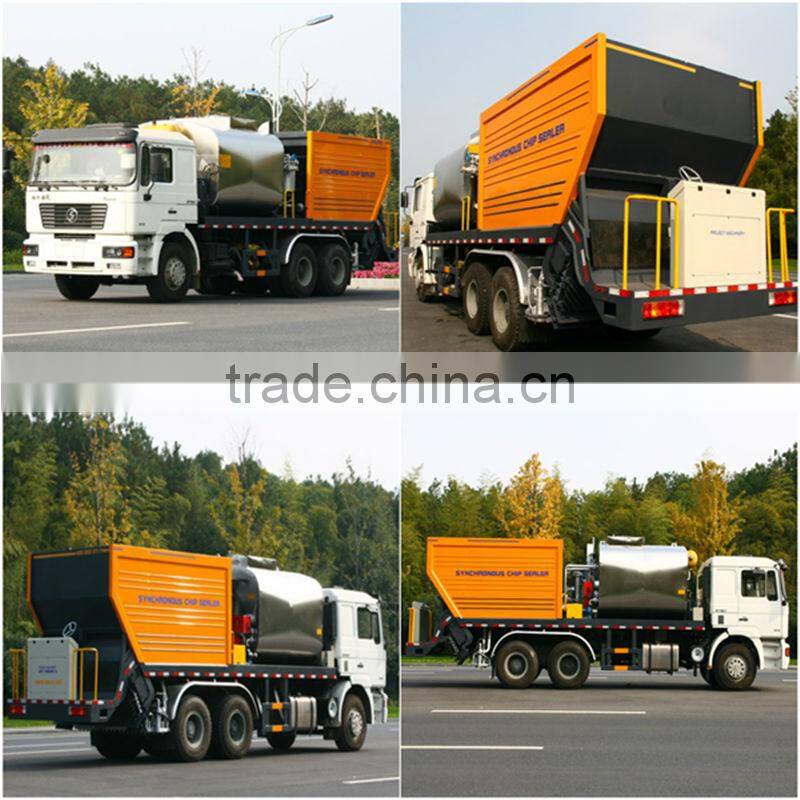

PICTURES OF CHIP SEALER

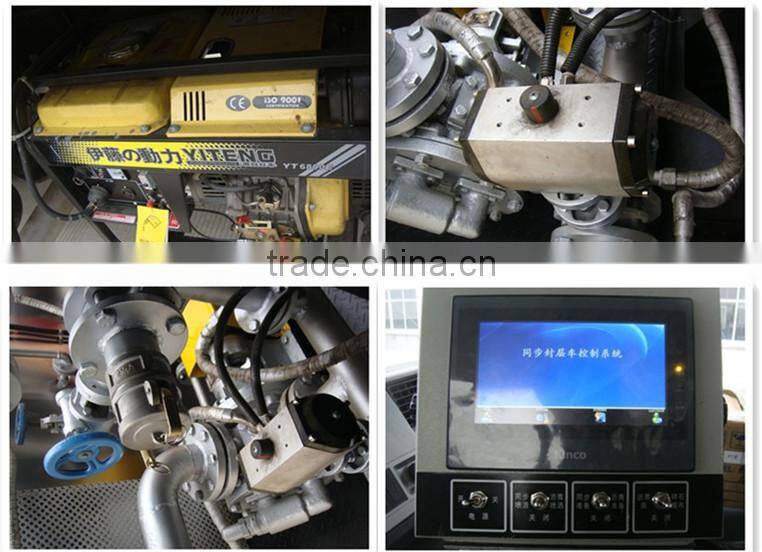

CORE PARTS OF CHIP SEALER

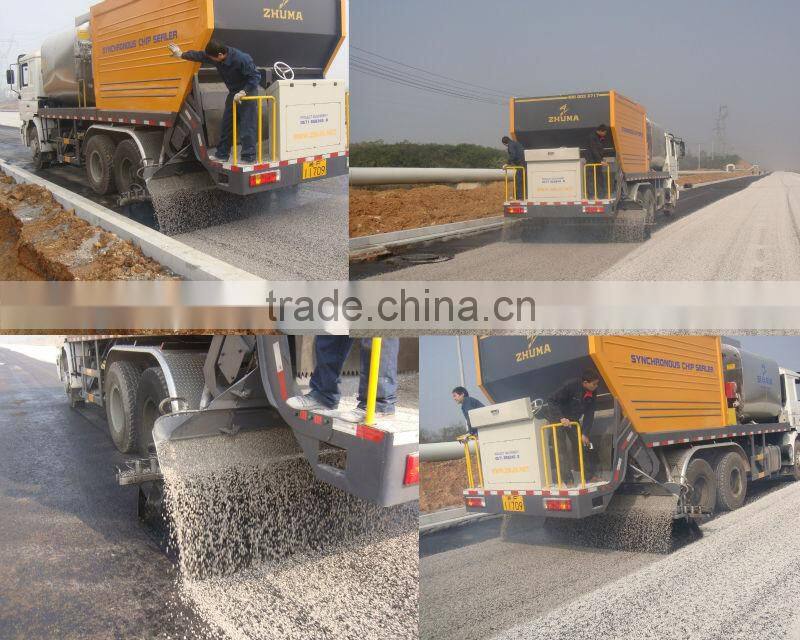

CASE OF CHIP SEALER

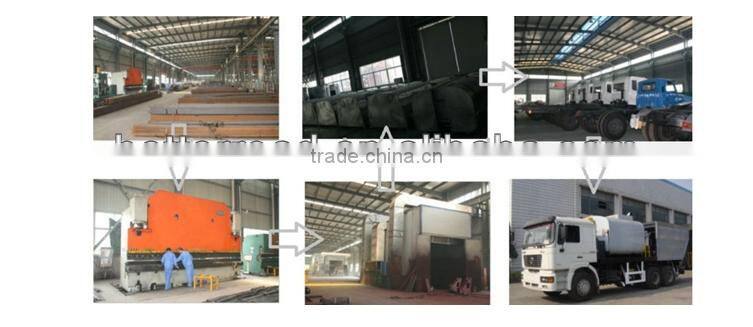

CHIP SEALER FLOW
1.Shaanxi Automobile heavy truck-Shaanxi Automobile Delong is used as bearing chassis for chip sealer.
2.Spreading quantity of asphalt and crushed stones is intelligently controlled. Synchronous spraying of asphalt and crushed stones is controlled with one key for chip sealer.
3.True-color large screen LCD screen observes and monitors working condition and parameters of vehicle in real time for chip sealer.
4.Through the perfect combination of electrical control and constant presure device of hydraudic system, zero start spreading is realized for chip sealer.
5.The unique and innovative chip distributing device will distribute the chips in a more even and beautiful manner for chip sealer.
6.The burner dry burning-resistant safety device and haet conduction oil temperature monitoring system are first developed. The heating is asfer and more reliable for chip sealer.
Best Services Just For You!!
The extremely considerate and sincerely service would be provided to our customers immediately in CNCAC once made the order. This including:
1.Operator Training;
2.Spare Parts Supply;
3.Life-long Technical-support;
4. we can supply installation, commissioning, training etc;
5. welcome to visit our factory at any time any where!!!
We can meets different requirements of road chip sealer/seal car/road construction machinery on chassis, tank capacity, spray width, nozzles etc.
We are 5 year gold supplier on Alibaba.
Click the Link to our homepage.
