Safety Operation and Reliable Trail Asphalt Distributor

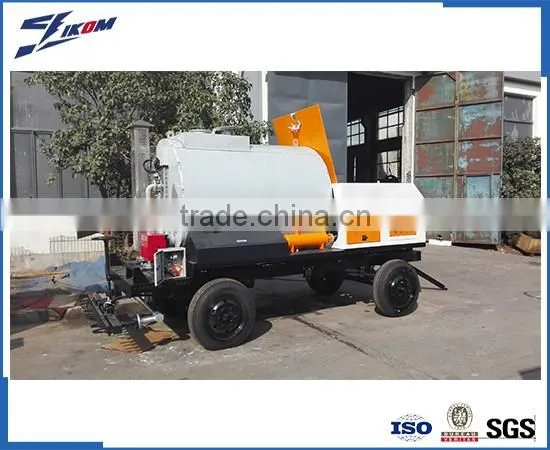

Safety Operation and Reliable Trail Asphalt Distributor photo-1

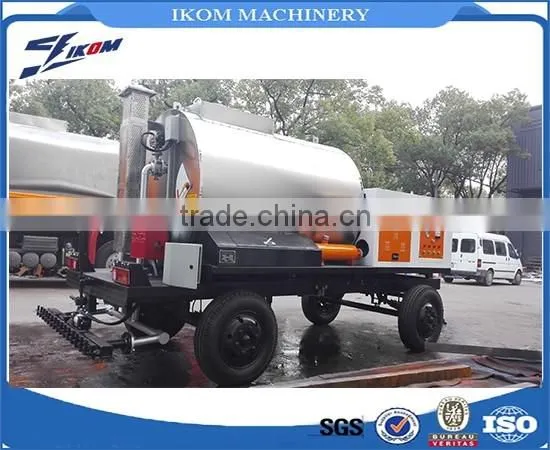

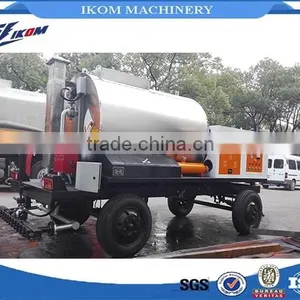

Safety Operation and Reliable Trail Asphalt Distributor photo-2
Safety Operation and Reliable Trail Asphalt Distributor photo-3

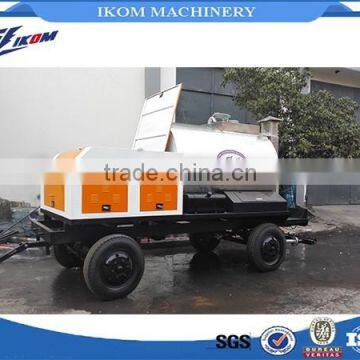

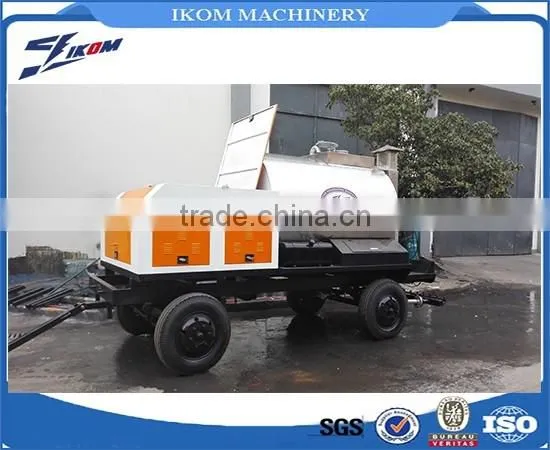

Safety Operation and Reliable Trail Asphalt Distributor photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
IKOM
Model Number:
ZMTS-25
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name IKOM
Model Number ZMTS-25
After-sales Service Provided Engineers available to service machinery overseas
Product Description

 Trail Asphalt Distributor



synchronous chip sealer is the special construction machinery of international stature and could be applied into the simultaneous spraying work of highways.It could simultaneously spray asphalt and aggregate or respectively spray them. It features cost saving, wear resistance and anti-skidding of road surface and good waterproof performance. The traffic could be recovered soon once the construction is conpleted.

Detailed Images

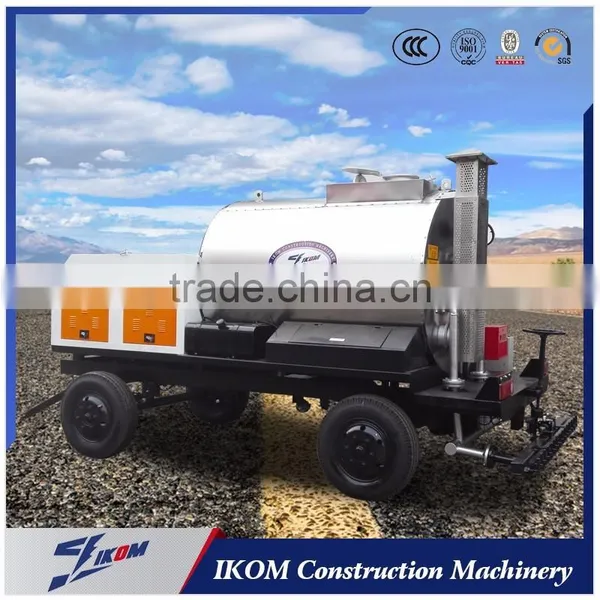

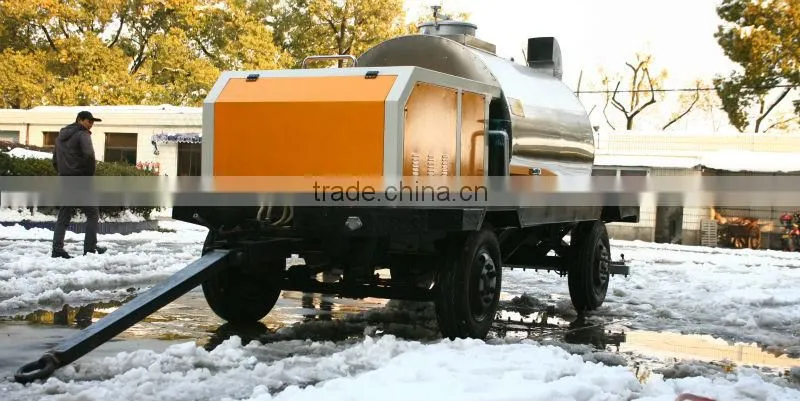

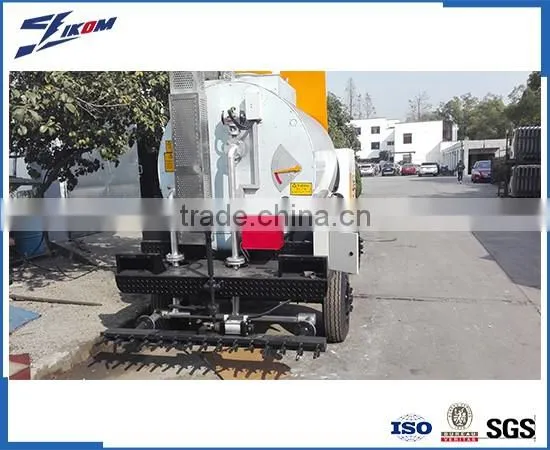

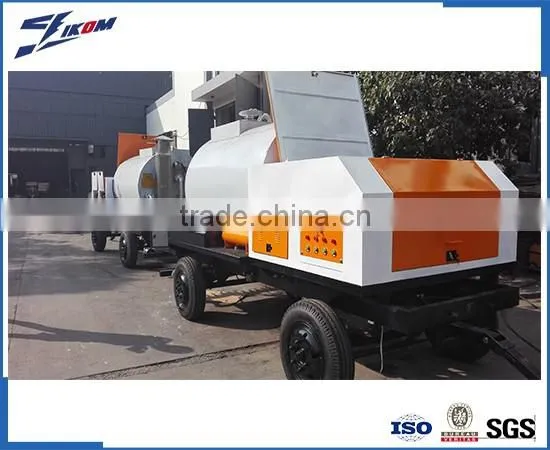

Pictures Of Trail Asphalt Distributor



Safety operation and Reliable Trail Asphalt DistributorSafety operation and Reliable Trail Asphalt DistributorSafety operation and Reliable Trail Asphalt Distributor

Technical parameters

 Parameter Of Trail Asphalt Distributor



Name

Trail Asphalt Distributor

 Model

ZMTS-25

Mass parameter:

Dimension(mm)(Excluding traction arm )

4960×1860×2200

Total Weight(kg)

4800

Rated loading Weight(kg)

2500

Kerb Weight(kg)

2300

Chassis Parameter:

Chassis Model

ZMTS-25

Tyre model

7.50-16

Wheelbase (mm)

2310

Tread (mm)

1650

Minimum Ground Clearance(mm)

350





Spray  specification:

Tank Capacity(m³)

2.5

Spray width

2000mm

Nozzles

15

Spray Value

0.5-3.0(Kg)

Manual gun nozzle

1(conical )

Insulation Thickness

50mm

Burner

G10(Riello)

Asphalt pump

YCB6/0.6

Generator(Converter)

YT7100E

Air compressor

0.1/0.8

Other parameter:

Max. Trail speed(km/h)

30

Axis No.

2



Case

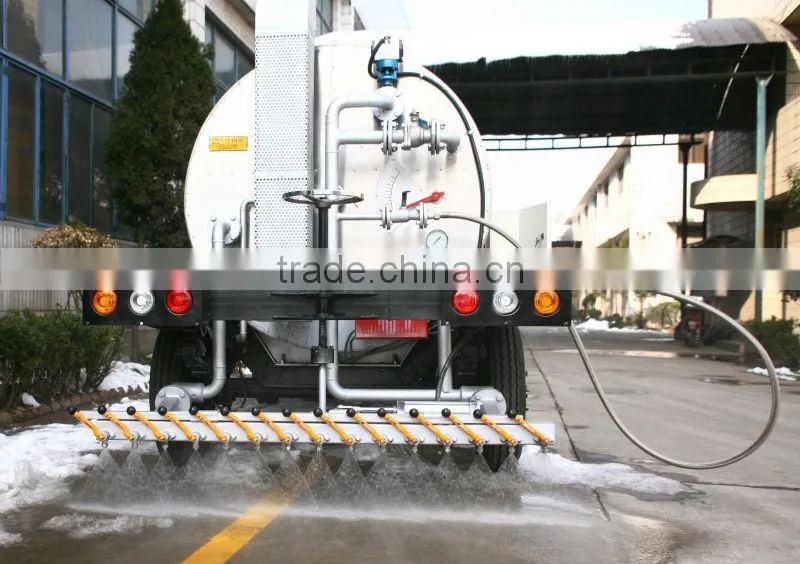

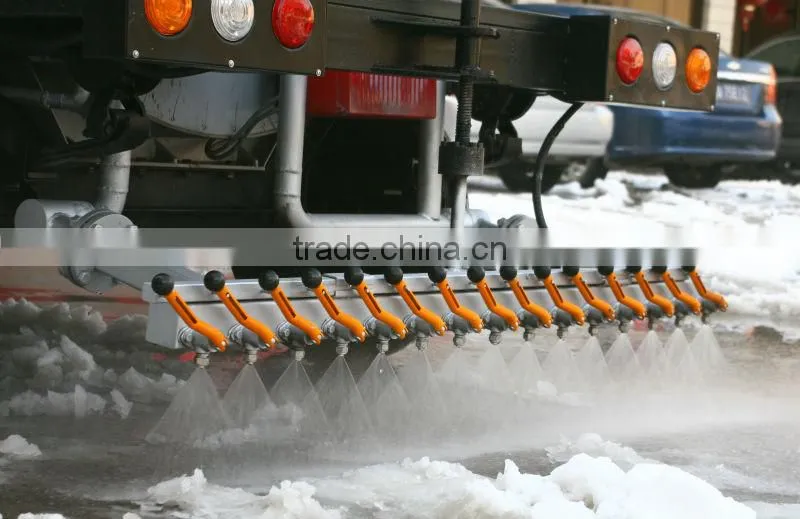

Pictures Of Construction

Company Information

 Information Of Company

Hangzhou IKOM Construction Machinery Co., Ltd is a professional manufacture of road construction machinery in china. Management team with many years of experience in the design and manufacture of construction equipment and trained world renowned equipment manufacturing experts at home and abroad a number of important new technology road works promotion of new equipment , get a good project results. Especially developed to optimize applications with industry-leading levels of construction equipment and asphalt in the asphalt performance .My company has a system integration technology road construction equipment, to meet the equipment requirements of the whole process . Management team has a strict work style and good business philosophy of cooperation between the parties work together to provide integrated services industry demeanor , higher precision , specialized in the development of the road .

Safety operation and Reliable Trail Asphalt Distributor



Our Services

Best Services Just For You

The extremely considerate and sincerely service would be provided to our customers    immediately in CNCAC once made the order. This including:

1.Operator Training;

2.Spare Parts Supply.

3.Life-long Technical-support

4. we can supply installation, commissioning, training etc

5. welcome to visit our factory at any time any where!



FAQ

The Information You May Like To Know Before Order

 1. Methods of Payment:

T/T (Telegraphic Transfer) or Western Union or L/C at sight

 2.MOQ:

No requirement for testing and trial order

 3. Handling time for an order

Within 10 days supplied from stock

 4. Shipping way

Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air Bulk order: we suggest by air or by sea.

 5. Quality Control

We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.

 6. After Services:

a. Our sales team will response for your question within 24 hours (Holidays Excluded) b. Technical Support will be available in any time c. Free replacement will provide once the failure confirmed caused by our product quality.
