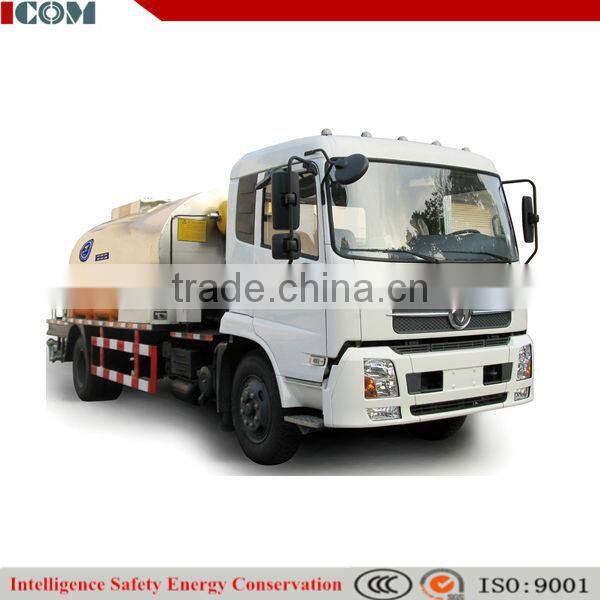

Asphalt Sprayer
Introduction

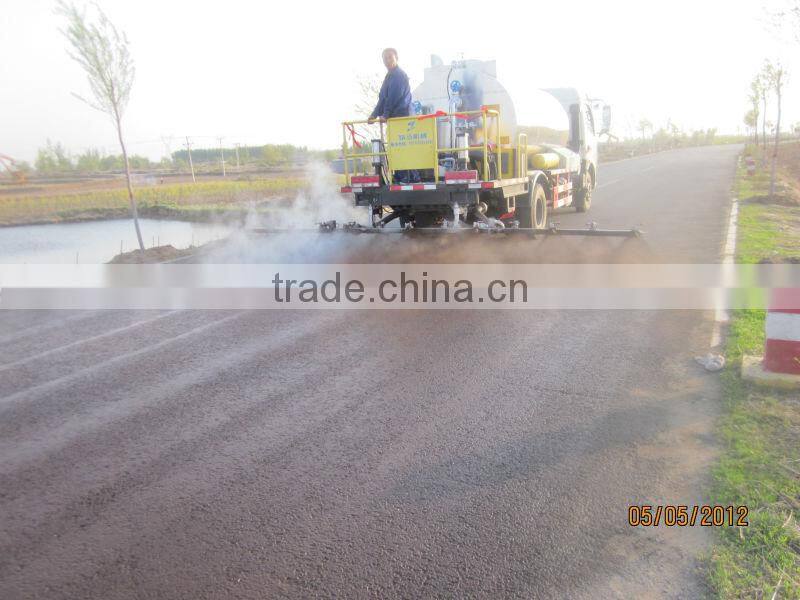

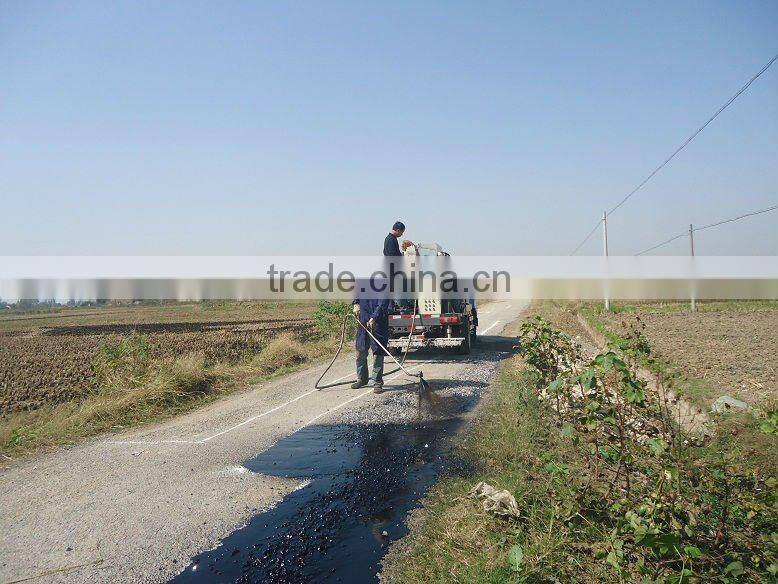

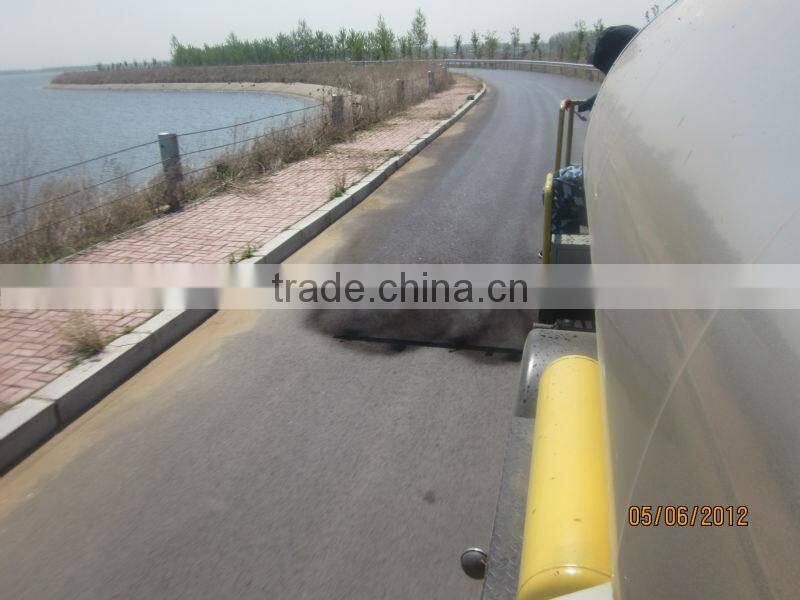

Asphalt Sprayer is an intelligent high-tech product which can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt and high viscosity modified asphalt (vehicle with high configuration). The product has been widely used in highway construction and road maintenance projects. It can be used for construction of upper and lowers seal coat, prime coat, waterproof layer, bonding layer, bituminous surface treatment, bituminous penetration pavement, fog seal and other projects of different grades of highway pavement. It can also be used for transportation of liquid asphalt or other heavy oil.
Original wedge positioning stainless steel combination nozzle sprays in the fan-shaped area and positions accurately. It is wear-resisting and the quality is reliable. It is fast and convenient to replace.
Equipped with high power auxiliary generator
Asphalt pipeline has systemic circulation. It is suitable for spraying emulsified asphalt and heated asphalt.
Three overlapping spraying ensures more uniform spreading with higher precision.
PTO power take-off method is used. Zero distance spraying can be realized.
Parameter
Model | ZQZ5168GLQ |
Dimension | 8800*2490*3200mm |
Chassis | DFL1160BX4 |
Engine | EQH180-30 |
Engine Power | 132kw |
Auxiliary engine power | 5kw |
Tank Capacity | 8m³ |
Spray Rate | 0.25~3.0 L/m2 |
Accurancy | ±1.5% |
Spray Width | 6m |
Control | manual and computer |
