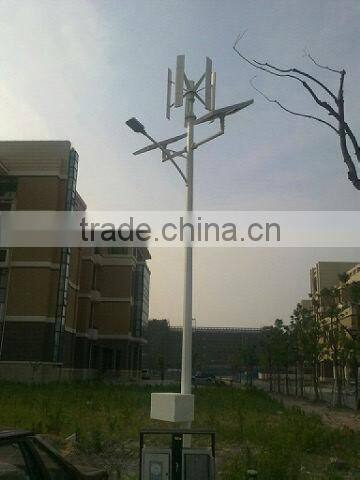

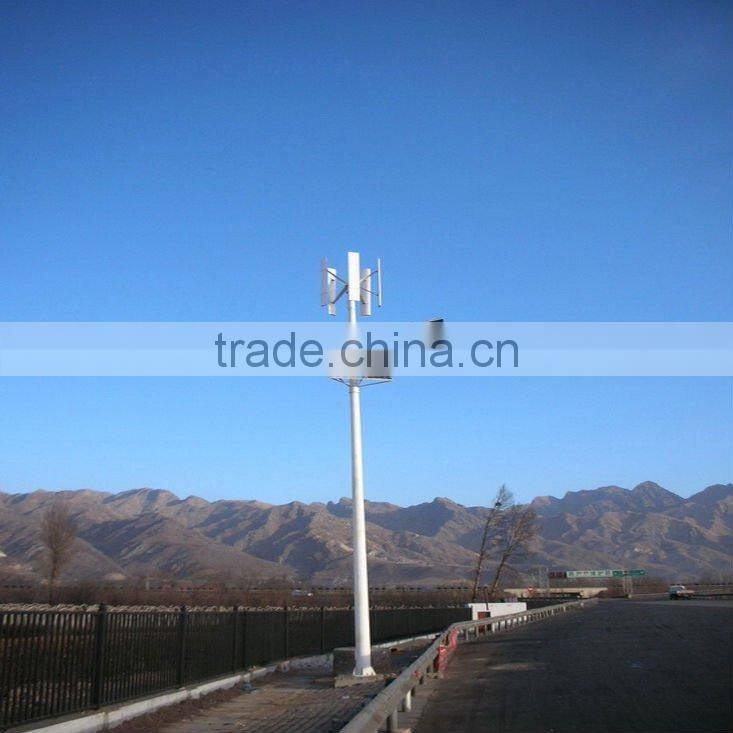

Vertical Turbine Wind Solar Hybrid System

Specifications

vertical turbine wind solar hybrid system

Advantages:

Our BF-H series wind power generators utilize a new aerofoil vertical axis wind wheel and magnetic suspention structure,with high wind energy coefficient, the low start-up wind speed, the high anti-wind capability,the high stability,with gorgeous appearance,have no noise,with careful anti-corrosion treatment and good sealing, maintenace free and long service life.

Configuration:

By being configuring with the solar panels,one hybrid power system can make full use of wind and solar energy at the same time to produce more electricity for street light,supply power for the home use,engineering problem solving and so on.

Techinical parameters:

Model:BF/WSH-001

Generator Type: 300w permanent magnetic direct drive VTAW, 3 phase AC

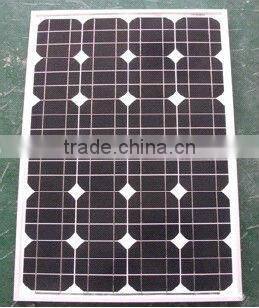

Solar:60W×2monocrystalline silicon

Material of tower:  Steel,galvanize,spray plastic coating.

Height of the tower:  8m

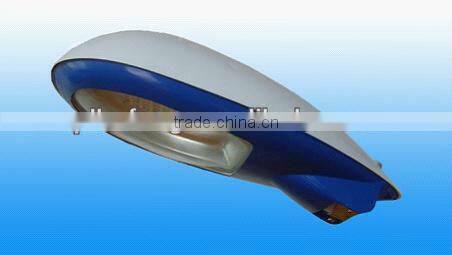

Lamp-house configuration:  LED-40W

Working time:  10 hours per day

Configuration in rainy day:  can be used continuously for 4 days

Control mode:  time control/light control

Working voltage:  24V

Colloid storage battery:  12v80ah×2

Note:

1.     Tower height can be changed as per your request.

2.     Working voltage can be special requested.

3.     CE,ISO9001:2008

4.     For the power curves and details,please feel free to contact me.

The configuration of wind-solar hybrid power system can be adjusted according to your requirements.
