Home > Industrial Equipment & Components > Power & Generating Sets > Wind Generator > Best Price Wind and Solar Hybrid Street System
US$ 1,868 - 1,868
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Bofeng
Model Number:
wind and solar hybrid 001
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wind Solar Hybrid Street Lighting SystemUS$ 2,127 - 2,185MOQ: 1 Set -
Wind Solar Hybrid Power System ProjectUS$ 750 - 850MOQ: 1 Set
-
Wind Power Generator With Solar PanelsUS$ 2,127 - 2,185MOQ: 1 Set
-
Small Power 2kw Vertical Axis Wind GeneratorUS$ 2,800 - 3,500MOQ: 1 Set
-
Household Vertical Axis Wind TurbineUS$ 750 - 850MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
Bofeng
Model Number
wind and solar hybrid 001
Type
Wind Power Generator
Product Description
Wind turbine and solar panel specification
Wind turbine
Power(w) | 500 | Rated wind speed | 11 |
Rotor diameter | 1.3 | Start-up wind speed | 1.8 |
Height of blade | 1.6 | Range of working wind speed(m/s) | 1.8-25 |
Material of blades and numbers | Glass Fiber Reinforced Plastic/5 | Survival wind speed | 50 |
Rated rotor speed | 200r/min | Output Voltage | AC24 |
Speed regulation method | Electromagnetic control | Stop method | Electromagnetic brake |
Wind energy utilized coeffeicent | 30%-40% | Sweep wind area() | 2.08 |
Range of working temperature | -45℃-60℃ | Suggested supporting battery | 2pcs12v200ah |
Top weight (kg) | 90 | Tower type and height | tower/8m |
Solar Panel
Led lamps

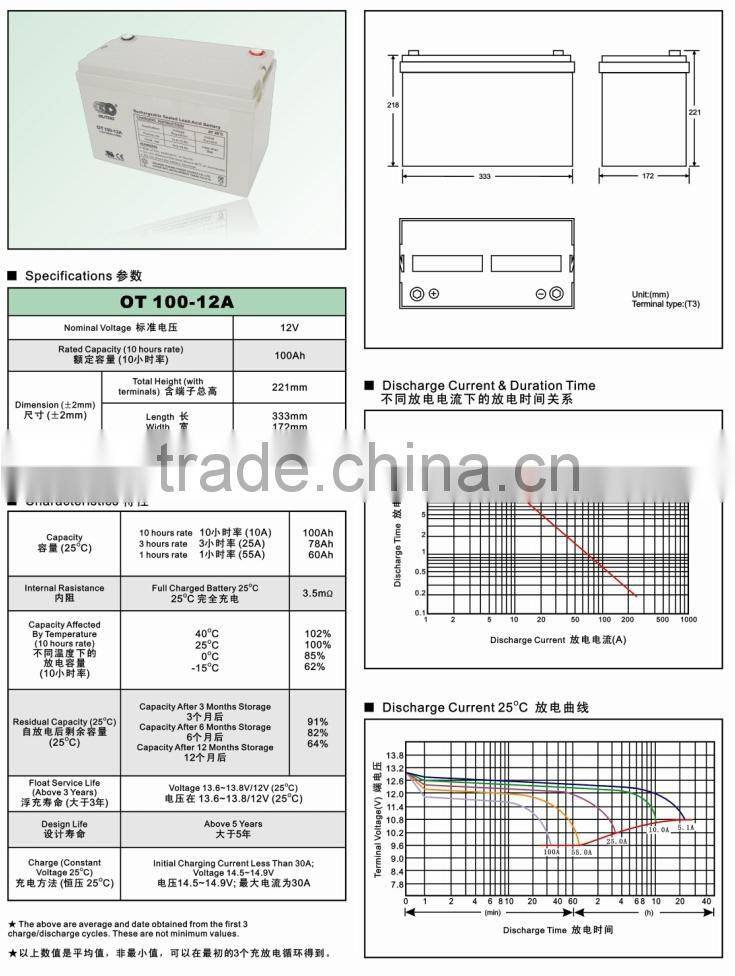

Battery

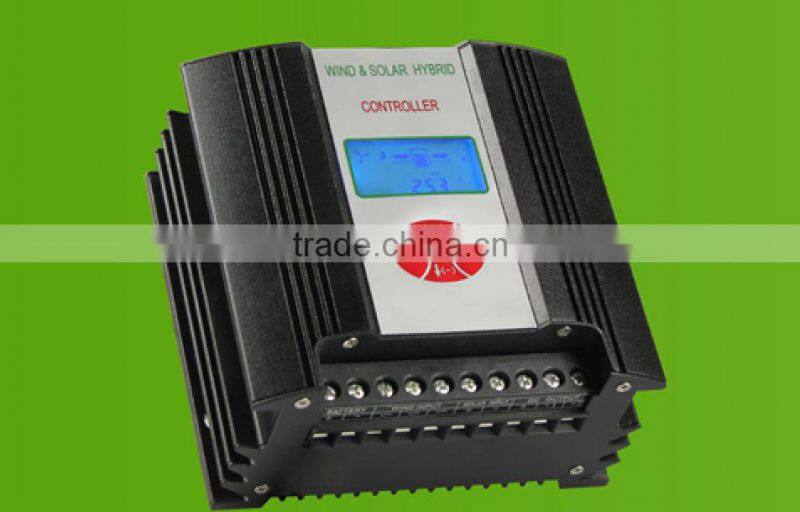

controllor
Rated Wind Turbine Input Power | 200W | 300W | 400W |
Maximum Wind Turbine Input Power | 300W | 450W | 600W |
Wind Turbine Brake Current | 17A | 25A | 34A |
Rated Solar Input Power | 150W | ||
Dumpload Start Voltage | 13.5V | ||
Charge Shutoff Voltage | 14.5V | ||
Battery Under Voltage Shutoff | 10.8V | ||
Battery Under Voltage Recovery | 12V | ||
Input Over Voltage Shutoff | 16V | ||
Light Control On Voltage | 1V | ||
Light Control Off Voltage | 1.5V | ||
Rated Output Current of Load 1 | 10A | ||
Rated Output Current of Load 2 | 10A | ||
Load 1 Output Control Mode | Light Control On and Light Control Off | ||
Load 2 Output Control Mode | Light Control On and Time Control 5 Hours Off | ||
Dumpload Control Mode | PWM | ||
Display Mode | LCD | ||
Quiescent Current | ≤20 mA | ||
Ambient Temperature & Humidity Range | -20~+55℃/35~85%RH(Without Condensation) | ||
Display Content | Battery Voltage, Wind Turbine Voltage, PV Voltage, Wind Turbine Current, PV Current, Wind Turbine Power, PV Power, Over Voltage, Under Voltage, Over Load, Short Circuit, Night etc status | ||
Protection Function | Solar reverse charge protection , Solar reverse connection protection, Battery over charge protection, Battery over discharge protection, Battery reverse connection protection, Over load protection, Short circuit protection, Lightning protection, Wind turbine current limiting, Wind turbine automatic brake and manual brake. | ||
By-pass function (Optional) | Auto Switch | ||
Temperature Compensation Function (Optional) | -4mV/℃/2V ,–35℃--+80℃ ,Precison:±1℃ | ||
Communication Mode (Optional) | RS232,RS485,RJ45,GPRS (Optional) | ||
Dimension (L x W x H) | 142×150×82mm | ||
Net Weight | 1.9kg | ||
| In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement. | |||

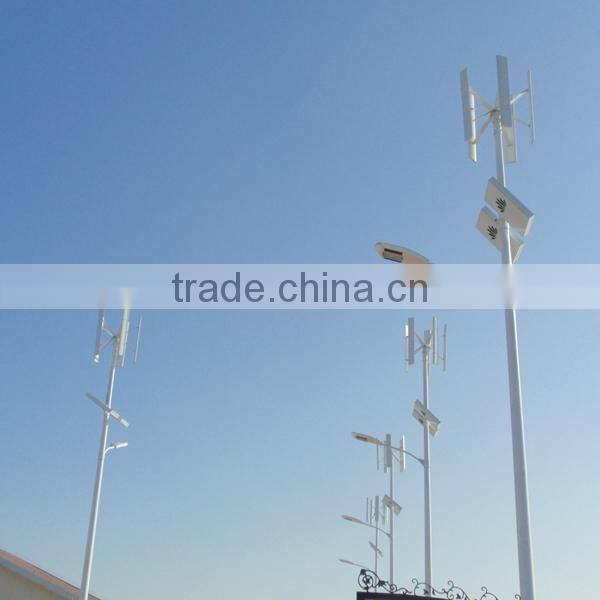

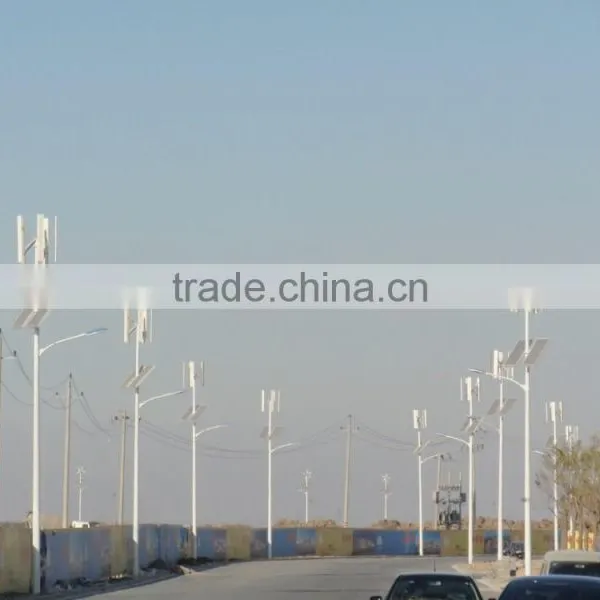

The connection of wind and solar hybrid street light.
