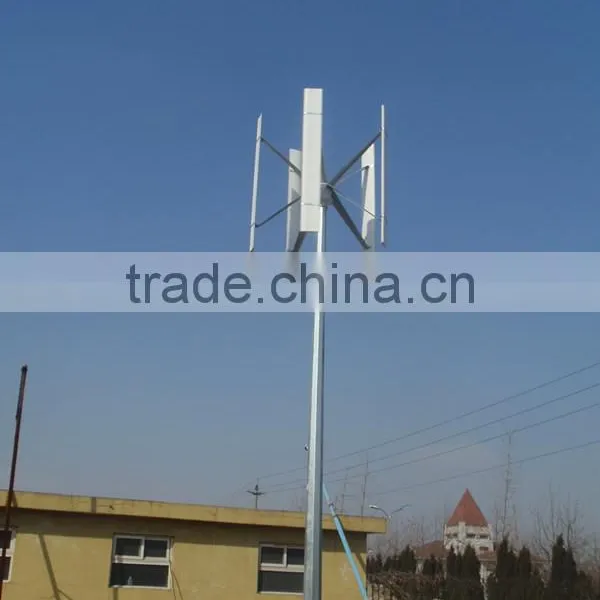

low start up wind speed wind generator
Model:BF-H-2K
Generator Type:Direct drive permanent magnet VAWT, 3 phase AC
residential vertical wind generatorPower(w):2000
Rated wind speed(m/s):9-11
Rotor diameter(m):2
Start-up wind speed(m/s):3
Height of blade(m):2.6
Range of working wind speed(m/s):3-25
Material of blades and numbers:Glass Fiber Reinforced Plastic/5
Survival wind speed(m/s):50
Rated rotor speed(m/s):200r/min
Output Voltage:AC48V
Speed regulation method:Electromagnetic control
Stop method:Electromagnetic brake
Wind energy utilized coeffeicent:30%-40%
Sweep wind area:3.14sq.m
Range of working temperature:-45 -60 centigrade
Suggested supporting battery:4pcs12v100ah
Tower type and height:Guy cable tower/8m
Material introduction:
wind turbine blades: We utilize high strength glass fibre reinforced plastic and epoxy resin to make blades.The wind rotor operate well(stably and quietly).This kind of new aerofoil is elaborately designed by aerodynamic and hydromechanical specialists(experts).It start-up wind speed(or cut-in wind speed)is very low,and the wind energy (rotor power)coefficient is very high.
Generator:It is made up of the superior high strength permanent magnetic material. The volume is small and the weight is light, the generating electricity coefficient is high.The generator specialist(expert) use special electromagnetic technology to make the generator have extremely low start-up drag torque, which can make sure the VAWT start-up in the gentle breeze.The generating electricity coefficient, start-up performance and overspeed overload capacity of generator are all in leading position in this field.
Controller:
IController Parameter:
Model |
WWS20A-48 |
WWS20A-96 |
WWS20A-120 |
WWS20A-220 |
|
Rated Wind Turbine Power |
2kW |
||||
Rated Solar Power |
600W |
||||
Rated Battery Voltage |
48V |
96V |
120V |
220V |
|
Wind Turbine Maximum Input Current |
80A |
40A |
30A |
20A |
|
Wind Turbine Maximum Input Power |
4kW |
||||
Unload Voltage(factory default) |
56V |
112V |
140V |
252V |
|
Unload Current(factory default) |
50A |
25A |
|||
Control Mode |
PWM |
||||
Display Mode |
LCD |
||||
Display Parameters |
Wind Turbine Power, Wind Turbine Voltage, Wind Turbine Current, PV Voltage, PV Charge Current, PV Power, Battery Voltage |
||||
Working Temperature &Humidity |
-20~+50℃/35~85%RH(Without Condensation) |
||||
Temperature Compensation(optional) |
4mV/℃/2V ,–35℃--+80℃, Precision:±1℃ |
||||
Communication Mode(optional) |
RS232,RS485,RJ45,GPRS. Etc |
||||
Protection Function |
Solar reverse charge protection , Solar reverse connection protection, Battery over charge protection ,Battery reverse connection protection, Lightning protection, Wind turbine current limiting, Wind turbine automatic brake and manual brake. |
||||
In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement. |
|||||
Inverter:
Inverter Parameter:
Product Model |
WI20-24-3N01 |
Rated Output Capacity |
2kVA |
Rated Battery Voltage |
48VDC |
Over Voltage Shutoff |
66VDC |
Over Voltage Recovery |
42VDC |
Under Voltage Shutoff |
48VDC |
Under Voltage Recovery |
48VDC |
No-load Loss |
≤0.35A |
Output Wave |
Pure sine Wave |
Display Mode |
LCD |
Cooling |
Fan |
Rated Output Voltage |
220VAC |
Wave Distortion |
≤4% |
Output Frequency |
50±0.5Hz |
Dynamic Response |
5% |
Power Factor |
≥0.8 |
Over-load Capacity |
120% 1min,150% 10s |
Invert Efficiency |
90% Max |
Isolating Mode |
Toroidal Transformer |
Noise (1m) |
≤40dB |
Insulating Strength |
1500VAC,1min |
Protection Functions |
Input over voltage protection, Battery under voltage protection, Battery anti-reverse connection protection, Output overload protection, Output short circuit protection, Over temperature protection. |
Ambient Temperature |
-20~+55℃ |
Working Altitude |
≤4000m |
Ambient Humidity |
0~90%,Without Condensation |
Dimensions (Lx W x H) |
402×163×202mm |
Net Weight |
12kg |
In order to serve our customers better, our company can adjust parameter configuration according to customer’s requirement. | |
