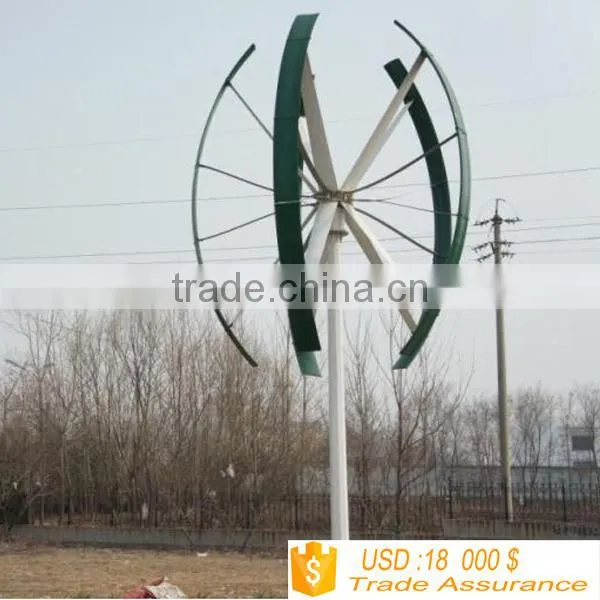

maglev vertical axis wind generator
1.The warranties for our wind turbines is 2 years.
2.Our product passed CE,ISO c
ertification,the generator assembly is high reliability,high efficiency,light weight,good surface and sealing.
3.Besides,our BF-H series wind power generating set utilize a new aerofoil vertical axis wind wheel and magnetic suspention structure,the wind energy cofficient is very high,the start-up wind speed is very low,the anti-wind capability is high.have no noise.
4.What's more,the wind turbine's tower our engineer designed is free standing tower for security, as the generator and blades are much more big and heavy,so the price is a little bit high.
5.Generally speaking,our wind turbine is very fair in configuration,superior in quality,high in security.and the warranties for our wind turbines is 2 years. you can use it enduringly and safely.
Techinical parameters:
Model:BF-H-10KW
Generator Type: permanent magnetic direct drive VTAW, 3 phase AC
Power(w) |
20000 |
Rated wind speed (m/s) |
12 |
|
Rotor diameter (m) |
8 |
Start-up wind speed (m/s) |
3.8 |
|
Height of blade (m) |
10 |
Range of working wind speed(m/s) |
3.8-25 |
Material of blades and numbers |
Glass Fiber Reinforced Plastic/5 |
Survival wind speed (m/s) |
50 |
|
Rated rotor speed (m/s) |
100r/min |
Output Voltage |
AC380/600V |
Speed regulation method |
Electromagnetic control |
Stop method |
Electromagnetic brake |
Wind energy utilized coeffeicent |
30%-40% |
Sweep wind area |
28.26 |
Range of working temperature |
-45°C-60°C |
Suggested supporting battery |
64pcs12v200ah |
Top weight (kg) |
880 |
Tower type and height |
Free standing tower/10m |

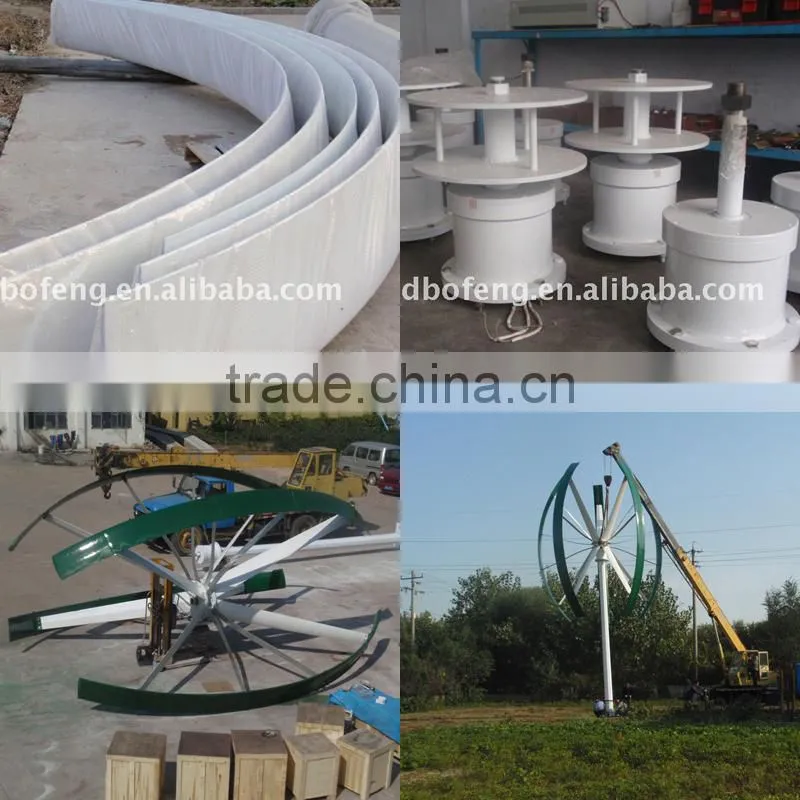

Workshop:

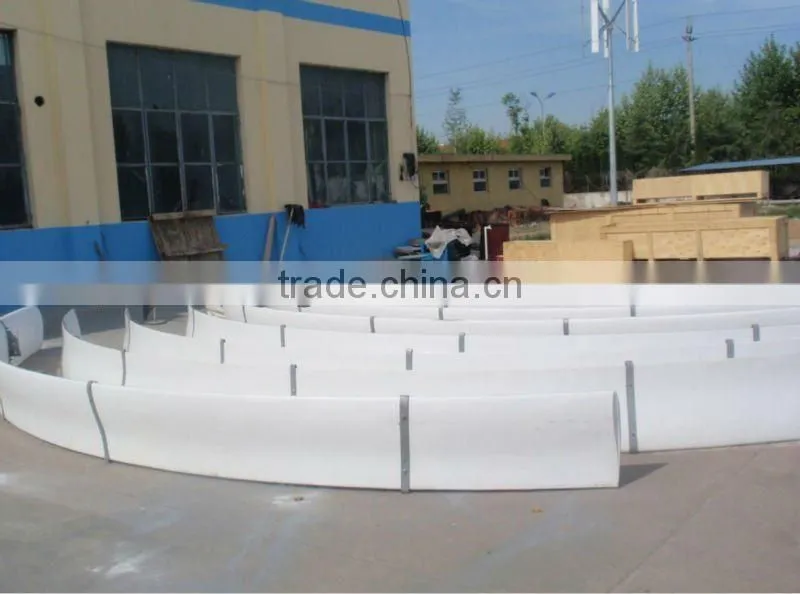

Facotory view:
