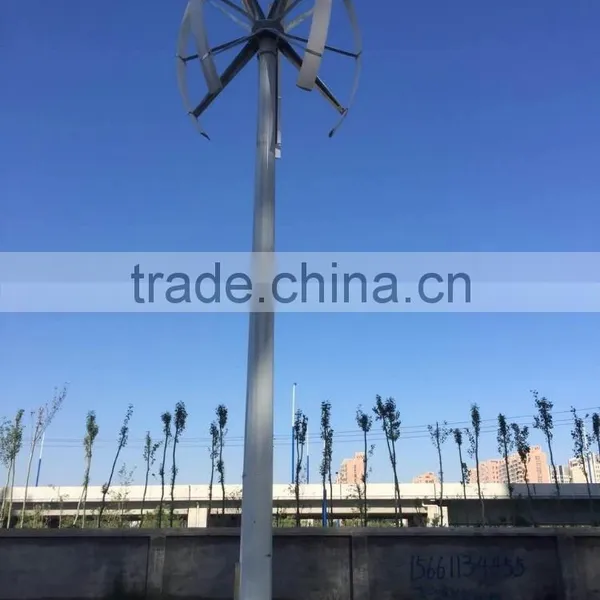

Maglev Vertical Axis Wind Turbine

maglev vertical axis wind turbine

 BF/VAWTH series wind power generating set utilize a new aerofoil vertical axis wind wheel and magnetic suspention structure,the wind energy coefficient is very high, the start-up wind speed is very low,the anti-wind capability is high,have no noise.

 Material introduction:

wind turbine blades: We utilize high strength glass fibre reinforced plastic and epoxy resin to make blades.The wind rotor operate well(stably and quietly).This kind of new aerofoil is elaborately designed by aerodynamic and hydromechanical specialists(experts).It start-up wind speed(or cut-in wind speed)is very low,and the wind energy (rotor power)coefficient is very high.

Generator:It is made up of the superior high strength permanent magnetic material. The volume is small and the weight is light, the generating electricity coefficient is high.The generator specialist(expert) use special electromagnetic technology to make the generator have extremely low start-up drag torque, which can make sure the VAWT start-up in the gentle breeze.The generating electricity coefficient, start-up performance and overspeed overload capacity of generator are all in leading position in this field.

Whole machine:It is made up of steel precision casting.It is widely used in air temperature:-30°C-60°C,high humidity, karaburan and salt mist(in some atrocious weather).It has high reliability.BF series small VAWT,whose appearance is beautiful,installation is easy.You can enjoy the clean (green)energy,at the same time,you will see a beautiful scenery.

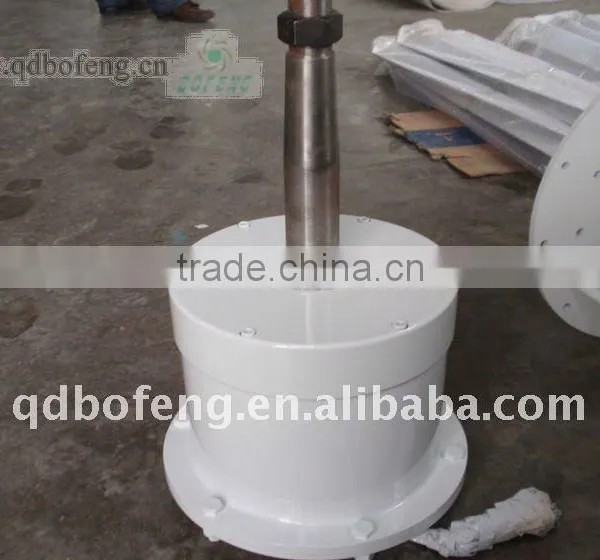

Generator:

 Blades:

 Controller:

Inverter:

 Guy cabled tower

Free-standing tower:

Factory view:
