Wind Turbine 20kw
Specifications
1.20kw wind turbine2.low start up wind speed
3.high wind energy efficient.
4.CE,ISO certified.
5.no noise

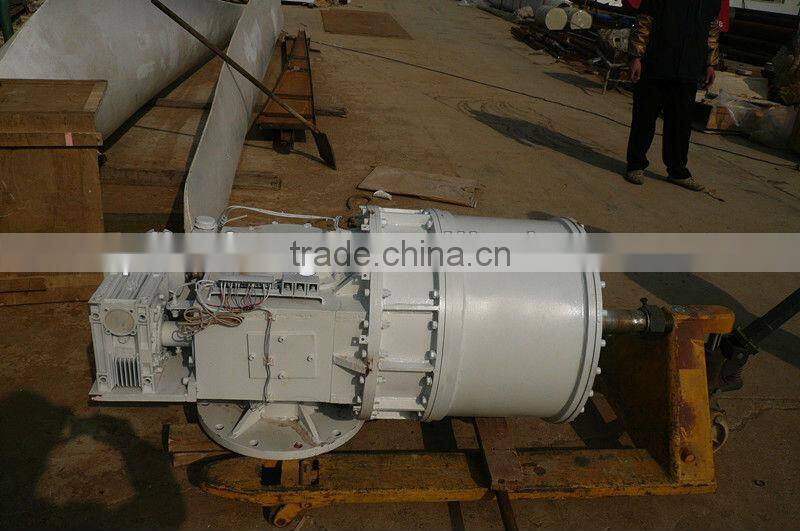

wind turbine 20kw
- Blade design according to the structure and technology of airplane propeller, low noise and high strength
- Generator adopt NdFeB strong permanent magnetic materials
- Adopt the slip ring for power output, to prevent the cables twisted
- Special slip ring can allow big current
- Newest high technology PWM controller
- Special anti-corrosion treatment
Power |
20000W |
Type of generator |
Permanent-magnet -3phase A.C. |
Blade diameter |
11.0m |
Blade Material: |
FRP (Fiber glass reinforced*3) |
rated rotor speed |
120r/min |
rated speed |
10m/s |
rated Power |
20000W |
max Power |
25000w |
output voltage |
DC380V/AC380V/50HZ |
start up wind speed |
3(m/s) |
work speed |
3-25(m/s) |
security wind speed |
40(m/s) |
Rate-limiting mode |
Hydraulic brakes, PLC control |
Dogvane |
Measurement of wind turbine angle agaist wind |
Anemoscope |
Testing real-time wind speed and then transfer the signal to controller |
height of guy cable tower |
15m(377*6)Galvanized seamless steel pipe surface, then spray antiseptic white paint. |
top quality except tower |
800kg |
Total weight(kg) |
1808kg |
output controller system |
Controller , Inverter |
|
Suggested batteries and it’s capacity |
12V 200AH 30psc (30PCS 12V200AH) |
can supply power for |
Small Village, air-condition, refrigerator, washing machine , water pump ,electric pan, color TV, lighter, fanner, charger |
