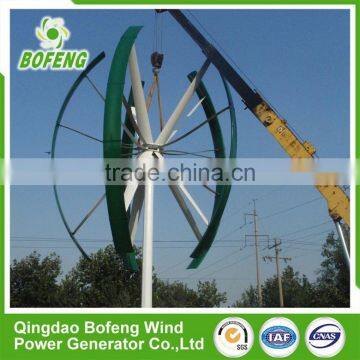

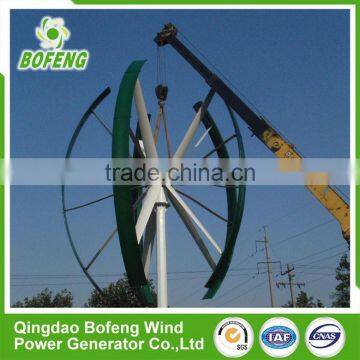

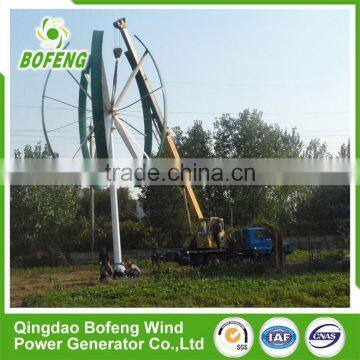

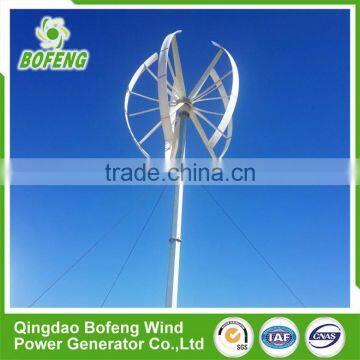

Golden Supplier Top Quality 10kw most efficient vawt wind turbine generator

Name: Golden Supplier Top Quality 10kw most efficient vawt wind turbine generator
Brand: Bofeng
Price: USD $9,900 - 15,800 / Set

FOB Price

USD $9,900 - $15,800 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Shandong, China	Brand Name:	Bofeng	Model Number:	BF-H-10KW
Type:	Wind Power Generator

Product Description

Golden Supplier Top Quality 10kw most efficient vawt wind turbine generator

Wind turbine blades:

We utilize high strength glass fibre reinforced plastic and epoxy resin to make blade. The wind rotor operate well(stably and quietly). This kind of new aerofoil is elaborately designed by aerodynamicand hydromechanical specialists (experts). It start-up wind speed (or cut-in wind speed) is very low, and the wind energy (rotor power) coefficient is very high.

Whole machine:

It is made up of steel precision casting. It is widely used in air temperature: -30°C- 60°C, high humidity, karaburan and salt mist (in some atrocious weather). It has high reliability. BF series small VAWT, whose appearance is beautiful, installation is easy. You can enjoy the clean(green) energy, at the same time, you will see a beautiful scenery.

10KW VAWT Techincal Data

Power(w)	10000	Rated wind speed (m/s)	11
Rotor diameter(m)	6	Start-up wind speed (m/s)	3.8
Height of blade(m)	5.5	Range of working wind speed(m/s)	3.8-25
Material of blades and numbers	Glass Fiber Reinforced Plastic/5	Survival wind speed (m/s)	50
Rated rotor speed (m/s)	100r/min	Output Voltage	AC3600V
Speed regulation method	Electromagnetic control	Stop method	Electromagnetic brake
Wind energy utilized efficient	30%-40%	Sweep wind area	28.26m2
Range of working temperature	-45°C-60°C	Suggested supporting battery	30pcs12v200ah
Top weight (kg)	1460kg	Tower type and height	Free standing tower/10m

10KW PMG Techincal Data

Generator:

It is made up of the superior high strength permanent magnetic material. The volume is small and the weight is light, the generating electricity coefficient is high. The generator specialist (expert) use special electromagnetic technology to make the generator have extremely low start-up drag torque, which can make sure the VAWT start-up in the gentle breeze.The generating electricity coefficient, start-up performance and overspeed overload capacity of generator are all in leading position in this field.

(W)Rated out power	10KW
(RPM)Rated Rotation Speed	100
(A)Recified DC current at Rated Output	30
(N.M)Requied Torque Ar Rated Power	<321
(Ohms)Phase Resistance	18
(mm)Output Wire Square Section	80
Insultation:	H
Generator configuration	Three phase star conected output
Design Lifetime:	>20 Year
(Kgs)Weight	400
(NM)Starting Torque	≤16
Bearing Type:	High standard NSK Bearing
Shaft Material	High standard Stainless steel
Outer Frame Material	spheroidal-graphite cast iron
Fasteners(nuts and bolts)	High standard Stainless steel
Winding Temperature Rating:	180 Degarees Celsius

BOFENG 10KW Noisy Emission Level

10KW Controller

Product Model	10Kw
Rated Battery Voltage	360V
Rated Wind Turbine Input Power	10kW
Maximum Wind Turbine Input Power	15kW
Wind Turbine Brake Current	27A
Rated Solar Input Power	3kW
Floating Charging Voltage	435V
Display Mode	LCD
Quiescent Current	≤20mA
Ambient Temperature & Humidity	-20~+55°C/35~85%RH(Without Condensation)
Temperature Compensation Function (Optional)	-4mV/°C/2V ,–35°C--+80°C ,Precision:±1°C
Dimension(L×W×H)	Controller Box: 440×300×170mm ; Dumpload Box: 520×430×675mm
Net Weight	Controller Box:9kg ; Dumpload Box: 25kg
In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement.

10KW Inverter

Rated Output Capacity	10kVA
Rated Battery Voltage	360VDC
Over Voltage Shutoff	538VDC
Over Voltage Recovery	522VDC
Under Voltage Shutoff	342VDC
Under Voltage Recovery	380VDC
Output Wave	Pure sine Wave
Display Mode	LCD
Cooling	Fan
Rated Output Voltage	220VAC
Wave Distortion	≤4%
Dimensions (Lx W x H)	500 x 500 x 1100mm
Net Weight	130kg
In order to serve our customers better, our company can adjust parameter configuration according to customer’s requirement.

1.Utilize a new aerofoil vertical axis wind wheel and magnetic suspention structure

2.The start-up wind speed is very low

3.The wind energy coefficient is very high

4.The anti-wind capability is high

5.The weight of generator is very light

6.Operation is stable

7.Have no noise

8.With careful anti-corrosion treatment and good sealing

9.Maintenace free

10.Long service life
