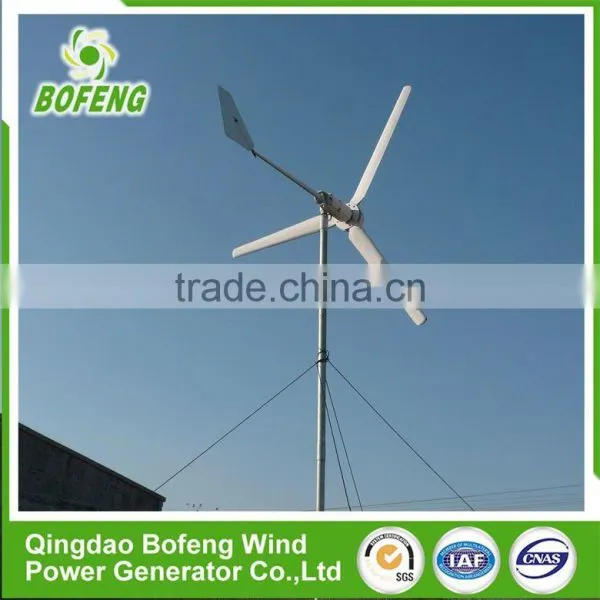

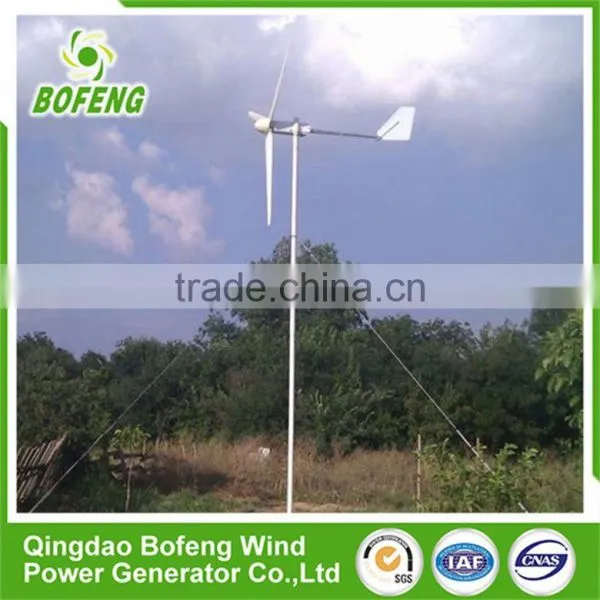

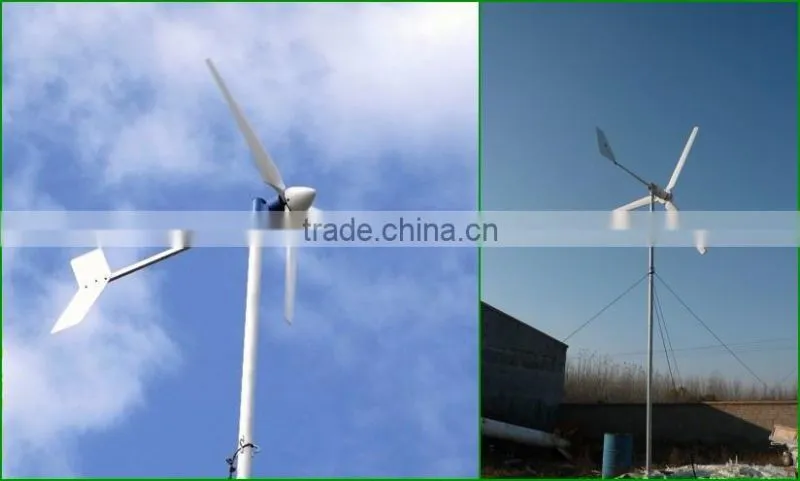

Factory Price Durable 1KW wind power horizontal axis wind turbine price
Our company seeks survival by quality, and seeks development with technique. Through several years of development, our company has become a company which has a unique management system in the field of wind power industry. In order to win in the competition, our company formed an organic whole-service system which includes design, manufacture, installation, debugging, marketing, and after-sale service.
BF-1kw Horizontal Axis Wind Turbine Parts Quotations | |||
Picture | Project | Performance index | Price (USD) |
| Wind generator and blades | 1000w | 660 |
Controllor | Off grid 1kw | 190 | |
Inverter | 1kw | 202 | |
Guy cable tower | 8m | 66 | |
Battery | 4pcs200ah | 460 | |
Total Price USD EXW | 1578 | ||

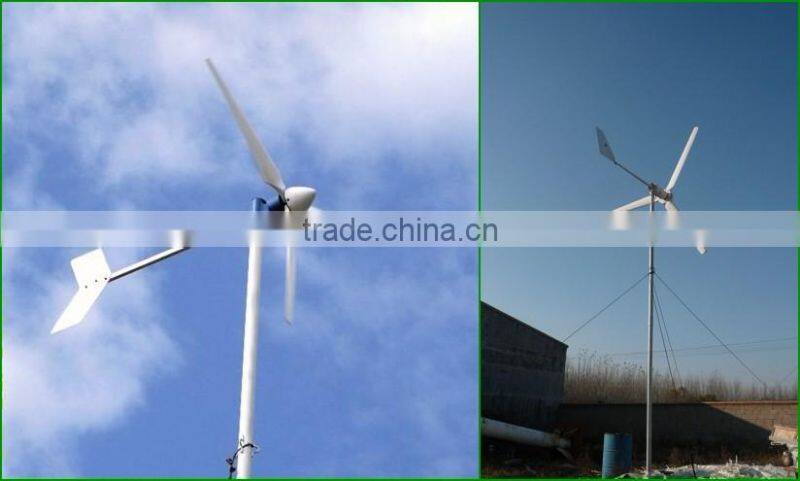

1kw HAWT techincal data | |||
Power(w) | 1000 | Rated wind speed(m/s) | 10 |
Rotor diameter(m) | 3 | Start-up wind speed(m/s) | 3 |
Height of blade(m) | 1.4 | Range of working wind speed(m/s) | 3-25 |
Material of blades and numbers | Glass Fiber Reinforced Plastic/3 | Survival wind speed(m/s) | 50 |
Rated rotor speed(m/s) | 400r/min | Output Voltage | AC24/48V |
Speed regulation method | Electromagnetic control | Stop method | Electromagnetic brake |
Wind energy utilized efficient | 30%-40% | Sweep wind area | 12.56m2 |
Range of working temperature | -45°C-60°C | Suggested supporting battery | 4pcs12v100ah |
Top weight (kg) | 76kg | Tower type and height | tower/8m |

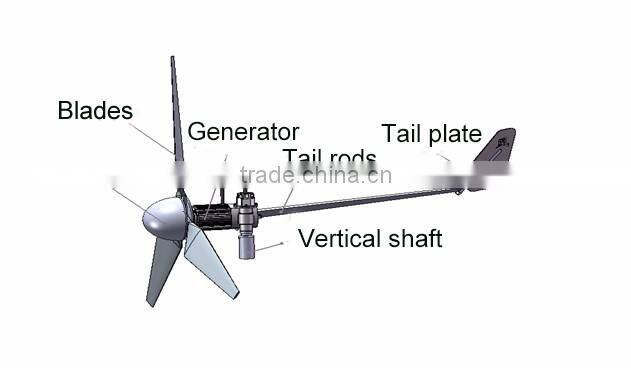

Related Parts

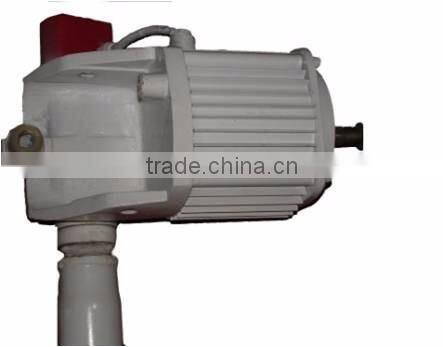

♦Generator
| Type of generator: Permanent-magnet 3- phase A.C Stator: Silicon steel sheet Magnet steel: NdFeB Wire package: Copper wire Net weight: 35KGS |

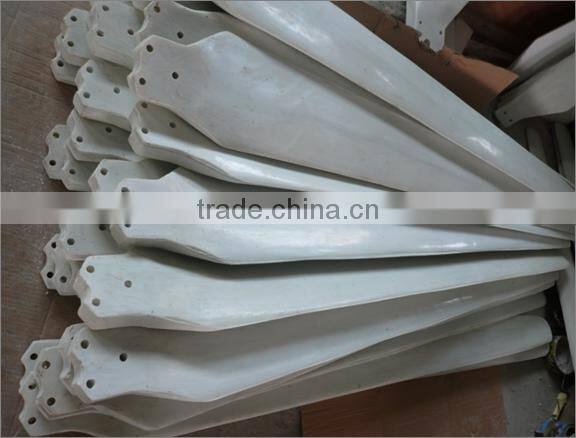

| Material: FRP (Fiber glass reinforced*3) Diameter of wind wheel: 3.0M Rated speed (rpm):400 Rated wind speed:8 M/S Starte up wind speed: 3 M/S Net weight:7KGS |

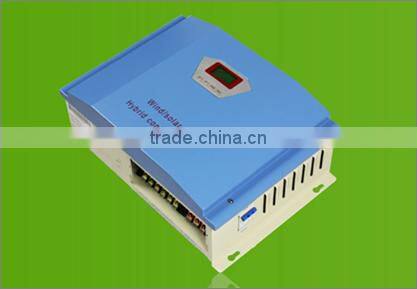

♦1KW Controllor
Product Model | 1Kw |
Rated Battery Voltage | 48V |
Rated Wind Turbine Maximum Power | 2kW |
Rated Wind Turbine Maximum Input current | 50A |
Rated Wind Turbine Maximum instantaneous Input power | 2KW |
Unload Voltage( factory default) | 56V |
Unload Current( factory default) | 60A |
Rated PV Power | 600W |
Control Mode | PWM |
Display Mode | LCD |
Display Parameters | Battery Voltage, Wind Turbine Voltage, PV Voltage, Wind Turbine Current, PV Current, Wind Turbine Power, PV Power .Etc |
Range of working Temperature &Humidity | -20~+55°C/35~85%RH(Without Condensation) |
Quiescent Current | ≤30mA |
In order to serve our customers better.Our company can adjust parameters configuration according to customer’s requirement. | |

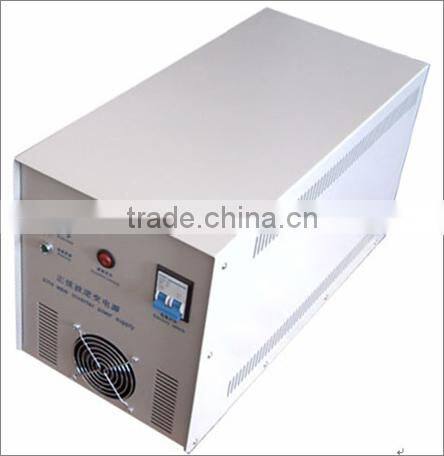

♦1KW Inverter
Rated Output Capacity | 1kVA |
Rated Battery Voltage | 48VDC |
Rated Output Capacity | 1kVA |
Over Voltage Shutoff | 68VDC |
Over Voltage Recovery | 66VDC |
Under Voltage Shutoff | 42VDC |
Under Voltage Recovery | 48VDC |
No Load Loss | 0.72A |
Output Wave Form | Pure Sine Wave |
Display Mode | LCD |
Display parameters | Battery Voltage, State parameters |
Cooling Mode | Fan |
Rated Output Voltage | 220 VAC |
In order to serve our customers better, our company can adjust parameter configuration according to customer’s requirement. | |
1. Provide professional wind turbine technical support;
2. Provide on/off grid system design, wind solar hybrid system design service;
3. Completely system provider and designer;
4. Wind turbine type, model, capacity selection professional support;
5. Tower design, foundation drawing support;
6. Provide Pma, hub, flange drawing;
7. Provide OEM service, customized service;
8. Support paypal /west union payment, TT payment;
