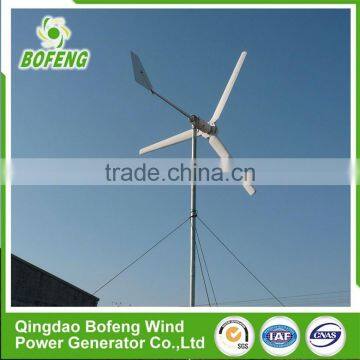

Reliable Quality Energy-Saving 1KW horizontal axis wind turbine price small
Our company seeks survival by quality, and seeks development with technique. Through several years of development, our company has become a company which has a unique management system in the field of wind power industry. In order to win in the competition, our company formed an organic whole-service system which includes design, manufacture, installation, debugging, marketing, and after-sale service.
BF-1kw Horizontal Axis Wind Turbine Parts Quotations | |||
Picture |
Project |
Performance index |
Price (USD) |
|
Wind generator and blades |
1000w |
660 |
Controllor |
Off grid 1kw |
190 |
|
Inverter |
1kw |
202 |
|
Guy cable tower |
8m |
66 |
|
Battery |
4pcs200ah |
460 |
|
Total Price USD EXW |
1578 |
||
1kw HAWT techincal data | |||
Power(w) |
1000 |
Rated wind speed(m/s) |
10 |
Rotor diameter(m) |
3 |
Start-up wind speed(m/s) |
3 |
Height of blade(m) |
1.4 |
Range of working wind speed(m/s) |
3-25 |
Material of blades and numbers |
Glass Fiber Reinforced Plastic/3 |
Survival wind speed(m/s) |
50 |
Rated rotor speed(m/s) |
400r/min |
Output Voltage |
AC24/48V |
Speed regulation method |
Electromagnetic control |
Stop method |
Electromagnetic brake |
Wind energy utilized efficient |
30%-40% |
Sweep wind area |
12.56m2 |
Range of working temperature |
-45°C-60°C |
Suggested supporting battery |
4pcs12v100ah |
Top weight (kg) |
76kg |
Tower type and height |
tower/8m |
Related Parts
♦Generator
|
Type of generator: Permanent-magnet 3- phase A.C
Stator: Silicon steel sheet
Magnet steel: NdFeB
Wire package: Copper wire
Net weight: 35KGS
|
|
Material: FRP (Fiber glass reinforced*3) Diameter of wind wheel: 3.0M
Rated speed (rpm):400
Rated wind speed:8 M/S
Starte up wind speed: 3 M/S
Net weight:7KGS
|
♦1KW Controllor
Product Model |
1Kw |
Rated Battery Voltage |
48V |
Rated Wind Turbine Maximum Power |
2kW |
Rated Wind Turbine Maximum Input current |
50A |
Rated Wind Turbine Maximum instantaneous Input power |
2KW |
Unload Voltage( factory default) |
56V |
Unload Current( factory default) |
60A |
Rated PV Power |
600W |
Control Mode |
PWM |
Display Mode |
LCD |
Display Parameters |
Battery Voltage, Wind Turbine Voltage, PV Voltage, Wind Turbine Current, PV Current, Wind Turbine Power, PV Power .Etc |
Range of working Temperature &Humidity |
-20~+55°C/35~85%RH(Without Condensation) |
Quiescent Current |
≤30mA |
In order to serve our customers better.Our company can adjust parameters configuration according to customer’s requirement. | |
♦1KW Inverter
Rated Output Capacity |
1kVA |
Rated Battery Voltage |
48VDC |
Rated Output Capacity |
1kVA |
Over Voltage Shutoff |
68VDC |
Over Voltage Recovery |
66VDC |
Under Voltage Shutoff |
42VDC |
Under Voltage Recovery |
48VDC |
No Load Loss |
0.72A |
Output Wave Form |
Pure Sine Wave |
Display Mode |
LCD |
Display parameters |
Battery Voltage, State parameters |
Cooling Mode |
Fan |
Rated Output Voltage |
220 VAC |
In order to serve our customers better, our company can adjust parameter configuration according to customer’s requirement. | |
1. Provide professional wind turbine technical support;
2. Provide on/off grid system design, wind solar hybrid system design service;
3. Completely system provider and designer;
4. Wind turbine type, model, capacity selection professional support;
5. Tower design, foundation drawing support;
6. Provide Pma, hub, flange drawing;
7. Provide OEM service, customized service;
8. Support paypal /west union payment, TT payment;
