Supplier Stability Durable 300w vawt wind turbine generator turbine
Wind turbine blades:
We utilize high strength glass fibre reinforced plastic and epoxy resin to make blade. The wind rotor operate well(stably and quietly). This kind of new aerofoil is elaborately designed by aerodynamicand hydromechanical specialists (experts). It start-up wind speed (or cut-in wind speed) is very low, and the wind energy (rotor power) coefficient is very high.
Whole machine:
It is made up of steel precision casting. It is widely used in air temperature: -30°C- 60°C, high humidity, karaburan and salt mist (in some atrocious weather). It has high reliability. BF series small VAWT, whose appearance is beautiful, installation is easy. You can enjoy the clean(green) energy, at the same time, you will see a beautiful scenery.
300W VAWT Techincal Data
Power(w) | 300 | Rated wind speed (m/s) | 11 |
Rotor diameter(m) | 1.3 | Start-up wind speed (m/s) | 1.8 |
Height of blade(m) | 1.6 | Range of working wind speed(m/s) | 1.8-25 |
Material of blades and numbers | Glass Fiber Reinforced Plastic/5 | Survival wind speed (m/s) | 50 |
Rated rotor speed (m/s) | 200r/min | Output Voltage | AC12/24V |
Speed regulation method | Electromagnetic control | Stop method | Electromagnetic brake |
Wind energy utilized efficient | 30%-40% | Sweep wind area | 2.08m2 |
Range of working temperature | -45°C-60°C | Suggested supporting battery | 2pcs12v150ah |
Top weight (kg) | 70kg | Tower type and height | Tower/8m |

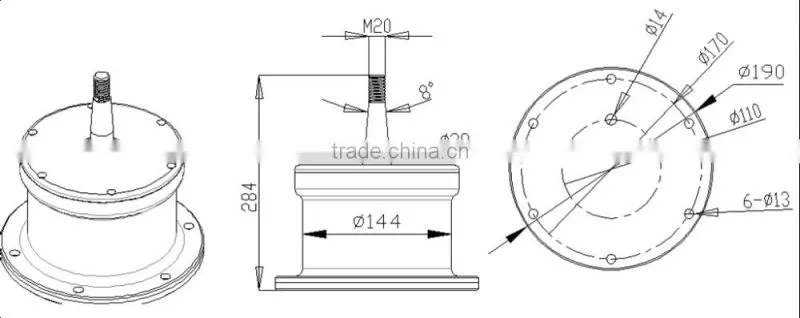

300W PMG Techincal Data
Generator:
It is made up of the superior high strength permanent magnetic material. The volume is small and the weight is light, the generating electricity coefficient is high. The generator specialist (expert) use special electromagnetic technology to make the generator have extremely low start-up drag torque, which can make sure the VAWT start-up in the gentle breeze.The generating electricity coefficient, start-up performance and overspeed overload capacity of generator are all in leading position in this field.
(W)Rated out power | 300 |
(RPM)Rated Rotation Speed | 200 |
(A)Recified DC current at Rated Output | 20 |
(N.M)Requied Torque Ar Rated Power | <2.6 |
(Ohms)Phase Resistance | 4.8 |
(mm)Output Wire Square Section | 80 |
Insultation: | F |
Generator configuration | Three phase star conected output |
Design Lifetime: | >20 Year |
(Kgs)Weight | 17 |
(NM)Starting Torque | ≤2.6 |
Bearing Type: | High standard NSK Bearing |
Shaft Material | High standard Stainless steel |
Outer Frame Material | spheroidal-graphite cast iron |
Fasteners(nuts and bolts) | High standard Stainless steel |
Winding Temperature Rating: | 180 Degarees Celsius |
300W Wind Power Generator Curve
BOFENG 300W Noisy Emission Level
1.Utilize a new aerofoil vertical axis wind wheel and magnetic suspention structure
2.The start-up wind speed is very low
3.The wind energy coefficient is very high
4.The anti-wind capability is high
5.The weight of generator is very light
6.Operation is stable
7.Have no noise
8.With careful anti-corrosion treatment and good sealing
9.Maintenace free
10.Long service life
