Help CenterLow Price Cement Mill Plant Coal Clinker Grinding Machine
Related Products
-
Mining Pulverizing Mill MachineryUS$ 20,000 - 250,000MOQ: 1 Set -
2017 Grinding Mill Machine Supplier of Powder Making Equipment PlantUS$ 10,000 - 600,000MOQ: 1 Set
-
2017 Raymond Mill Equipment With High Efficiency Grinding Machine for Powder PlantUS$ 40,000 - 80,000MOQ: 1 Set
-
Cheap Raymond Mill Machine for Powder Grinder and PulverizerUS$ 10,000 - 500,000MOQ: 1 Set
-
Powder Making Machine Stone Pulverizer Equipment Raymond MillUS$ 10,000 - 500,000MOQ: 1 Set
Raymond Mill/Grinding Mill/Ultrafine Mill---China No.1 +3000 Case Plants in China
Application of low price cement mill plant coal clinker grinding machine

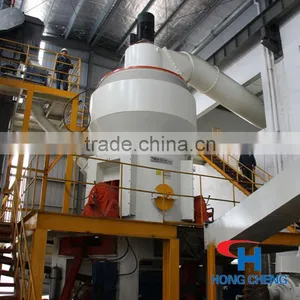

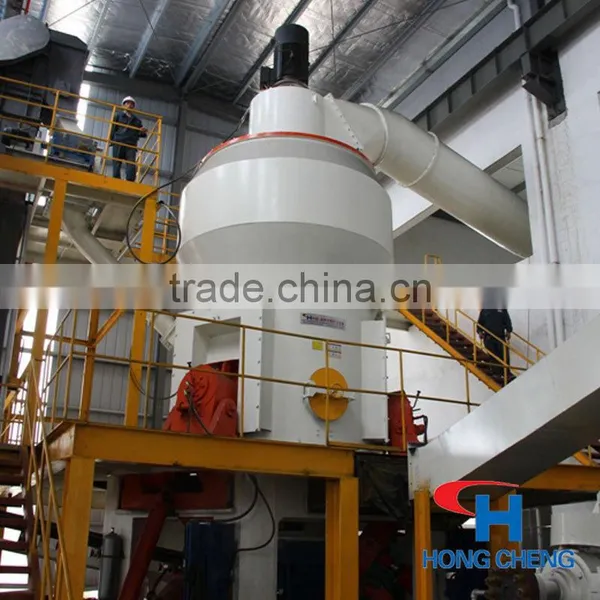

HLM series Vertical Roller Mill: with two decades of R&D and introduction of foreign advanced technology, the HLM vertical mill comes into being, featuring in a combination of drying, grinding, classifying and conveying.
HongCheng HLM vertical mill has the following advantages: efficient grinding, lower power consumption, larger feeding size, adjustable fineness, simple process flow, space-saving, lower noise, no air pollution, easy maintenance, lower operation cost, longer working life of wearing parts etc.. HLM vertical mill is widely used in power, metallurgical, cement, chemical and non-metallic industry, such as cement raw material, clinker, limestone, slag, manganese, gypsum, coal, barite, calcite etc.
HC-series Raymond Roller Mill is a kind of newly-designed roller-type mill, featuring in higher efficiency, lower power consumption and much better performance than traditional raymond mill. This mill is widely used to grind any non-metallic minerals with Mohs hardness below 7 and moisture below 6%, such as limestone, calcite, activated carbon, talc, dolomite, titanium dioxide, quartz, bauxite, marble, feldspar, barite, fluorite, gypsum, ilmenite, phosphorite, clay, graphite, kaolin, diabase, gangue, wollastonite, quick lime, silicon carbide,bentonite, manganese. The fineness can be adjusted from 0.18mm(80 mesh) to 0.022mm(600 mesh), whose range is much wider than that of traditional raymond mill.
Working Principles of low price cement mill plant coal clinker grinding machine:
HLM vertical roller mill working principle:
The centrifugal force generated by the rotating table driven by the reducer make the raw material goes between the roller and grinding table. The raw material is ground at the force of crushing, grinding and shearing. The air flow from the fan makes the pulverized powder goes up. Through the classifier, the coarse powder falls down onto the table for regrinding and the finer powder with the air flow goes into the pulse-jet collector. The finer powder is collected in the pulse-jet collector. And the clean air goes out from the pulse jet collector.
HC-series raymond roller mill working principle:
Firstly, raw material is crushed by jaw crusher to the required size, which is lifted up to the hopper. Secondly, the raw material goes into the grinding chamber through the electro-magnetic vibrating feeder at an even rate. Thirdly, the raw material lifted by the shovel is ground into powder between the ring and roller. Fourthly, the powder is blown up to the cyclone collector through the classifier, which will be collected through the discharging valve. The unneeded powder, which cannot go through the classifier, will be reground into the needed powder.
Advantages of low price cement mill plant coal clinker grinding machine :
1) The only professional producer of Raymond Mill in China.
2) Power-saving and Higher Production Capacity (1-40T/H)
3) Smooth and Reliable Performance.
4) Fineness: 80—600 Mesh (Adjustable)
5) Run for 1000 hours without Lubrication
Technical Data of low price cement mill plant coal clinker grinding machine:
HLM Vertical Roller Mill Models and Technical Data(For slag and cement Industry)
Model |
HLM1700KZ |
HLM1900KZ |
HLM2200KZ |
HLM2800KZ |
HLM3700KZ |
HLM4500KZ |
Capacity (T/H) |
10-12 |
13-15 |
22-26 |
48-55 |
90-100 |
135-150 |
Raw Material Moisture |
<12% |
|||||
|
Powder Rate of Specific Surface Area
|
≥420m2/kg |
|||||
Powder Moisture |
<1% |
|||||
(kw) Power(kw) |
400 |
500 |
800 |
1800 |
3150 |
4500 |
HC series Raymond Roller Milll Technical Data:
Model |
HC1000 |
HC1300 |
HC1460 |
HC1700 |
HC2000 |
|
|
Roller |
Number of Rollers |
3 |
4 |
4 |
5 |
5 |
Diameter(mm) |
320 |
410 |
460 |
510 |
620 |
|
Height(mm) |
200 |
230 |
250 |
250 |
250 |
|
Ring |
Inner Diameter(mm) |
970 |
1270 |
1460 |
1700 |
2000 |
Height(mm) |
200 |
210 |
250 |
250 |
250 |
|
Max. Feeding Size(mm) |
≤20 |
≤25 |
≤35 |
≤50 |
≤50 |
|
Fineness(mm) |
0.015-0.18 |
0.044-0.18 |
0.022-0.18 |
0.022-0.18 |
0.022-0.18 |
|
Total Power(kw) |
105 |
183.5/198.5 |
242 |
364 |
670 |
|
Capacity(t/h) |
1.5-6 |
3-12 |
5-15 |
6-25 |
20-45 |
|
Weight(t) |
14 |
28 |
37 |
46 |
102 |
|
The Solution of low price cement mill plant coal clinker grinding machine
