Automatic Production Line of Limestone Powder Grinding Mill Machine Supplier

Name: Automatic Production Line of Limestone Powder Grinding Mill Machine Supplier
Brand: HongCheng
Availability: InStock

FOB Price

US$ 9,999 - 999,999 / Set

1 Set(Min. Order)

Port Guangzhou/Shenzhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Raymond Mill
Motor Type	AC Motor	Power(W)	85/101kw
Capacity(t/h)	1-5.5T/H	Place of Origin	Guangxi, China
Brand Name	HongCheng	Model Number	HC1000
Dimension(LWH)	8200580010560mm	Weight	14 ton
Certification	ISO9001:2008	Warranty	One Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Introduction

Hongcheng Lime Powder Grinding Mill is a kind of newly-designed roller-type mill, featuring in higher efficiency, lower power consumption and much better performance than traditional raymond mill.

This mill is widely used to grind any non-metallic minerals with Mohs hardness below 7 and moisture below 6%, such as limestone, calcite, activated carbon, talc, dolomite,

titanium dioxide, quartz, bauxite, marble, feldspar, barite, fluorite, gypsum, ilmenite, phosphorite, clay, graphite, kaolin, diabase, gangue, wollastonite, quick lime, silicon carbide, bentonite, manganese, petroleum coke, coal etc. The fineness can be adjusted from 0.18mm (80 mesh) to 0.022mm (600 mesh), whose range is much wider than that of traditional raymond mill.

Technical Data

Model No.	Ring Diameter (mm)	Max. Feeding Size (mm)	Fineness (micron)	Capacity (t/h)	Total Power (kw)
HC1000	1000	≤15	180-22	4-5.5	85/101
HC1300	1300	≤30	180-22	7.5-9.5	165/195
HC1500	1500	≤30	180-22	11-13	242
HC1700	1700	≤30	180-22	22-25	314
HC1900	1900	≤40	180-22	32-35	455/555
HC2000	2000	≤40	180-38	41-45	637/705
HC2500	2500	≤40	180-38	55-60	1210
HC3000	3000	≤40	180-38	82-90	1732

Note 1

The capacity above is for limestone powder (200mesh D97), and the specification is just for ref. The actual production depends on these materials being processed.

Note 2

The model can be equipped with Hongcheng patented technology-the vertical pendulum structure and/or applied with Germany technology.

Features

Patent Design, Reliable Performance

New spider-arm and parallel grinding system with advanced and reasonable structure. Optional solid casting pedestal. Low vibration and noise, durable and reliable.

High Efficiency and Lower Power Consumption

30% higher capacity than traditional raymond mill, 40% higher than ball mill (under same condition). 30% power can be saved for producing one ton powder.

Easy Maintenance, Low Operation Cost

Easy replace the ring without tearing down. Multi-layer roller sealing structure, long working life, save maintenance costs.

Line Structure

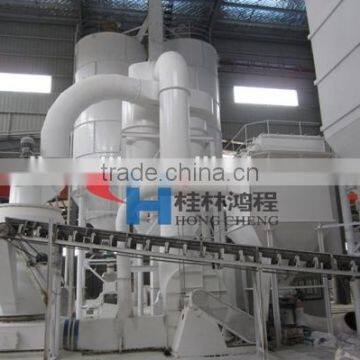

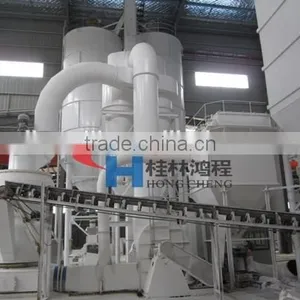

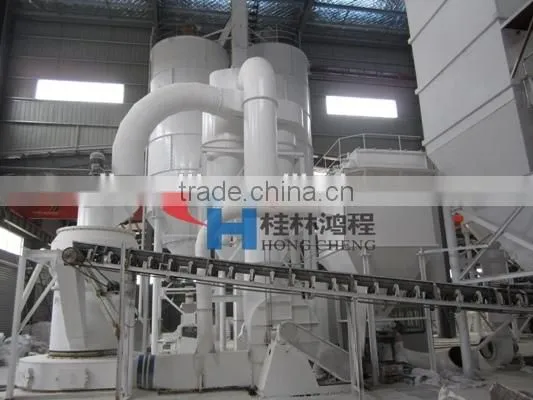

Production Line

Hongcheng HC-series, R series grinding mill production line consists of the feeding hopper, feeder, main mill(grinder), classifier, cyclone collector or pulse filter, pipes, fan blower, discharging valve and electric control cabinet.

Optional items: jaw crusher, bucket elevator, packing machines and silo. These support facilities are optional in the line, please contact Hongcheng sales if you'd like to take them together.

The Main Mill

Patent design, heavy duty, long using life.

30% higher capacity than the traditional raymond mill.

Turbine classifier with frequency converter control.

High quality final powder product. Good market profit.

Project Case

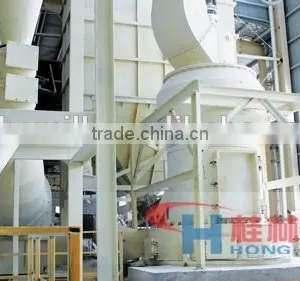

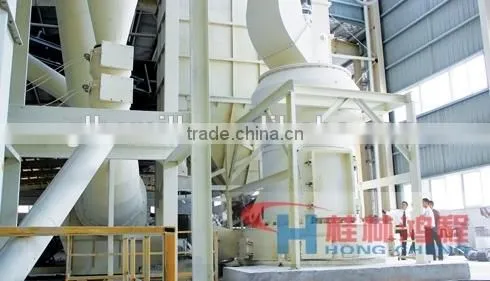

HC2000 Good Running At Site

HC2000 grinding mill line running good at client powder production plant. Good powder quality, high capacity, quick return on investment! 3000+ plants have used of Hongcheng HC and R series grinding mill for their powder processing.

Packing & Delivery

Hongcheng grinding mill is suitable for producing powder for the infrastructure, construction and powder plant, etc.
Package: export standard package. Delivery: by sea/train/truck.

Delivery logistics service: after the machines been finished production, we will provide the logistics information, arrange packing, loading, delivery notice and shipment tracking till client receive the machines.

Support & Service

Professional pre-sales and after-sales services ensure the high quality grinding mill running more smoothly and efficiently. Hongcheng has a professional, high efficiency and stable sales and service team and extensive sales and service network, which can provide our customers the most enthusiasm service and strong technical support worldwide.

Pre-sales Service

(1) Assistance in mill model selection
(2) Guidance on workshop layout and site selection
(3) Engineers to be at your place to do on-spot design and flow chart.

Mid-sales Services

(1) Perfect quality control system and strict inspection before delivery.

(2) Assistance in providing logistics and on-time delivery.

After-sales Services

(1) Engineer guidance on foundation-making.
(2) Engineer guidance on installation and testing
(3) Training in repair and maintenance.

Spare Parts

Amply supply of spare parts to meet customers’immediate needs.

About Us

Hongcheng Profile

Guilin HongCheng Mining Equipment Manufacture Co., Ltd. is a well-known company in the mineral powder making machinery industry in China. Known for its professional entrepreneurship, HongCheng has designed and made grinding mills for 30 years. With more than 20 patented technologies, HongCheng is the biggest production and export base of powder making machinery in south of China.

Core Competence

Our group holds solid technologies foundation. It consists of one research center and three separate factories. The HC-Series New Raymond Roller Mills, HLM Vertical Mills, HLMX Superfine Vertical Mills AND HCH-Series Ultrafine Mills are the most popular machines in the market. Our managing mission is helping to create the maximum value for our clients by our quality and service. We are not only manufacturing and selling powder making machines, but most important to provide the a complete set of powder production solution for our customer to support their success from our testing research, proposal designing, machine manufacturing and delivery, construction organizing, after-sales service, parts providing, and operation training, etc.

Main Filed of Service

Hongcheng’s grinding mills have enjoyed the good reputation and widely used in infrastructure, mineral deep processing, solid waste circulation utilization, energy conservation and emission reduction, metallurgy, construction, chemical and power industry, etc. You will see of Hongcheng is the first choice not only in big non-metallic mineral powdering plant, superphosphate processing filed, environmental desulfurization limestone preparation, but also in the coal processing, petroleum coke powder industry, etc.
