Original Manufacturer Waste Straw Pellet Machine With Low Price

Name: Original Manufacturer Waste Straw Pellet Machine With Low Price
Brand: TONY
Price: USD $800 - 30,000 / Set

FOB Price

USD $800 - $30,000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Qingdao Port
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Place of Origin:	Shandong, China	Brand Name:	TONY
Model Number:	TYJ680-II	Voltage:	Customized for pellet machine	Power(W):	160kw
Dimension(LWH):	215011801950MM	Weight:	6T pellet machine	Certification:	CE ISO SGS
Warranty:	1 Year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Types of pellet machine:
1. Ring Die pellet machine
a. pellet mill machine with big gear driver
b. pellet mill machine with reducer driver
2. Flat Die pellet machine
a. pellet mill machine with elevtric motor engine
b. pellet mill machine with diesel engine
c. pellet mill machine with tractor engine

If you have any questions about pellet mill machine and related machines, do not hesitate, please contact me --------

Ms.Vivian

Email: pelletmill06 AT

Mob/whatsapp: +86 18766193588

Main Features of Biomass Wood Pellet Machine

1.Automatic lubrication system for the rollers and spindles which can reach the machines run 20 hours without resting.High tempreture/pressure,and low temporeture/pressure warning and automatic lubrication.
-----Other suppliers did not have this system,they have to lubricate each working time for about 8hours.
2. Big gear Transmission for easy operation and lower maintenance.Two big gears,each weight is more than 1.3ton.
-----Other suppliers all use the reducer transmission,which is easy to break,and higher maintenance.
3. 4 rollers working, increasing press rate and capacity.
-----Other suppliers all use the 2 rollers.
4. Double layers ring die type, longer working lifetime.

Tech Datas of Ring Die Pellet Machine With Big Gear Driver
Model	Power(KW)	Capacity(T/h)	Weight(T)	Size(mm)
TYJ450-II	55	0.8-1.2	2	13508501500
TYJ550-II	110	1.5-2	4	185010501800
TYJ680-II	160	2-2.5	6	215011801950
TYJ860-II	220	2.5-3.5	8	243013802100
TYJ980-II	315	3.5-5	12	280015002500

Tech Datas of Another Ring Die Pellet Machine With Reducer Driver
Model	Power(KW)	Capacity(T/h)	Weight(T)	Size(mm)
TYJ560-II	90	1-1.5	6.1	260013002300
TYJ720-II	160	1.5-2.5	7	290013002400
TYJ850-II	220	2.5-3.5	14.5	330014003100
TYJ920-II	315	3.5-5	18	380016803400
TYJ1050-II	360-450	5-6	23	440018503700
TYJ1250-II	550-660	7-8	29	510020004050

Certifications

Detailed Images

Ring Die of Pellet Machine

Original: Germany

1. Made of alloy and stainless steel;
2. The professional heat treatment processing technology can make its hardness above HRC62.
3. Vertical Ring die, feeding vertically.
4. Double-lay die, dual use. When one side is damaged, turn over and use the other side.

Roller of Pellet Machine

Original: China

Die fixed, rollers running, materials centrifugal and evenly distributed around. Large capacity.

Motor of Pellet Machine

Original: China/Germany

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits.
Rated Vlotage: 380V, Rated Frequency: 50HZ,
Also made according to user need.
400V, 415V, 420V, 440V, 690V.etc.

Automatic Lubrication System

Original: China

1..Automatic lubricatin system for Spindle

2..Automatic lubricatin system for Roller: it can keep the pellet machine in maintenance for 24hours

Pellet Show

Requirements for raw materials of pellet machine

Raw material: wood, waste wood and straws, etc. such as woodchips(palm, pine white pine, mahogany, pinus sylvestris, rubber tree), bamboo shavings, rice hust, seeds shells, peanut shells, halm, pennisetum, wheat straw, corn stalk, cotton stalks, alfalfa grass, bagrass, palm fiber, waste paper, non-physical material

Size: Less than 5mm (All the raw materials must be crushed into sawdust before going to wood pellet machine.If not, you may need a wood chipper, wood crusher.)

Moisture: Generally, 10-15% is best for producing good quality wood pellet.

Packing & Delivery

Packaging Of Pellet Making Machine
Size	1900 (L) * 1100 (W) * 1800(D)
Weight	4T
Packaging Details	The normal package is wooden box(Size: 1900L1100W1800H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Our Company

ZHANGQIU TONY MADE MACHINERY CO., LTD is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mills, feed pellet mills, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.

TONY has agents in Germany, France, Serbia, Italy, Bulgaria, Thailand, Malaysia, Vietnam, Croatia, Serbia who can supply machines timely with competitive price and also do better after-sales service.

Our Service

Pre-sales Service
1)Sales person,project manager,technology engineer,accountant staff
2)Professional responsing-team:would be very fast and exactly to send you offer
3)Fastly delivery
4)Technology knowledge share
5)Any other machines (we havn't) help customer finding without any benefit

After-sales Service
1)Assistance to bulid factory
2)Repairing and maintenance if any problem occur in the warranty
3)Installation and clerks training
4)Spare and wearing parts for free or with big discount
5)Any feedback of machines can be told us, and we will try our best to support you

Complete Biomass Pellet Line

96.8% Response Rate

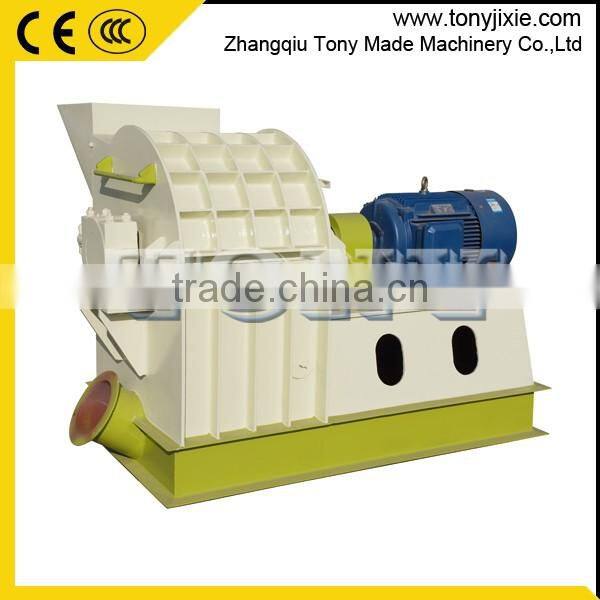

Wood Straw Crusher Grinder
