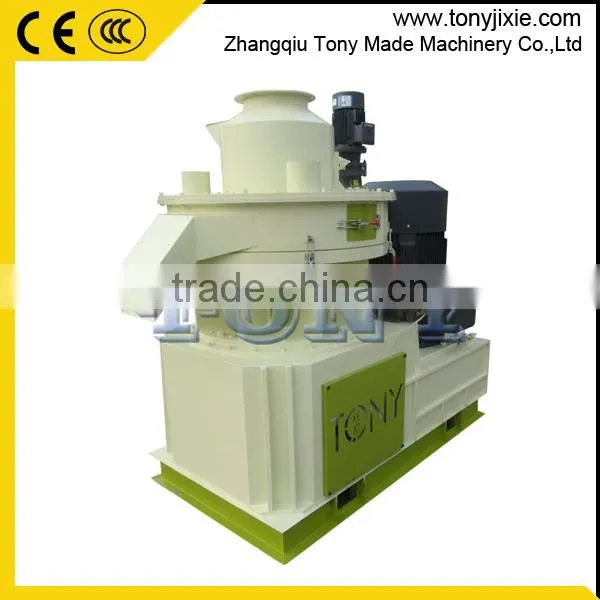

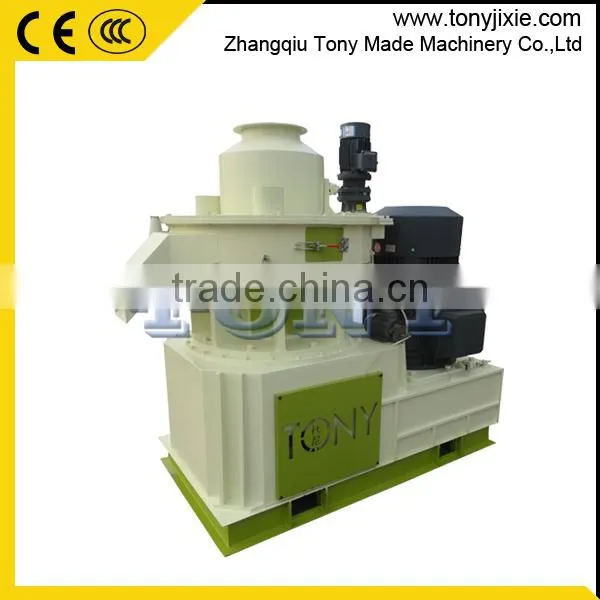

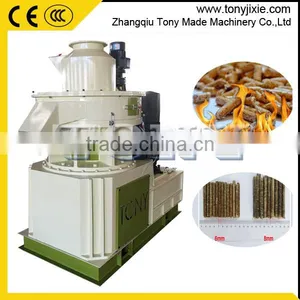

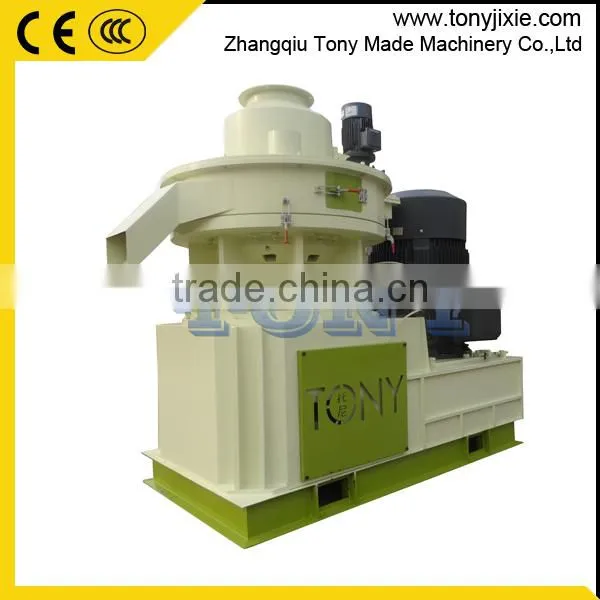

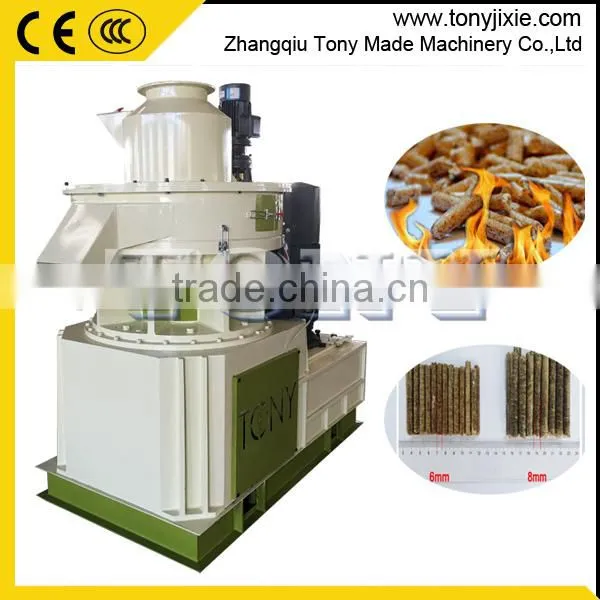

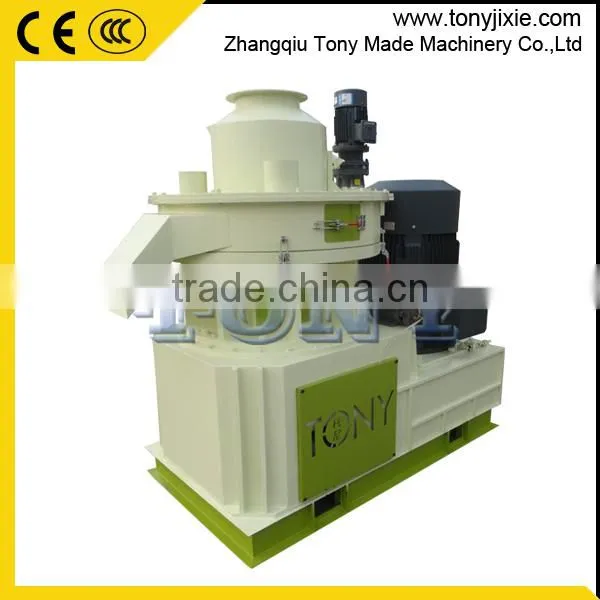

Hot Sale Ring Die Sawdust Pellet Machine

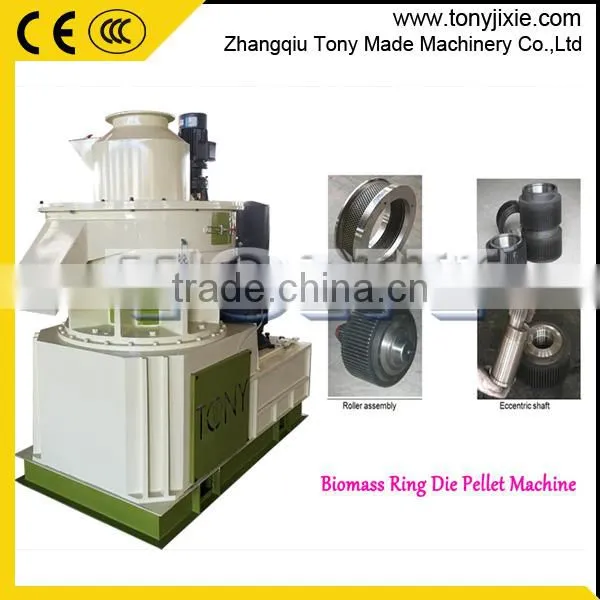

Introduction of Ring Die Biomass Pellet Machine

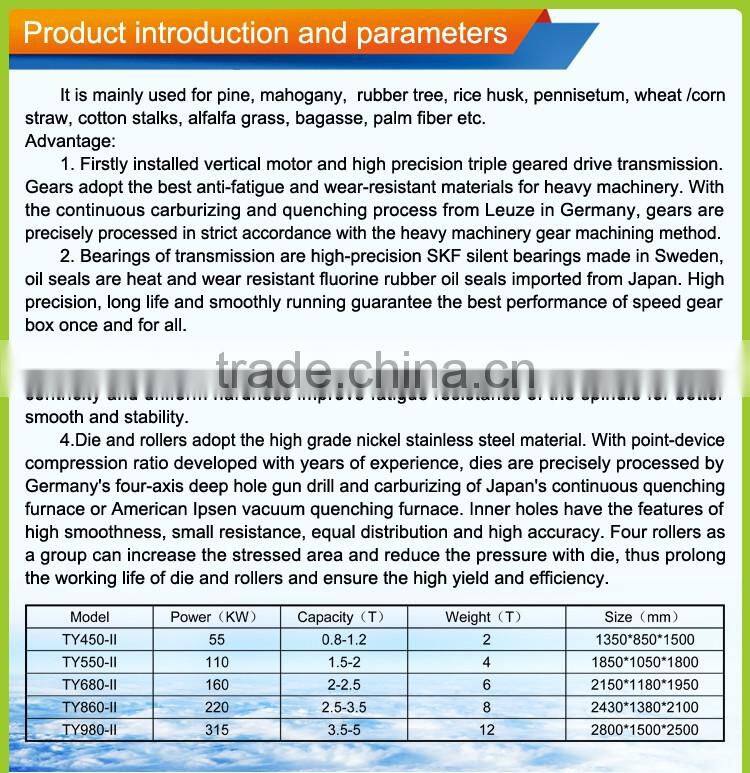

Technical parameters of wood pellet machine with big gear driver
Model | Power(KW) | Capacity(T) | Weight(T) | Size(mm) | Remark |
TYJ450-II | 55 | 0.8-1.2 | 2 | 1350*850*1500 | Gear Transmission |
TYJ550-II | 110 | 1.5-2 | 4 | 1850*1050*1800 | |
TYJ680-II | 160 | 2-2.5 | 6 | 2150*1180*1950 | |
TYJ860-II | 220 | 2.5-3.5 | 8 | 2430*1380*2100 | |
TYJ980-II | 315 | 3.5-5 | 12 | 2800*1500*2500
|
Technical parameters of other wood pellet machine with reducer driver
Model | Power(KW) | Capacity(T) | Weight(T) | Size(mm) | Remark |
TYJ560-II | 90 | 1-1.5 | 2 | 1350*850*1500 | Reducer Transmission |
TYJ720-II | 160 | 1.5-2.5 | 4 | 1850*1050*1800 | |
TYJ850-II | 220 | 2.5-3.5 | 6 | 2150*1180*1950 | |
TYJ920-II | 315 | 3.5-5 | 8 | 2430*1380*2100 | |
TYJ1050-II | 360-450 | 5-6 | 12 | 2800*1500*2500 | |
TYJ1250-II | 550-660 | 7-8 | 12 | 2800*1500*2500 |

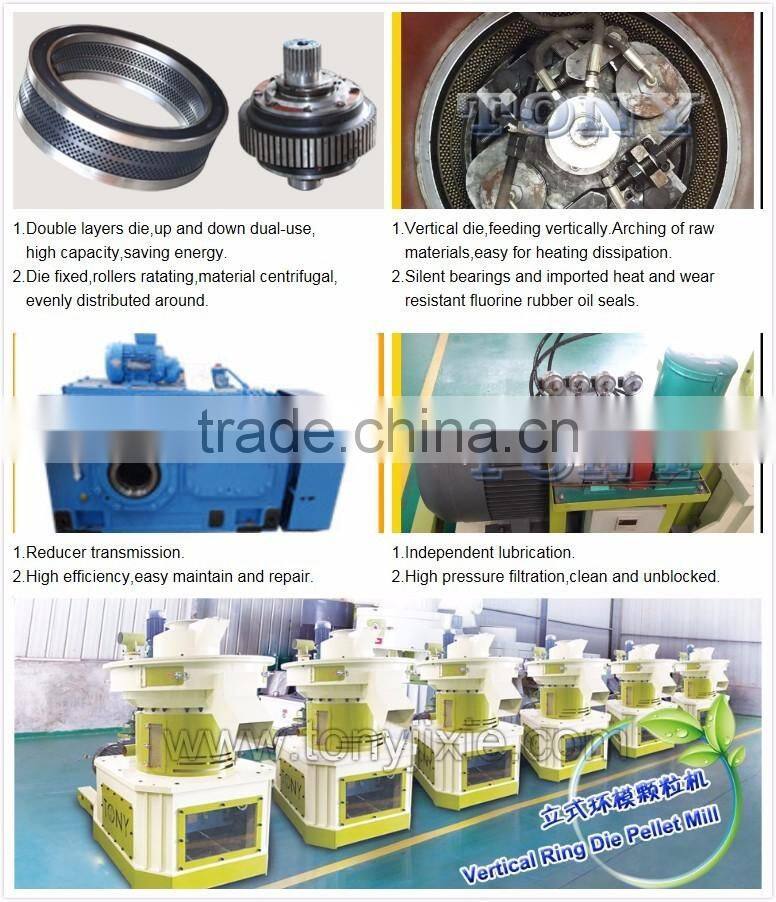

Featurers Of The Biomass Ring Die Wood Pellet Mill Machine
Characteristic Vertical Ring Die wood pellet press machine | ||
1 | Rollers | Be made of alloy steel and stainless steel with longer service time |
2 | Ring Die | Double layers with longer service time |
3 | Main Shaft | Be forged three times by traditional handcraft to reach best toughness and hardness, not easy to broken. |
4 | Vertical motor | working vertically; Mounting hole is centered with shaft and equally distributed, offering more power and working stability for the pellet machine. |
5 | Driving method | drived by gear,not reduction box; Gear driving is helpful to increase the usage life of gear, so the maintenance rata of gear is much lower. |
6 | Working method | pressing from the inside to outside, centrifugal force with eatrusion |
7 | Automatic lubrication | A.Spindle automatic lubricatin system |
8 | Vertical feeding, directly in place; Die is static, rollers rotary
| |

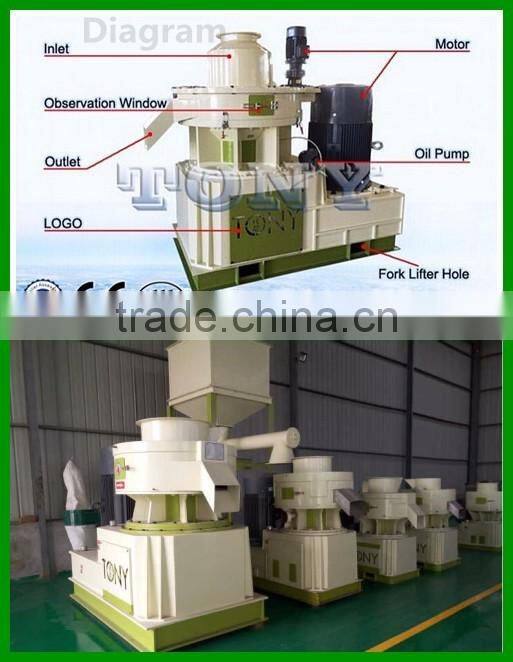

More Details About Vertical Biomass Ring Die Pellet Mill Machine:
| CE ISO Vertical Ring Die Pellet Machine(TYJ Series) |
Pellet Mill Style | -With Standard or anti-arching Feeder |
Optional Extras | -Screw feeder with anti-arching machanism |
Features | -CE&ISO&SGS |
MOQ | 1 set |
Packing Details | wood case or wood pellet etc. |
Warranty | 1 year |
Payment | L/C.T/T.Western Union |

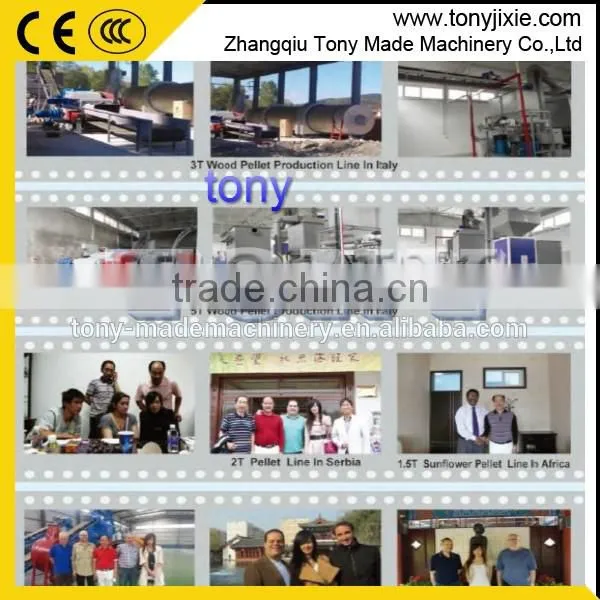

Successful Experiences Oversea | Our products have been exported to lots of Europe,South America,Southeast Asia |
Raw Materials For Biomass Ring Die Pellet Mill Machine
Pellet mill machine used to produce biomass pellets from the materials.such as wood,wood chips,pine,mahogany,rubber tree,rice husk,pennisetum,rn straw,cotton stalks,alfalfa grass,bagasse,palm fiber,non-phusical materials,etc.
Size:Less than 5mm(All the raw materials must be crushed into sawdust before going to wood pellet
press machine,If not,you may need a wood chipper,wood crusher)
Moisture:Generally,10-15% is best for producing good quality pellet.
ZHANGQIU TONY MADE MACHINERY CO., LTD is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mills, feed pellet mills, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.
TONY has agents in Germany, France, Serbia, Italy, Bulgaria, Thailand, Malaysia, Vietnam, Croatia, Serbia who can supply machines timely with competitive price and also do better after-sales service.
Our Main products as following
1. The SKJ Series flat die pellet mill with the volume 100kg to 4T per hour.
2. TheTY Series ring die pellet mill with the volume 800kg to 5T per hour.
3. The SKJD Series Pellet Mill with Diesel Engine with the volume 100kg to 400kg per hour.
4. The SKJT Series Pellet Mill with Tractor Engine with the volume 80kg to 400kg per hour.
5. Hammer Mill
6. Wood crusher
7. Wood chipper
8. Drum dryer
9. Packing machine
10. Whole pellet production line from the volume 0.5 ton to 20 ton per hour.
General Terms And Conditions Of Pellet Mill Machine
| FOB Qingdao Port,China |
Payment | 35% T/T in advance,65% balance payment after inspection before shipping. |
Delivery Time | In 30 days after receiving the confirmed order and down payment. |
Packing&Shipping | Proper packing for each unit and shippped by containers. |
Warranty | 12 months for each unit after receiving except wear parts. |
Price Validity | 20 days from the data above,there after submit to our confirmation. |
Service Option | Engineers are available for oversea technical services based on mutual agreement |
1, Pre-sales service:
1) | Sales person,project manager,technology engineer,accountant staff |
2) | Professional responsing-team:would be very fast and exactly to send you offer |
2, Online / sale service:
1) | Super and solid quality |
2) | Fastly delivery |
3) | Standard export package or as your demand |
3, After-sale service:
1) | Assistance to bulid factory |
2) | Repairing and maintenance if any problem occur in the warranty |
3) | Installation and clerks training |
4) | Spare and wearing parts for free or with big discount |
5) | Any feedback of machines can be told us, and we will try our best to support you |
4, Other cooperation service:
1) | Technology knowledge share |
2) | Factory building advising |
3) | Any other machines (we havn't) help customer finding without any benefit |
1 | How does your factory do regarding quality control? |
| Our factory has gained CE, ISO9001, SGS authentication."Quality is priority”. We always pay great attention on quality controlling from the beginning to the end. |
2 | How long is your guarantee? |
| 5 years. After this period we will definitely support you when needed. You are welcome to contact us at any time. |
3 | Will you send engineers to install the equipments? |
| Yes, we can send our engineers do the guide installation overseas. |
4 | If I want to buy the wood crusher, what's information do you need? |
| Please inform us: - What's the capacity do you want? - The more information of your biomass materials, such as the diameter / thickness, moisture, ect - If you can send some pictures to show your biomass materials, that will be better. |
Any more information you want to know, please contact me freely.
