Home > Products > Biomass Pellet Line > Energy saving wood pellets making line/poplar pellet plant/bulk wood pellet line
Energy saving wood pellets making line/poplar pellet plant/bulk wood pellet line
- 10 Set / Sets per Month
- Qingdao
- T/T Credit Card
- BEFZ Household Kitchen Scale High Precision Mini Digital Balance 0.01g digital pocket scale Capacity 500g/0.01g Pocket Scale
- 2014 New arrival western ladies Rivet new fashion belt with flower leather pattern buckle Wholesale /Retail sell
- Dung cleaning machine
- mini rice mill
- stainless steel seeds roaster
- incense stick making machine
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | TONY |
Model Number: | pellet line | Voltage: | 380V/50HZ | Power(W): | 90kw |
Dimension(L*W*H): | 2600x1300x2300mm | Weight: | 10T | Certification: | CE ISO SGS |
Warranty: | 13 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

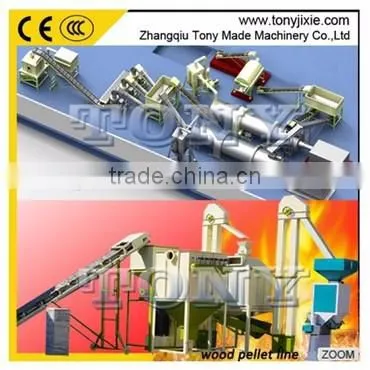

Introduction of the bulk wood pellet plant
The bulk wood pellet plant is new protection energy conservation equipment, researched and developed by ourselves, meeting the family and farm use. The main equipment of the bulk wood pellet plant includes crusher,dryer, conveyor, conditioner, pelletizer, coller, seperator, deduster, hoist, semi-automatic packer. Due to good manufacturing process, each equipment is less occupied area, low energy consumption, compact structure, superior performance.
Main Features of bulk wood pellet plant
1.The bulk wood pellet plant with reasonable structure as your actual need and working space.
2.The produce capicity of the bulk wood pellet plant is high and customized.
3.The bulk wood pellet plant works stably and continuously, all machines can be interlocked, safe and easy to operate.
4.The bulk wood pellet plant produce high quality wood pellets with European standard.
5.The bulk wood pellet plant works with electric power, high efficiency and low cost.
6.The bulk wood pellet plant is suitable for kinds of materials such as wood dust, straw, grain husk, seed sheel, sugarcane bagasse and so on.
The bulk wood pellet plant mainly process includes:
Crushing- drying - pelleting - cooling - packing
Crushing process of bulk wood pellet plant
When the thickness of raw wood material is >10mm, and >50 * 50mm(L * W), we need use the Wood Chipper to chip them into small pieces, then crush the small pieces into wood powder with diameter less 5mm by Hammer Mill (Crusher).
Drying process of bulk wood pellet plant
The best moisture content to pelletizing is about 10-15%. Our Rotary Dryer is made up of stove and rotary dryer, which can realize the reduction of the moisture from 50% to 10%. Our stove is fueled by coal, which can save electricity consumption largely.
Pelletizing process of bulk wood pellet plant
Wood Pellet Mill is the most important equipment, which have the following features:
1). 24 hours continuous running;2). Stable and Durable Equipment Function;
3). Competitive Price with Good Quality;
4).Lower Energy Consumption and Less Manpower.
Cooling process of bulk wood pellet plant
After the pelletizing process, the temperature of the wood pellet is about 60-80 degree, and the moisture content of the wood pellet is about 14%, so we need use Cooler to reduce about 3-4% moisture, such this the wood pellet is easy to store.
But considering the feedback from some foreign clients, the local climate is very humidity; they hope to cool the wood pellet with moisture 7-8%. In order to satisfy the different need from different clients, we develop one kind of new Stabilizer Combined Cooler.Packing process of bulk wood pellet plant
After cooling, the wood pellet will not directly enter into the fuel process, avoiding the wood pellet affected with damp. The packing process is necessary. In this process, we assemble our domestic best Semi-Auto Packing Machine to you.
Tony pellet line all over the world
Company Appearance
Advanced Equipment
ZHANGQIU TONY MADE MACHINERY CO., LTD is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mills, feed pellet mills, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.
TONY has agents in Germany, France, Serbia, Italy, Bulgaria, Thailand, Malaysia, Vietnam, Croatia, Serbia who can supply machines timely with competitive price and also do better after-sales service.
We can supply the machines as following:
1.The SKJ Series flat die pellet mill with the volume 100kg per hour to 4 ton per hour.
2.The TYJ Series ring die pellet mill with the volume 800kg per hour to 5 ton per hour.
3.The SKJD Series Pellet Mill with Diesel Engine with the volume 100kg per hour to 400kg per hour.
4.The SKJT Series Pellet Mill with Tractor Engine with the volume 80kg per hour to 400kg per hour.
5.Straw Hammer Mill
6.Wood crusher
7.Wood chipper
8.Drum dryer
9.Packing machine
10.Whole pellet making production line from capacity 0.5 ton per hour to 20 ton per hour.
