Factory supply pet dog food pellet extruder making machine

               Factory supply pet dog food pellet extruder making machine

I. Description of dog food pellet making machine
High quality Pet dog/cat food extruder machine adopts starch, wheat flour, skin, food additives to make the  pet food by extrusion technology. It can make different shapes products such as strip, stick, twist, core filling and so on. By adjusting the formulations,we can meet different needs and nutrition requirements of the dog food machine.
1. Raw Materials: Starch, Wheat Flour, Food Additives
2. Products: Pet Food, Like Dog, Cat, Fish, Bird Food etc. with Different Shapes and Tastes by Changing the Dies and Formulations
3. Capacity: 1000-2000kg/h

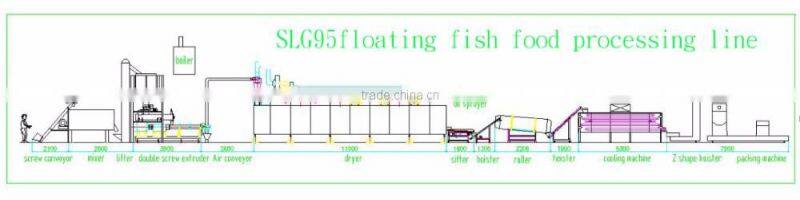

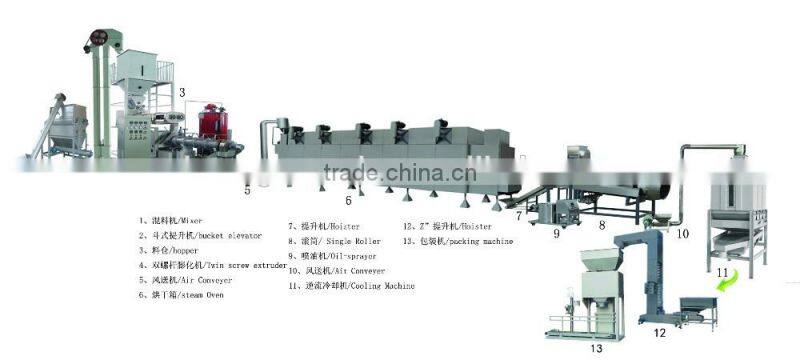

4. Flow Chart: Mixing -Extrusion -Cooling- Cutting- Drying
5. Voltage: Three phases: 380V/50HZ; Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries.
6. Machines Materials: All the machines are made by food grade stainless steel.

Blender & conveyer

1.Blender Main motor: 11.0kw
2.Size: 3000*1800*2950
3.Output: 1000-2000kg/h
4. Operate easily and safety.
5.Screw Conveyer：2.2kw
It used to mix the raw material before material hopper.

Elevator

1.Output: 1200-2000kg/h
2. Main motor: 2.2kw
3.Size: Depend on the hopper require.
4. Convey the material from mixer to hopper.
5.speed: 1.2m/second.

Hopper:

1.Size: 1.2×1.2×4.50m
2.This storage can store the raw material.It can make sure enough material for extruder.
Double screw Pet food extruder:
1.Main motor power: 90.0kw Inverter speed controlling
2.Feeding power :2.2kw Inverter speed controlling
3.Cutting power 2.2 kw Inverter speed controlling

Air conveyer

1.Stainless steel for material touch place
2.Main Motor :5.5kw
3.Size2.5x0.5x4.0(m)
4. Convey the product from extruder to dryer.
Functions:
1.Air conveyor conveys the food relying on the wind-force from the blower.
2.It is more suitable for the long distance conveying.

Cooling box

Drive Power 0.75kw
Fan:1.98kw （total 9 fan）
Capacity:0-2000kg/h
Size:5000*560*1600mm
Stainless steel belt, belt width 1.0meter .

Steam dryer

Driving Motor：1.5kw（2 sets）.
Air circulate motor：40.0kw（10sets*4.0kw）
exhaust fan ：4.0kw.
Machine material：product touch net adopt stainless steel
Feed hopper parts adopt stainless steel
size：11500×1500×2200mm
Dryer surface adopt carbon steel.

Hoister:

Food types PVC for material touch place.
Main Motor:1.5 kw Size:2.5x0.8x1.5 (m)
Convey the product from dryer to double roller.
Flavouring part---double Drum:
Motor: 0.75kw
Material: stainless steel
Size: 2500*950*1600mm
Oil sprayer Function:
Motor: 0.37kw
Heating powder:6.0kw
Stainless steel

Air conveyer&Hopper

Air conveyer: 4.0kw
Size: 2.5*0.7*2.3m
Hopper sie: 1.5*1.8*2.0m
It can take the Pet food pellet to store it can make the packing machine working well,No need waiting enough pellet when packing.

Z hoister&Packing machine

1.Stainless steel for material touch place
2.Main Motor :2.2kw
3.Size:3.0x0.6x6.0(m)
4. Convey the product from extruder to dryer.
Flowing Process:
Manual Bag placing→Automatic filling→Automatic weighing→ Automatic bag conveyer→Automatic bag sewing
Technical Parameter:
Type：BZJ
Weighting Range(kg)： 15~20kg
Precisions： ±0.2%FS
Source(V/ Hz)： 380 , 50, 3Phase, as per your needs
Air resource(Mpa)： 0.4～0.6
Power(Kw): 2.2/3
1400×700×2800mm, subject to the real machine.

Welcome to visit Datong Extrusion Company!

Jinan Datong Extrusion Machinery Co., Ltd is a professional food machinery manufacturer in Jinan city shandong province China.With our many years research and development extrusion technics has been widely used in more fields.

Our products consist of extrusion snack machine, twin screw food extruder, breakfast cereal and corn flakes machine, pet food machines and floating fish feed machinery,textured soya protein machine,modified starch machine, artificial rice making machine,bread crumb machine,single screw extruder,potato chips machine and biscuits machine, instant flour machine,flat bread machine,ect. We can also provide special design and product according to our clients` special requirements.

Now we have exported our machines to many countries, such as Malaysia, Indonesia. Pakistan, Sri Lanka, Brazil etc., and get good reputation from the clients. Some of them become our agents.
