500kg/h Pet Dog Food Extruder Manufacturer

2.pet dog food extruder Raw materials:

All kinds of grains, such as bean, corn, wheat, etc. Some agricultural waste, such as rice husk, cotton stalk, cottonseed skins, weeds, crop stalks and other plant wastes, especially unformed materials.

3.Pet food shapes/sample

As long as you change the extruder mould to get different shapes. like bone,heart,pellet,fish,traingle......

4.dog food extruder process flow:

Raw material preparation→Mixing raw material→Conveying→Extrusion→Conveying→Drying→Screening→Oil spraying→Flavoring→Packing machine.

5.Pet Food Making Machine Pet food Processing Line setting:

Mixer→Conveyor→Extruder→Wind conveyor/hoister→Multi-layer dryer→Sifter→Hoister→Oil sprayer→Single/double roller→Packing machine

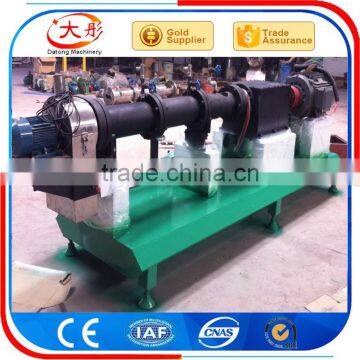

Double screw pet food machine

Installed Capacity:35.0kw

 Drive Motor:30.0kw;
Feeding:1.5kw;

 Oil-pump: 0.37kw;
Cutting: 1.5kw;

 Output: 200-400kg/h
Dimension: 3000*850*1750mm

Dryer (electrical, steam, gas, diesel type):

1. This dryer has the compact structure, small occupying, large drying area, small surface area, slight radiating heat and high thermal efficiency.
2.The belt and the heat preservation use the stainless steel; it is suitable for food safe industry level.
3.The running speed of belt net can be controlled (frequency controlling system)
4.The temperature can be controlled willfully and designed according to the need.

Nitriding treatment(120 Hours)
Depth of Nitrided Layer: 0.5-0.8 mm
Hardness of Nitrided Layer: 950-1100Hv (HRC56°-65°)
Chrome Plating
Thickness of Hard Chrome Plating Layer: 0.05-0.10mm
Hardness of Hard Chrome Plating Layer: ≥950HV
Bimetallic Screw: Plasma Alloy Coating Spraying
Depth of Bimetallic Layer: >2mm
Hardness of Bimetallic Layer: HRC55°-68°
Bimetallic Barrel/Cylinder: Centrifugal Casting (Inlay Alloy)
Depth of Bimetallic Layer: >2mm
Hardness of Bimetallic Layer: HRC55°-68°

Flavoring system:

including hoister, flavors feed and rolling drum
1. Fish-oil or other nutritious additives are sprayed on the surface of the pellets to improve palatability and conversion rate of feed.
2. Adopting drum pattern and oil atomization spraying system together with continuous and automatic operation.
3. Widely used for spraying fat, vitamin, substrate and medication onto the surface of extrusion feed.

Food Mould.

1.We can change the final product size by the extruder mould.

2.We can design the moudl according to the customer require.

Extruder Cutting System:

1.Cutter speed can controlling

2.Inverter

3.wear-resisting

4.Change easily.

5.Adjust easily.
