Nigeria fish food mill machine

Nigeria fish food mill machine

1.Floating fish feed machine can produce a premium quality special koi food, goldfish food, tropical fishes food, dog food, cat food, as well as laboratory dog and monkey food. They all are sold at home and abroad and win high praise and favorably commented from customers. This fish feed machinery can do floating and sinking fish feed. fish feed machine, pet food machine, fish feedstuff machine, fish food machine.
2.Raw Material:corn flour,wheat flour,low temperature,soya flakes meal,rice ,wheat bran,annexing agent,etc.
3.Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
4.Fish feed mill machine Features:
1.Datong Company fish feed extruder machine is used to produce the food with novel shape, particular taste and color.
2. Scientific nutrition combination catches up the trend of the market.
3. In this line, you will see the advanced technology of JINAN DATONG machinery. With simple operation, accurate parameter control, the products can be finished in the stipulated temperature, pressure, humidity and time.
4. Owing to the reasonable design, special materials ,the stability, repairs can be guaranteed and ensured.
5.The various shape and taste must meet the different requirements.

5.Fish food processing line Process chart:

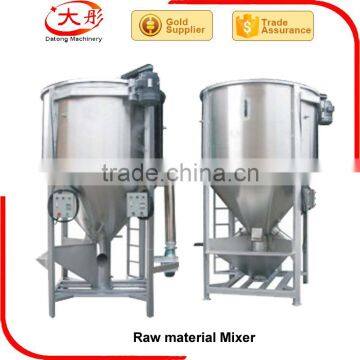

Blender→elevator→Storage→Conditioner→Steam Fish food extruder→Air conveyer→Steam Dryer→Hoister→oil sprayer→Double Drum→Cooling conveyer→Sifter→Packing Machine.

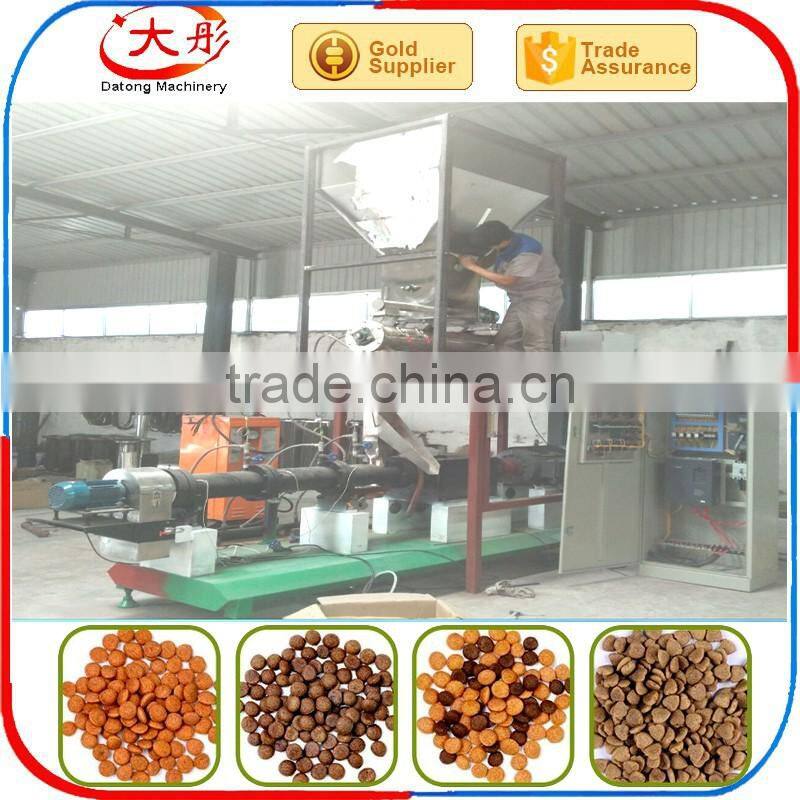

Double screw pet food machine

Dimension: 3000*850*4000mm.

Pet food dryer(electricity,gas,steam types)

1. This dryer has the compact structure, small occupying, large drying area, small surface area, slight radiating heat and high thermal efficiency.
2.The belt and the heat preservation use the stainless steel; it is suitable for food safe industry level.
3.The running speed of belt net can be controlled (frequency controlling system)
4.The temperature can be controlled willfully and designed according to the need.

Screw material:

Nitriding treatment(120 Hours)
Depth of Nitrided Layer: 0.5-0.8 mm
Hardness of Nitrided Layer: 950-1100Hv (HRC56°-65°)
Chrome Plating
Thickness of Hard Chrome Plating Layer: 0.05-0.10mm
Hardness of Hard Chrome Plating Layer: ≥950HV
Bimetallic Screw: Plasma Alloy Coating Spraying
Depth of Bimetallic Layer: >2mm
Hardness of Bimetallic Layer: HRC55°-68°
Bimetallic Barrel/Cylinder: Centrifugal Casting (Inlay Alloy)
Depth of Bimetallic Layer: >2mm
Hardness of Bimetallic Layer: HRC55°-68°

Cutting System:

1.The blades is made of alloy steel,Very sharp.

2.It can cut the product easily.

3.Hardness material an used long time.

4.it can fix more cutter according require.
