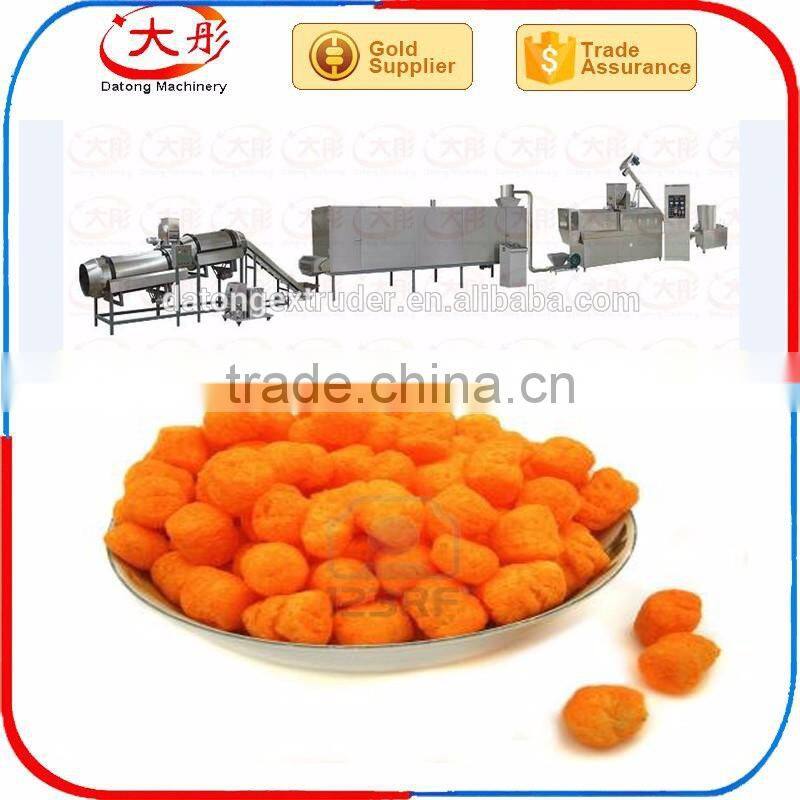

This corn snack making machine designed and produced by our company is produced on the basis of the common corn extruders at home and abroad. Besides, it also has the advantages of our factory. The screw of the machine i as long as 1400mm which is longer than the common one of 1000mm. So that the corn can be melted sufficiently and thus solves the problems of half-cooked, not evenly melting, bad effect in the last half processing period, low working capacity. This machine can extrude many different kinds of materials, such as grains, flour, corn, sticky rice,wheat, beans,starch, meat etc. And we can offer the whole processing line to you.
Features of snack food machine
1.The snack food machine has the advantage of rational design, high automatic degree and accuracy control.
2. The main body material is stainless steel, which is easy to be cleaned.
3. The screws material is 38CrMnAl, which is wear-resisting.
4. Our project is turn-key. We will send our engineer to your factory, install and debug the equipments, and train your operators.
5. The temperature and rotating speed can be controlled and adjusted.
Technical parameter of corn extruder
Mixer Function and Features:
Mixer makes the raw material which adding water and liquid chemical additive fully mixed equally. the machine mixes the flour and prepares them ready to be used in the next step.
1. Surface which touches mixer and raw material adopt stainless steel;the mixer is easy to operate it.
2.The discharge hole adopts the new handle-opened design, good seal and avoids leaking the material
3. we can choose different install powder mixer to meet the extruder capacity require.
screw conveyor
Output:0-150kg/h
Main motor:1.1kw
Size:2500*600*2300mm
Function:
Screw conveyor can not only convey on the level but also by any angel these materials can be conveyed in the stainless steel roller without leaking,dust pollution.
It is used to convey the mixed raw materials to the feeder of the extruder.There is no leaking,dusting and pollution during the conveying.
Name: Extruder
Brand: DATONG
Original: China
we can supply your different models extruder according to your targer capacity.With a same extruder,you can produce different shapes of snacks by changing different moulds.
Name: Air conveyor
Brand: DATONG
Original: China
Air conveyor is used to convey the produces to the dryer.It is suitable for long distance conveying.It has features of low consumption and high efficiency without leaking and pollution .
Snack food dryer(electricity,gas,steam types)
1. This dryer has the compact structure, small occupying, large drying area, small surface area, slight radiating heat and high thermal efficiency.
2.The belt and the heat preservation use the stainless steel; it is suitable for food safe industry level.
3.The running speed of belt net can be controlled (frequency controlling system)
4.The temperature can be controlled willfully and designed according to the need.
Flavouring System
Output:100-1000kg/h
Size:3.9*0.7*1.3m
Main power:1.5kw
1.The inside turning container is very sanitary because of adopting the stainless steel material.The small roller is used for the small output whereas the big roller is used for the plentiful output.
2.We can spray the oil and sprinkle flavoring material in this .First drum,we can flavoring products automatically.This drum is easy to operate it and easy to clean it after day work.
1).Provide the free consultation of the equipment
2).Provide the standard device and the flow chart
3).According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.
4).Welcome to visit our factory or the domestic clients’ factory.
Services during the sales
1).Provide factory layout according to your factory size in advance.
2).Provide the basic formula
3).Inspect the machine before leaving the factory.
4).Oversea installation and commissioning the equipment.
5).Technician will work with your workers together and teach your workers how to install machines
6).Our engineers will teach your workers how to clean the extruder, how to change the screw, how to change barrel etc, and provide technology support with you forever.
After sale services:
1. Oversea install and debug the equipment.
2. Train the first-line operator.
3. Provide the basic formula.
4. Operation/ Service/ Maintenance Manual: Provided In English.
5. We will provide 1-2 engineer to the client's factory for the installation and teach totally in 10 days. The client need provide room, food, round-trip transportation, visa fee and a nominal $50 daily subsidy per person.
