Automatic Corn Puff Snack food extruder production line
1.Introduction:
The Corn Puff Snack extruder is using wheat flour, bean powder, tuber crops material, vegetable powder as the raw material; Via the effect of extrusion machine, to produce multiple types, variety shapes, crispy and tasty snack.Due to it is a profitable project with less investment, It won a lot of customers' favor and trust;
2.Corn puff snack food Basic Formula:
Corn Powder, Wheat Flour, Bean Powder, Rice Flour etc
3.Corn snack production line:
Raw material Mixer → Automatic Feeder → Twin Screw Extruder → Elevator → Dryer →Automatic Flavoring Line

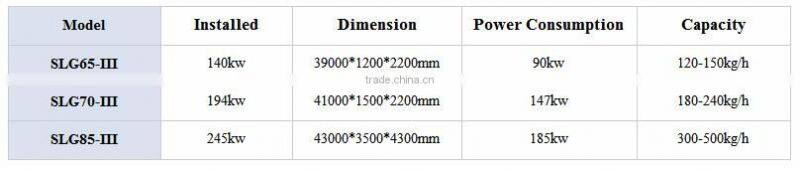

4.Snacks machine technology parameter:
5.Corn puff snack extruder Feature
Corn puff snack extruder can take corn, rice, wheat, oat, rye and other grains as materials to produce extruded snacks, with crispy taste and lively shape.
(1)Different shapes of snacks can be produced such as Round, triangle, square, stars, flower, etc
(2)The processing line is from feeding, extruding, core filling, shaping ,cutting , oil spraying to finished products are done once time automatically.
(3)This processing line can produce all kinds of inflating foodstuffs, rice bread, core snacks, crackers, gruels, nutrient-flour, and baby food and so on.
(4)The screws are made by ally steel and special craft, the screw life is longer, uses building block system structure, may combine willfully.
(5)The forced lubrication system, by guaranteed equipment transmission longer life.
(6)Visible auto-temperature controlling system, make the temperature-controlling to be more direct-viewing, parameter to be more precise.
It also can be designed according to customer requirement;
Mixer
1.Main motor :4.0Kw
2.Size:1.2*0.9*1.4m
3.Output:30kg-4.0kg/time
Functions:
Mixer makes the raw material which adding water and liquid chemical additive fully mixer equally.the machine mixees the flour and prepares them ready to be used in the next step.
Screw Conveyor
1.Output: 0-500kg/h
2. Main motor:1.1 kw
3.Size: 3300*800*2300mm
4.Stainless steel
5. Convey the material from mixer to extruder feeding system. We can adjust the structure to meet different height require.
6. Adopt inverter, Adjust speed easily.
Name: Extruder
Brand: Datong
Original: China
we can supply your different models extruder according to your targer capacity.With a same extruder,you can produce different shapes of food by changing different moulds.
Name: Air conveyor
Brand: Datong
Original: China
Air conveyor is used to convey the produces to the dryer.It is suitable for long distance conveying.It has features of low consumption and high efficiency without leaking and pollution .
Machine Parts: dryer
1. This dryer has the compact structure, small occupying, large drying area, small surface area, slight radiating heat and high thermal efficiency.
2.The belt and the heat preservation use the stainless steel; it is suitable for food safe industry level.
3.The running speed of belt net can be controlled (frequency controlling system)
4.The temperature can be controlled willfully and designed according to the need.
5. Adjustable transit speed of net belt with accurate temperature control device.
6. Suitable to dry non-fried extrusion snacks, nutritional powder, bread crumb, pet food, soybean protein, etc.
1. Free consultation service before, during, and after sales;
2. Free Project planning and design services upon clients' special demands;
3. Debugging and inspecting of equipment until everything is functional before leaving the factory;
4. Overseas installation and training of equipment maintenance and operating personally;
5. Provide basic production techniques and formulas;
6. 1 year complete warranty for Extruded Food Wheat Corn Snack Pellet Making Machine
Industrial Automatic Corn Puff Snack food processing Machine
1.Packaging Specification
Outside Pachage:Wooden Packing as Exportand Standard.
2.Delivery time:
5-10days after received 40% of the whole payment.
3.About Shipping:
We can be resonsible for the shipping ,of course,we can also accept and cooperate with your agent if you have shipping forwarder in China.
Welcome to visit Datong Extrusion Company!
Jinan Datong Extrusion Machinery Co., Ltd is a professional food machinery manufacturer in Jinan city shandong province China.With our many years research and development extrusion technics has been widely used in more fields.
Our products consist of extrusion snack machine, twin screw food extruder, breakfast cereal and corn flakes machine, pet food machines and floating fish feed machinery,textured soya protein machine,modified starch machine, artificial rice making machine,bread crumb machine,single screw extruder,potato chips machine and biscuits machine, instant flour machine,flat bread machine,ect. We can also provide special design and product according to our clients` special requirements.
Now we have exported our machines to many countries, such as Malaysia, Indonesia. Pakistan, Sri Lanka, Brazil etc., and get good reputation from the clients. Some of them become our agents.
Contact us:
If u want to know more and intrasting our machine please feel free contact me .ans welcome vist us!!!!!
Zhang Lee
Tel/whatsapp:0086-18396813015
Wechat:18396813015
QQ:3570319150
