We offer two distinct categories of Tumblast or tumble blast machine. Batch Type Tumblast machines process parts batch by batch, in a stop-start operation, and Continuous Tumblast machines pass the parts through the machine and onto the next process in the operation.
This series are the optimum solution for descaling, sand removing,
roughening and deburring of bulk goods.
the workpiece loading capacity from 200kg to 3500kg.
• 1 to 2 blast wheel is optional according your requirement of efficiency.
• automatic control via PLC is also optional, to detect the abrasive jam in bucket elevator or other conveyor.
• Hydraulic, cable, or soft loading
• High life time by material optimization and by use of management.
No. | item | Q326EA | QR3210 |
1 | productivity | 0.6-1.2 | 2-2.2 |
2 | feeding amount | 200 | 600 |
3 | maximum weight of single piece | 10 | 30 |
4 | diameter of end disk | Φ 650 | Φ 1000 |
5 | effective volume | 0.15 | 0.3 |
6 | abrasive flow rate | 120 | 250 |
7 | ventilation capacity | 2000 | 3500 |
8 | power consumption | 12.6 | 24.3 |
9 | outline dimesion | 1500*1880*3900 | 3976*2600*4768 |
10 | Crawler material | rubber | rubber |
Note:
The above technical parameters and specification are for reference only, we will according to your workpiece size and design products.
So please inform us your workpiece size ,we could design a suitable cleaning machine for you .

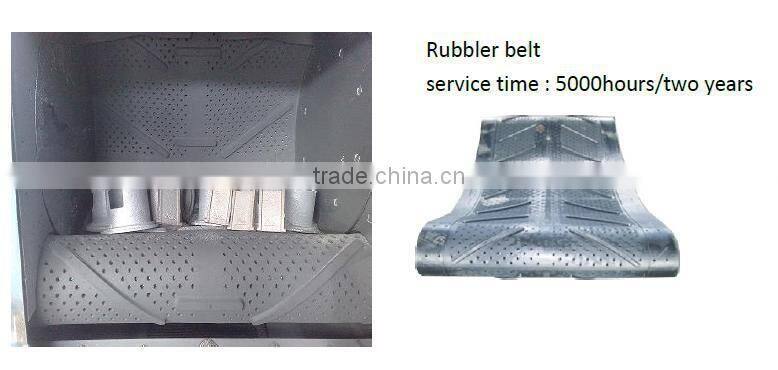

Rubbler belt

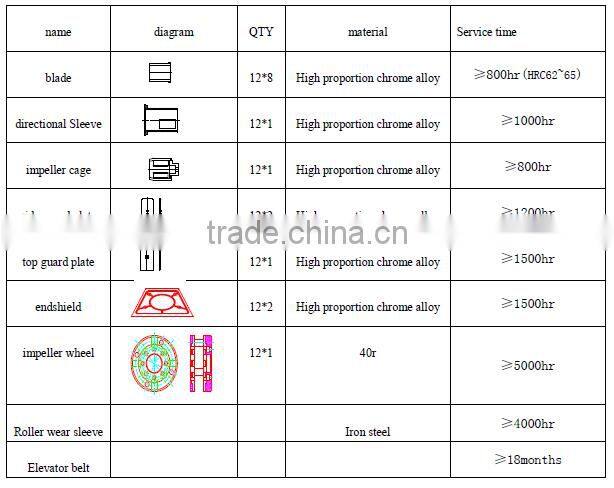

Blast wheel wear parts service time:

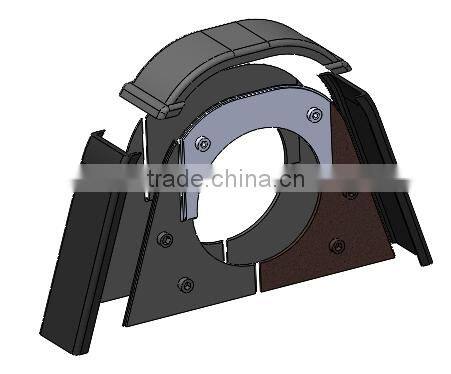

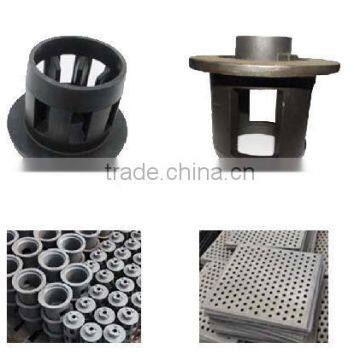

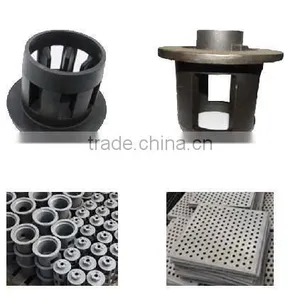

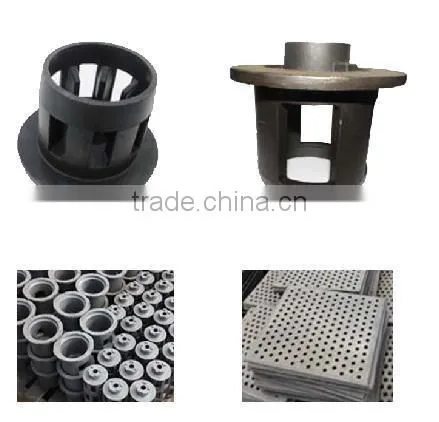

blast wheel ware parts:

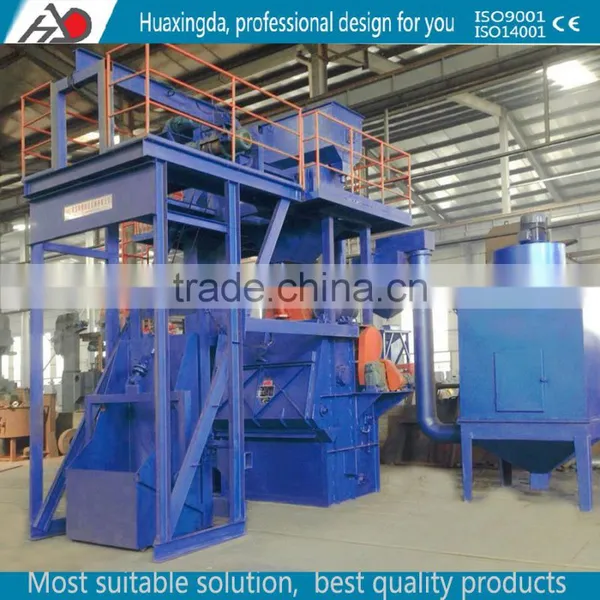

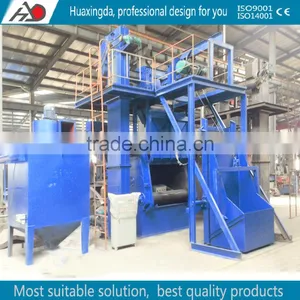

product pictures:

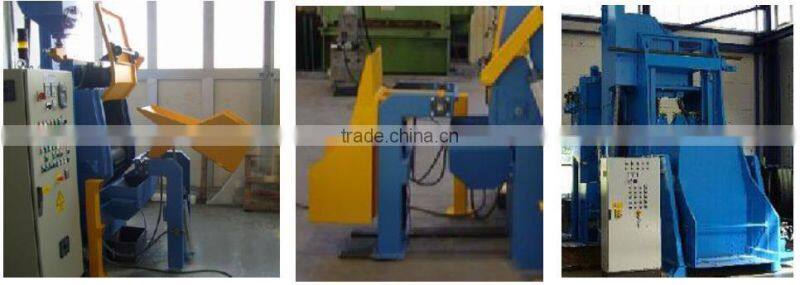

load automatically option:
The following applications can be undertaken:
• Desanding and decoring of casting
• Descaling of castings, forgings and heat treated parts
• Shot peening (without process security)
• Deburring of plastic and rubber parts
tumlast machine Q32 Series are used for bulk, tumble proof material. The product range includes a comprehensive range of machines for desanding and decoring castings and for descaling forgings or heat-treated work pieces. The work pieces are continuously tumbled during the blasting process. our expertise in this field enables the development of customized solutions which can include automatic loading/unloading of work pieces and removal of abrasive residues from the part.

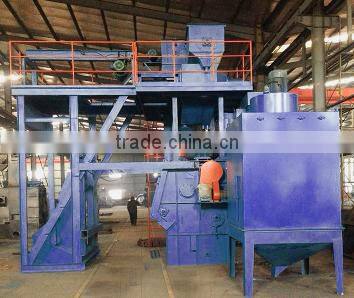

Q326C tumble type shot blasting machine

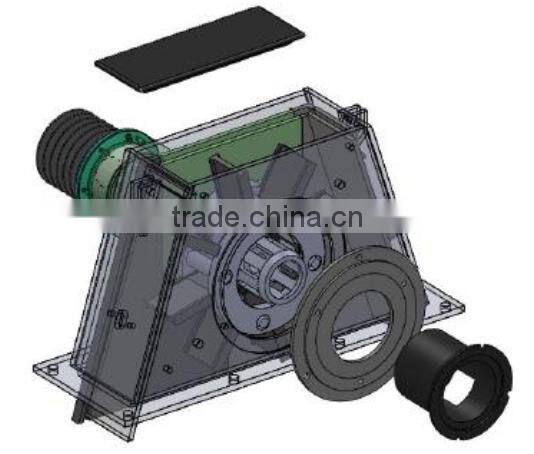

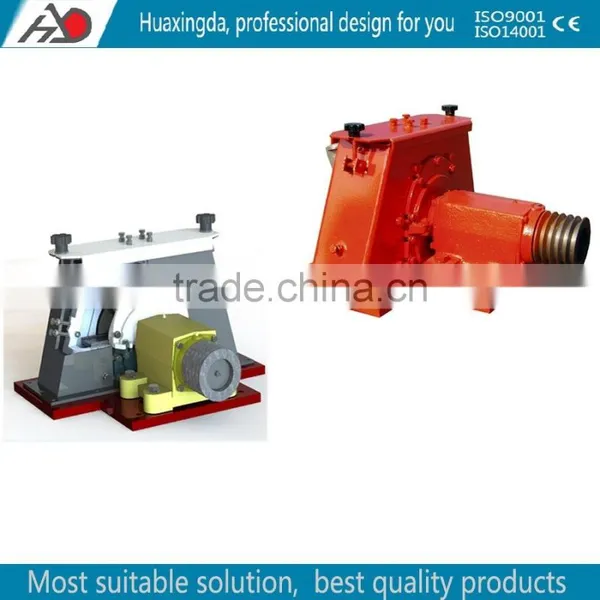

Belt driving blast wheel:
Advantage:
1. Professional senior engineer to find the best solutions for you
2.16 years' product experience in shot blasting machinery industry.
3.Reply your inquiry in 24 working hours.
4. As an honest seller,we always use superior raw material,advanced machines,skilled technicians to ensure our products to be finishied in high quality and stable feature.
Welcome to contact us or visit our company.
If you wang to perchase sand molding machine ,please indicate the following details.
1) The productivity that you need.
2) Your workpieces dimension.
According to your information,we would recommend a most suitable machine fou you.
