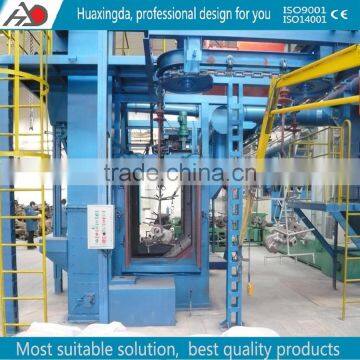

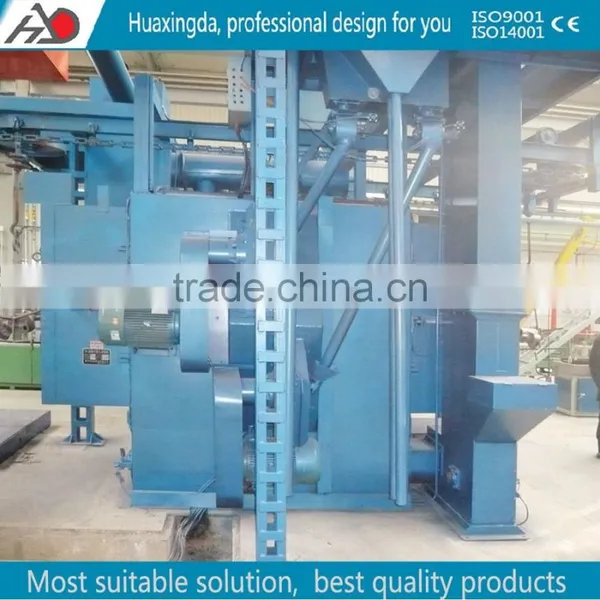

Help CenterOverhead Chain Conveyors Shot Blasting Machine for Q38 Series
Related Products
-
Q485 Series Catenary Stepping Type Shot Blasting MachineUS$ 45,600 - 46,650MOQ: 1 Set -
Automatic Q37series Hanger Type Shot Blasting Machine for SaleUS$ 5,800 - 6,500MOQ: 1 Set
-
Q37 Series CE Approved Surface Cleaning Hanger Type Shot Blasting MachineUS$ 5,800 - 6,500MOQ: 1 Set
-
QR3210 Series High Quality Steel Structures Tumble Belt Shot Blasting MachineUS$ 22,000 - 26,000MOQ: 1 Set
-
QR326EA Automatic Loading Tumble Belt Shot Blasting Machine for CastingUS$ 22,000 - 26,000MOQ: 1 Set
Features:
1. This Hanger Hook Type Shot Blasting Machine is a kind of high efficency shot blasting machine with non-pit.
2. Large inner available cleaning space, compacted structure and scientific design. Can be designed and manufactured according to the order.
3. No special request for the workpiece structure. Can be used for different kinds of workpieces.
4. Widely used in cleaning and strengthening for Fragile or Irregularly Shaped Parts, Medium-sized or Large Parts, Die Cast Parts, Sand Removal and External Finishing.
specification
5.Overhead chain is running continuously. operator should hang the job to following the chain timely.
NO. |
Name |
Q383F |
Q383C |
Q384C |
Q385 |
1 |
Productivity (hook / h) |
38 |
38,49,50,65 |
70,80 |
75 |
2 |
Running speed chain hoists(m/min) |
0.8-2.6 |
0.5,0.65 |
0.8,0.93 |
0.65 |
3 |
Single hook hoists(Kg) |
100 |
300 |
400 |
500 |
4 |
Hanging from mm |
800 |
600,800 |
800 |
800 |
5 |
Quantity of shot blasting(Kg/min) |
125*6 |
250*4 |
250*6 |
250*50 |
6 |
The amount of dust wind(m/3h) |
20000 |
18000 |
26500 |
23700 |
7 |
Cleanup workpiece size(mm) |
φ400*800 |
φ500*1200 |
φ700*1500 |
φ700*1500 |
8 |
Total power(Kw) |
80.75 |
75.3 |
122.6 |
106.75 |

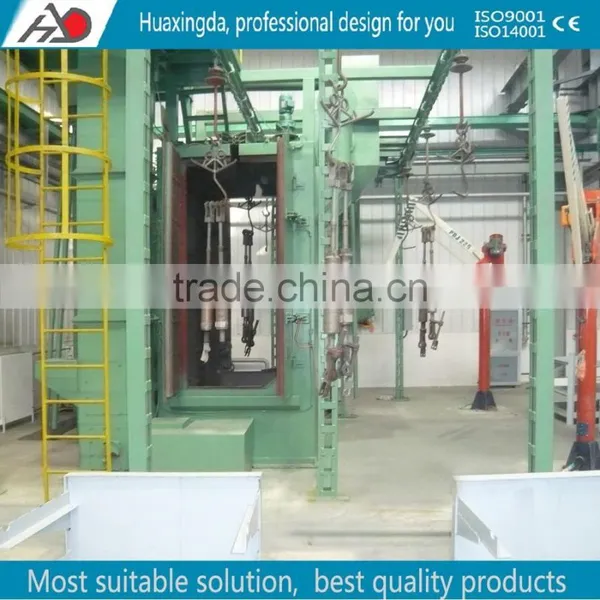

overhead chain system
work piece spinning device blast blade pneumatic abrasive feeder
blastwheel wear parts
blast wheel wear parts service time
wear parts chemical analysis table:
