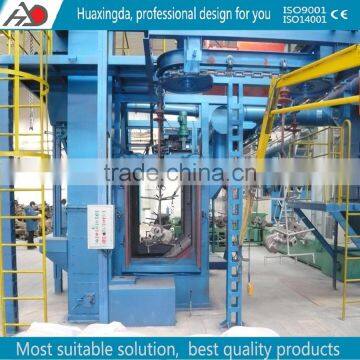

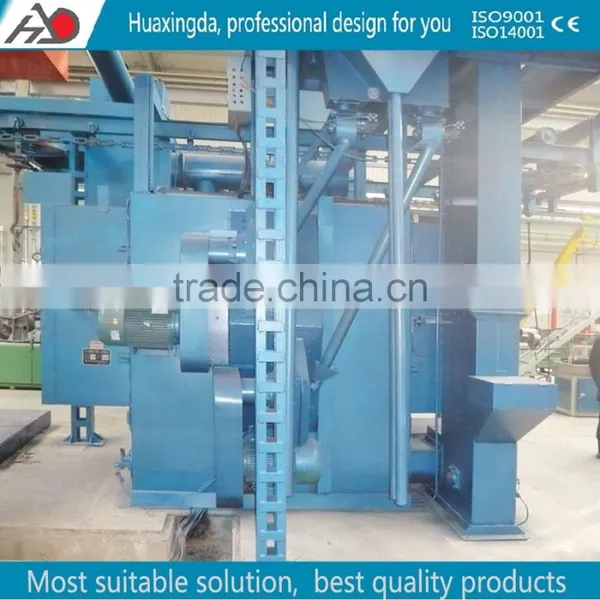

Help CenterQ485 Series Catenary Stepping Type Shot Blasting Machine
Related Products
-
Automatic Q37series Hanger Type Shot Blasting Machine for SaleUS$ 5,800 - 6,500MOQ: 1 Set -
Q37 Series CE Approved Surface Cleaning Hanger Type Shot Blasting MachineUS$ 5,800 - 6,500MOQ: 1 Set
-
QR3210 Series High Quality Steel Structures Tumble Belt Shot Blasting MachineUS$ 22,000 - 26,000MOQ: 1 Set
-
QR326EA Automatic Loading Tumble Belt Shot Blasting Machine for CastingUS$ 22,000 - 26,000MOQ: 1 Set
-
QR3220A High Quality Surface Cleaning Tumble Belt Shot Blasting MachineUS$ 22,000 - 26,000MOQ: 1 Set
Features:
1. This Hanger Hook Type Shot Blasting Machine is a kind of high efficency shot blasting machine with non-pit.
2. Large inner available cleaning space, compacted structure and scientific design. Can be designed and manufactured according to the order.
3. No special request for the workpiece structure. Can be used for different kinds of workpieces.
4. Widely used in cleaning and strengthening for Fragile or Irregularly Shaped Parts, Medium-sized or Large Parts, Die Cast Parts, Sand Removal and External Finishing.
specification
No |
Name |
Q483 |
Q485 |
Q4810 |
1 |
Productivity (hook / h) |
10 |
10 |
10 |
2 |
Running speed chain hoists(m/min) |
2.44 |
7.34 |
2.44 |
3 |
Maximum workpiece weight(Kg) |
300 |
500 |
800 |
4 |
Hanging from (mm) |
2560 |
2560 |
2560 |
5 |
Quantity of shot blasting(Kg/min) |
250*2 |
250*3 |
360*6 |
6 |
The amount of dust wind(m/3h) |
6000 |
10000 |
25000 |
7 |
Cleanup workpiece size(mm) |
1000*1400 |
1200*1700 |
700*2400 |
8 |
Total power(Kw) |
38.75 |
58.43 |
85 |
9 |
Dimensions(mm) |
8450*5350*5003 |
12235*5410*9411 |
4500*5350*5003 |

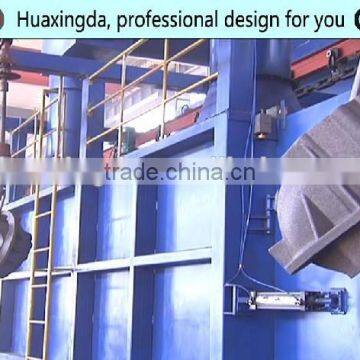

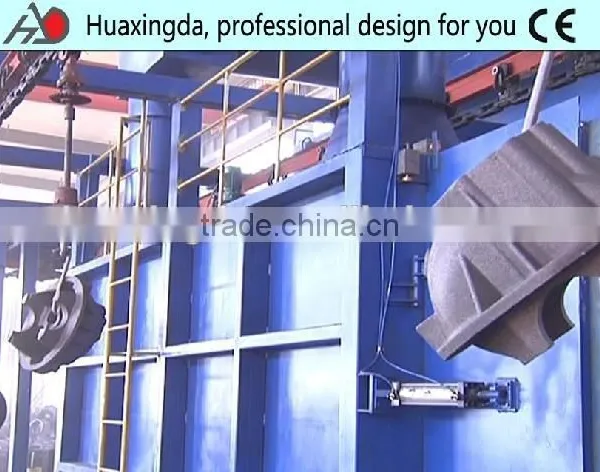

Pictures of established case
overhead chain system
work piece spinning device blast blade pneumatic abrasive feeder
blastwheel wear parts
blast wheel wear parts service time
wear parts chemical analysis table:
