QGW15

US$ 22,100 - 23,500 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

HXD

Qingdao Huaxingda Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name HXD

Model Number QGW15

Feature Critical Cleaning / Residue Free

Fuel Electric

Certification CB, CE

Use Degreasing, Descaling / Stripping

Cleaning Process Other, steel shot, steel grit

Cleaning Type Clean-In-Place (CIP)

Industry Used Other, foundry

Material Metal / Coil

Power(W) 29KW

Dimension(L*W*H) 15000*2600*6200

After-sales Service Provided No overseas service provided

Product Description

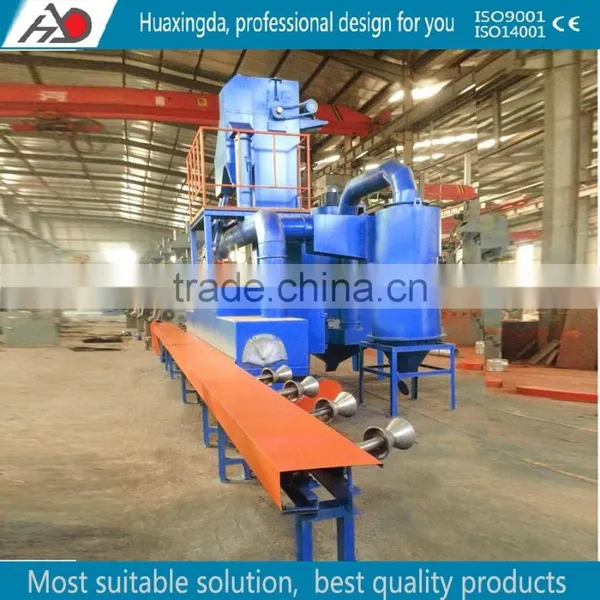

QGW15 pipe blasting equipment:

specification

Technology parameter of Steel pipe outside shot blasting cleaning machine
Type Item	Size of workpiece (mm)	Cleaning speed (m/min)	Driving mode	Amount of blast wheel (pcs*KW)	Install mode	Remarks
QGW15	Φ50-150	1-4	V type roller	2*7.5	Front shot blasting	Cleaning 1 pcs at the same time
QGW30	φ60-100	1-4	V type roller	2*11	Front shot blasting	Cleaning 1 pcs at the same time

Features

1. Steel tube blasting and rust removing machine, surface strengthen, rust removing and cleaning for the round steel. shot blasting process speed is adjustable according different pipe rust condition. the pipe conveyor is driven by inverter.
2. According to the features of the round steel, adopted the tilting wheel , “V” shape, the round steel not only can be transferred straightly but also can spin around the axes, then all the surface of the workpieces can be exposed in the blasting area.
3. All the surfaces of the axis workpiece can get the good shot blasting effect after one time shot blasting.

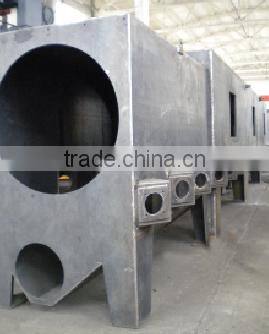

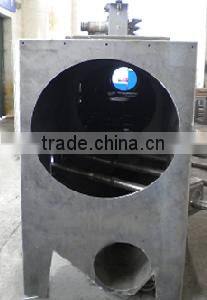

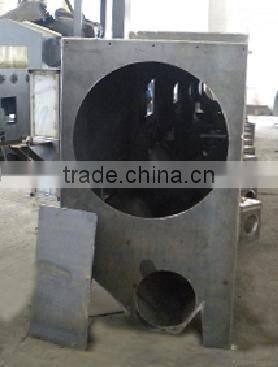

pipe outside wall shot blasting machine blasting chamber blasting chamber assembly

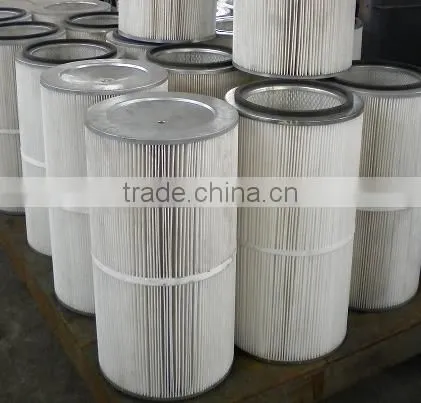

pipe shot blasting machien conveyor surport filter for dust collector
