Features:

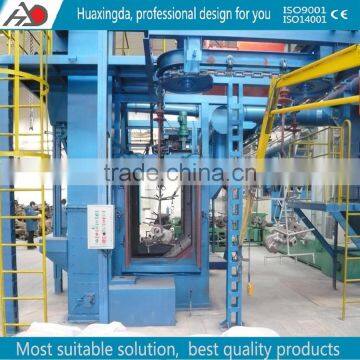

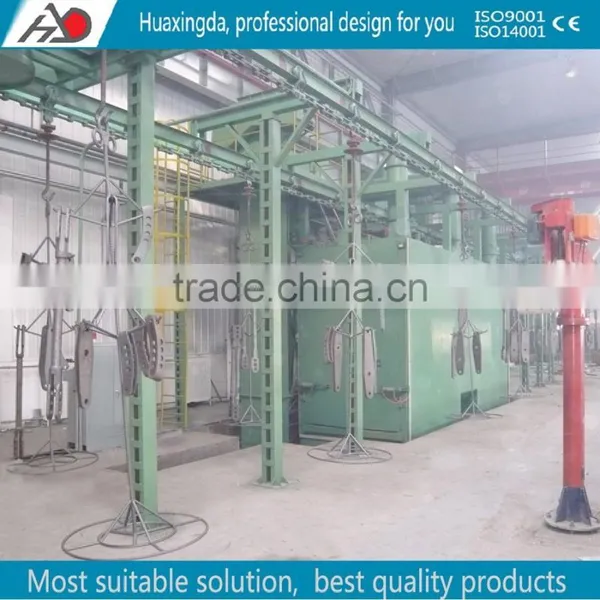

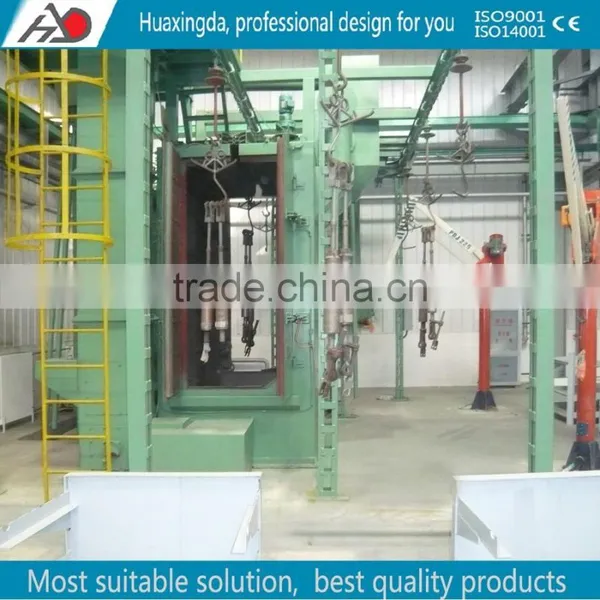

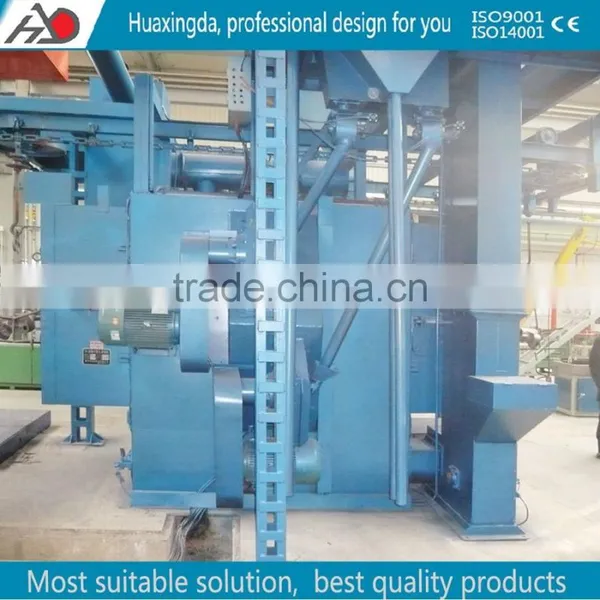

1. This Hanger Hook Type Shot Blasting Machine is a kind of high efficency shot blasting machine with non-pit.
2. Large inner available cleaning space, compacted structure and scientific design. Can be designed and manufactured according to the order.
3. No special request for the workpiece structure. Can be used for different kinds of workpieces.
4. Widely used in cleaning and strengthening for Fragile or Irregularly Shaped Parts, Medium-sized or Large Parts, Die Cast Parts, Sand Removal and External Finishing.
specification
No |
Name |
Q483 |
Q485 |
Q4810 |
1 |
Productivity (hook / h) |
10 |
10 |
10 |
2 |
Running speed chain hoists(m/min) |
2.44 |
7.34 |
2.44 |
3 |
Maximum workpiece weight(Kg) |
300 |
500 |
800 |
4 |
Hanging from (mm) |
2560 |
2560 |
2560 |
5 |
Quantity of shot blasting(Kg/min) |
250*2 |
250*3 |
360*6 |
6 |
The amount of dust wind(m/3h) |
6000 |
10000 |
25000 |
7 |
Cleanup workpiece size(mm) |
1000*1400 |
1200*1700 |
700*2400 |
8 |
Total power(Kw) |
38.75 |
58.43 |
85 |
9 |
Dimensions(mm) |
8450*5350*5003 |
12235*5410*9411 |
4500*5350*5003 |
overhead chain system
work piece spinning device blast blade pneumatic abrasive feeder
blastwheel wear parts
blast wheel wear parts service time
wear parts chemical analysis table:
