2016 continuous casting machine for jolt squeeze molding machine
- 50 Set / Sets per Month
- qingdao port
- T/T Credit Card
- Supply Wax Injection Machine for the investment casting line
- supply semi-automatic Dewaxing Autoclave for investment casting industriy
- New energy copper and aluminum busbar bending machine Copper busbar stamping CNC machine
- WATER MOLD TEMPERATURE MACHINE
- OIL TYPE MOLD TEMPERATURE MACHINE
- WATER-COOLED INDUSTRIAL CHILLER
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | HXD |
Model Number: | zw147 | Dimension(L*W*H): | 1300*800*1700mm | Certification: | ISO CE |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

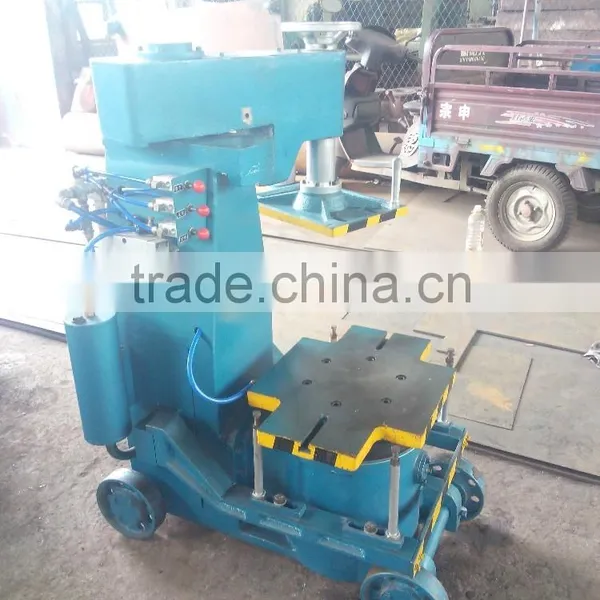

(Z147W microseism squeeze molding machine)
Technical characteristics:
Optimal design of the structure, the fuselage of the machine adopt the square chest and frame structure, so it can significantly increase the rigidity of the fuselage!
The machine adopt the jolting technology, so it can significantly increase the compressive stress to make the hardness up to HB90 and upgrade one level about the surface roughness, so it can guarantee the quality

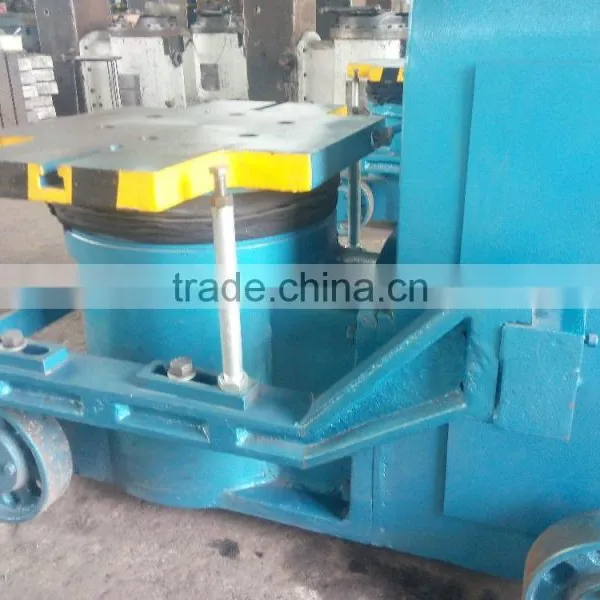

The shock part of the machine is buffer spring, so it can effectively reduce the impact to foundation
The pattern drawing mechanism is adopt the cylinder,crank, connecting rod, synchronizing shaft to achieve the synchronism
The control part, it adopts all pneumatic components to achieve the global function, simple operation and convenient to maintenance
The machine is convenient to operate, it is visual about the sand mould, human operation, so it is effective to increase the productivity
Technical parameters:
Type | Z147W |
Foundry flask maximum dimension(mm) | 600x500x200 |
Worktable size(mm) | 700x550 |
Jolting load(kgf) | 400 |
Compressive stress(kgf) | 7500 |
Compressive process(mm) | 180 |
Moulding process(mm) | 200 |
Productivity(box/h) | 40-60 |
Jolting cylinder diameter(mm) | 150 |
Consumption of free air(M ³/H) | 0.4 |
Overall dimensions(LXWXH)mm | 1100x850x1800 |
