Metal Forming Machine/ Microseism Squeeze Molding Machine

US$ 2,000 - 2,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

HXD

Qingdao Huaxingda Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name HXD

Model Number zw147

Dimension(L*W*H) 1300*800*1700mm

Certification ISO CE

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

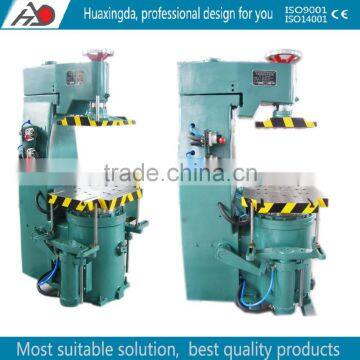

(Z147W microseism squeeze molding machine)

Technical characteristics:

Optimal design of the structure, the fuselage of the machine adopt the square chest and frame

structure, so it can significantly increase the rigidity of the fuselage!

The machine adopt the jolting technology, so it can significantly increase the compressive stress

to make the hardness up to HB90 and upgrade one level about the surface roughness, so it can

guarantee the quality

The shock part of the machine is buffer spring, so it can effectively reduce the impact to foundation

The pattern drawing mechanism is adopt the cylinder,crank, connecting rod, synchronizing shaft to

achieve the synchronism

The control part, it adopts all pneumatic components to achieve the global function, simple operation and convenient to maintenance

The machine is convenient to operate, it is visual about the sand mould, human operation, so it is

effective to increase the productivity

Technical parameters:

Type	Z147W
Foundry flask maximum dimension(mm)	600x500x200
Worktable size(mm)	700x550
Jolting load(kgf)	400
Compressive stress(kgf)	7500
Compressive process(mm)	180
Moulding process(mm)	200
Productivity(box/h)	40-60
Jolting cylinder diameter(mm)	150
Consumption of free air(M ³/H)	0.4
Overall dimensions(LXWXH)mm	1100x850x1800
