Wheat Polishing Machine Screen Filter Grain Seed Cleaner Grading Machine for Flour Mill Processing Line

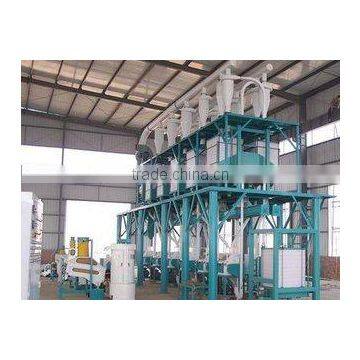

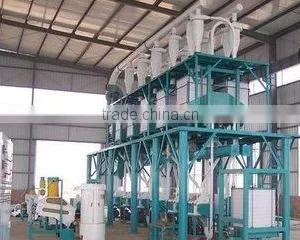

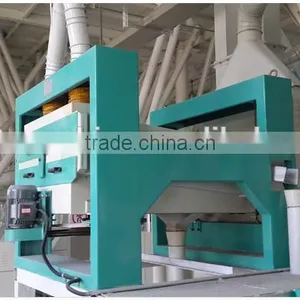

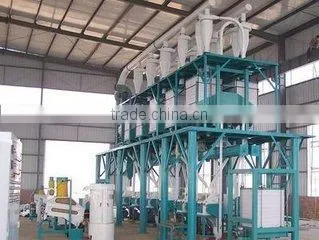

Wheat Polishing Machine Screen Filter Grain Seed Cleaner Grading Machine for Flour Mill Processing Line photo-1

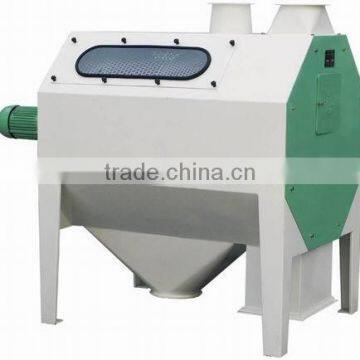

Wheat Polishing Machine Screen Filter Grain Seed Cleaner Grading Machine for Flour Mill Processing Line photo-2
Wheat Polishing Machine Screen Filter Grain Seed Cleaner Grading Machine for Flour Mill Processing Line photo-3
Wheat Polishing Machine Screen Filter Grain Seed Cleaner Grading Machine for Flour Mill Processing Line photo-4
Wheat Polishing Machine Screen Filter Grain Seed Cleaner Grading Machine for Flour Mill Processing Line photo-5
Wheat Polishing Machine Screen Filter Grain Seed Cleaner Grading Machine for Flour Mill Processing Line photo-6
US$ 600 - 2,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, GRAIN CLEANING
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, GRAIN CLEANING
Place of Origin Henan, China
Brand Name nONE
Model Number TQLZ-200
Voltage 220V/380V
Power(W) 1.5kw
Dimension(L*W*H) 2785*2480*1820mm
Weight 1800kg
Certification CE, ISO9001
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description
Have engaged in Grain and oil Machinery since1982 in China,
with 34years` experience and 54 engineers,
factory occupied area is over 100,000 square meters,
more than 3200 customers all around the world,

we greatly hope to have the opportunity to serve you.

Name:   Efficient vibrating screen

wheat seed cleaner ,
wheat filter machine ,
wheat grading machine ,
wheat polishing machine ,
flour mill processing line .


Product Application

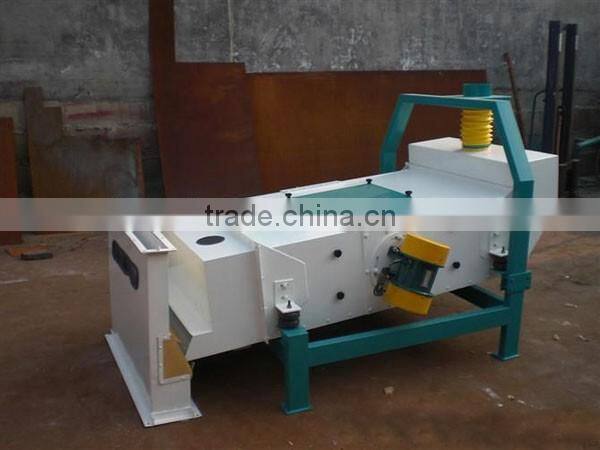

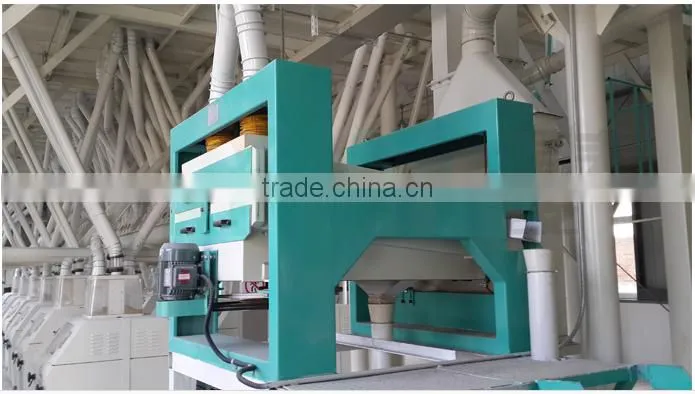

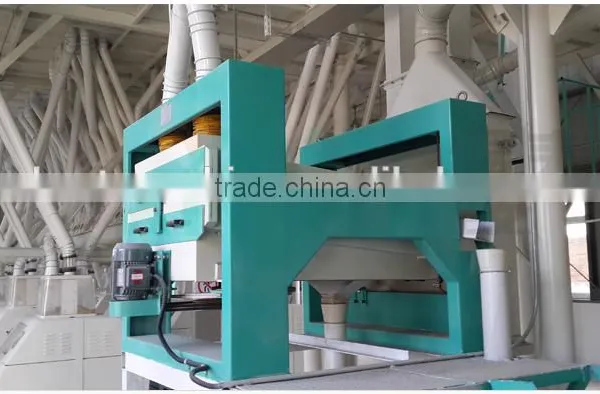

The main application for this efficient Vibrating Screen is to separate the impurity in the grain before milling process.

Efficient Vibrating Screen is mainly used for wheat/corn purifying in flour milling plant and grain storage bin.It is easy to classify the coarse grain and fine grain.It is also used to other cereal grains cleaning section.

This device adopt vibrating motor and Damping rubber spring such good parts.
Application scope:

Wildely used in the process plant of wheat,corn,rye,soybeans,oats,buckwheat,millet,rice,etc.
Animal feed plant;oil seed cleaning and classifying.

Features:
---High screen grading efficiency;
---Easy maintenance;
---Stainless steel screen

Technical  Parameter:

Model No.
Capacity
Power(Kw)
Weight(kg)
Size (L*W*H) mm
TQLZ-80
3 Ton / Hour
2*0.25
360
1900*1280*1500
TQLZ-100
8 Ton / Hour
2*.025
420
1785*1480*1720
TQLZ-150
20 Ton / Hour
2*.055
900
2285*1980*1820
TQLZ-200
25  Ton / Hour
2*.075
1400
2785*2480*1820

Main Features

1) Simple structure ,easy in installation and maintation.

2) Adopting advanced electric parts and operation parts.

3) It is featured of low power consumption, high production, and good sealing without flying powder .

Certifications
Related  Machines

Main Machine 1

Name: Tear type Hammer Mill(Crusher)
Brand: BEST
Original: CHINA
This machine is widely used to crush many kinds of grains and seeds( e.g. Maize,Wheat,Husks,Grain husk,etc.),and could process various grains very well with strict check of rotor balance. It is featured of high production,stable operating, good handling facility,is an ideal device for grain and fodder factory.

other Machine 2

Name: Gravity Germ Extractor
Brand: BEST
Original: Germany
Gravity Germ Extractor is an ideal auxiliary device for maize processing plant, fodder plant, alcohol plant. It is featured of low power consumption, high production, and good sealing without flying powder .

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Engineering Proposal  available.

* View /Visit our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Shipping & Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
