Manual Flour Mill Machinery Prices Rolling Sheat Flour Milling Machine Commercial Flour Mill Machine

Manual Flour Mill Machinery Prices Rolling Sheat Flour Milling Machine Commercial Flour Mill Machine photo-1

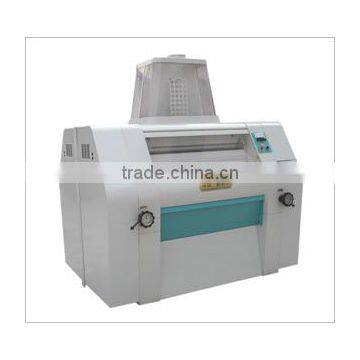

Manual Flour Mill Machinery Prices Rolling Sheat Flour Milling Machine Commercial Flour Mill Machine photo-2

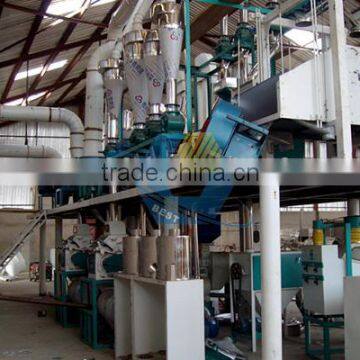

Manual Flour Mill Machinery Prices Rolling Sheat Flour Milling Machine Commercial Flour Mill Machine photo-3

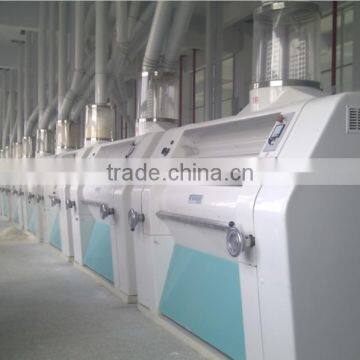

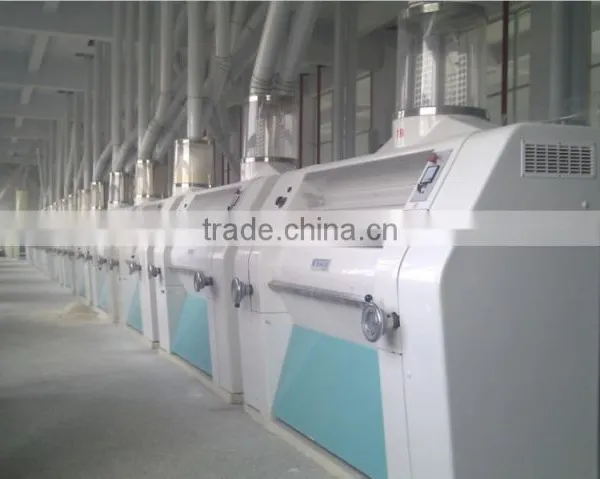

Manual Flour Mill Machinery Prices Rolling Sheat Flour Milling Machine Commercial Flour Mill Machine photo-4
US$ 900 - 9,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
None
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Tianjin
Delivery Detail:
Delivery time depends on order quantity.

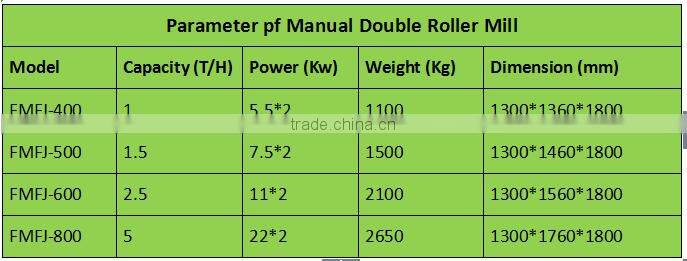

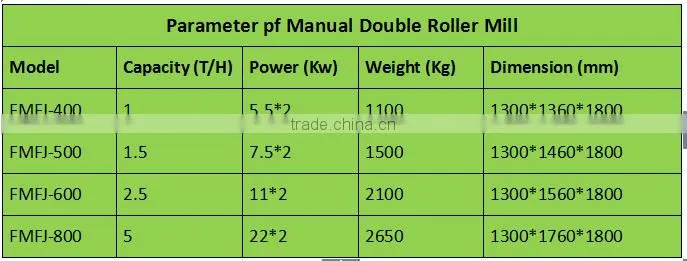

Condition New
Place of Origin Henan, China
Brand Name None
Model Number FMFJ-800
Production Capacity 100%
Voltage 220V/380V
Power(W) 44kw
Weight 2650kg
Dimension(L*W*H) 2050*1450*2050mm
Certification ISO9001:2008
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas
Product Description


Name: 1-5 T/H Manual Double Roller Mill for wheat flour Production Line

manual flour mill ,
flour mill machinery prices ,
rolling wheat flour milling machine ,
commercial flour mill machine ,


Application:
Manual Double Roller Mill is the main device for flour milling plant (wheat,corn,bean,etc.),The operating of the feeding roller and cluth could be controlled manually,the configures adjust according to different grinding characters.
The grinding of the most cereal grains,particularly those grains having a crease,is done with a roller mill.The roller mill system lends itself to a gradual reduction process.
Working Principle:
The grinding in a roller mill is accomplished on a pair of rolls rotating in opposite directions.At the nip(where two rolls approach each other),the two surfaces are going in the same direction.The rolls are generally run at different speeds,with the fast roll going about two and a half time the speed of the slow roll.Thus,in addition to the crushing action as a large particle passes the narrow gap between the two rolls,there is also a shearing action because of the speed differential.

Main Features

1)more automated processes make the flour mill possible to reduce labor intensity;
2) utilization of compressed air to transport grain via sealed pipes, thus preventing the flour from dispersing into the work environment;
3) lower temperature of the finished product due to a more efficient process, thereby greatly improving the flour's quality.


Certifications
Detailed Images

Main Machine 1

Name: Horizontal Bran Finisher

Brand: BEST

Original: CHINA

Horizon Bran Finisher is specially used to scrape endosperm from the bran with out undue production of fine stock,and to reduce oversize semolina during the milling process,then could increase the flour yield and lower the flour ratio of bran.

Main Machine 2

Name: Pneumatic Double Roller Mill
Brand: BEST
Original: China

Pneumatic Double Roller Mill is the main device for flour milling plant (wheat,corn,bean,etc.).The operating of the feeding roller and cluth could be controlled Pneumatically,the configures adjust according to different grinding characters.
The grinding of the most cereal grains,particularly those grains having a crease,is done with a roller mill.The roller mill system lends itself to a gradual reduction process.

Main Machine 3

Name: High Square Plansifer
Brand: Best
Original: China
High Square Plansifer is used to sift and grade various powdery material,is a very ideal sifter device for maize processing plant, fodder plant, alcohol plant. It is featured of low power consumption, high production, and good sealing without flying

Main Machine 4

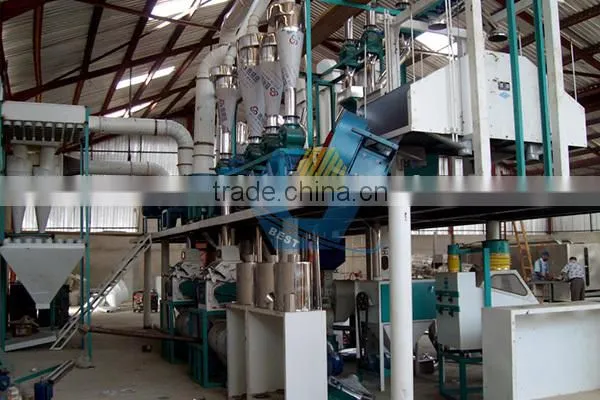

Name: Wheat Flour Mill Plant
Brand: BEST
Original: China
 With self-feeding system,it is applied to the grinding of the most cereal grains,particularly those grains having a crease,is done with a roller mill.The roller mill system lends itself to a gradual reduction process.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Proposal support.

*Visit our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine .

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Shipping & Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
