vegetable soybean oil refinery stystem
soy bean oil refining plant

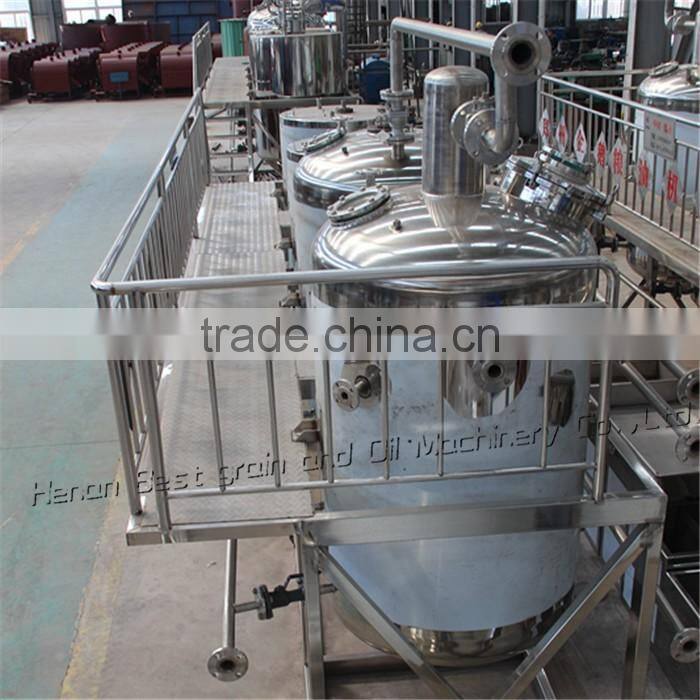

the stainless steel oil refinery unit
The bleached oil is drawn into deodorizin pot by vacuum pump, and begin to take distillation and reckon by time when vacuum degree reached above 755mmHg;
1. Deodorization time: 4 hours
2. Deodorization temperature: 240℃/755mmHg
260℃/759mmHg
3. Vacuum degree of deodorization: above 755mmHg
4. Whole deodorizing timing process technology: vapor distillation method.

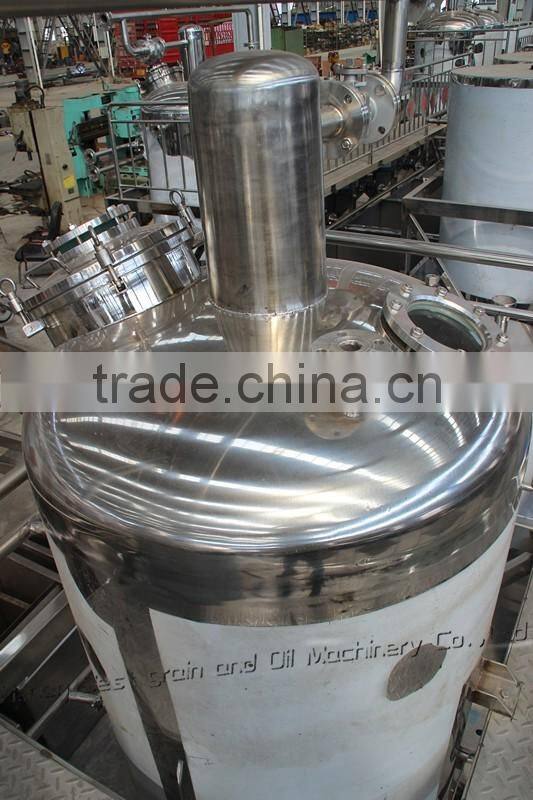

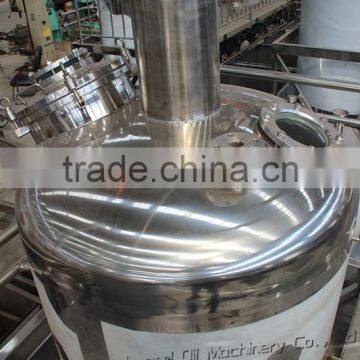

the soybean oil deodorizer pot
the vibration oil filter:

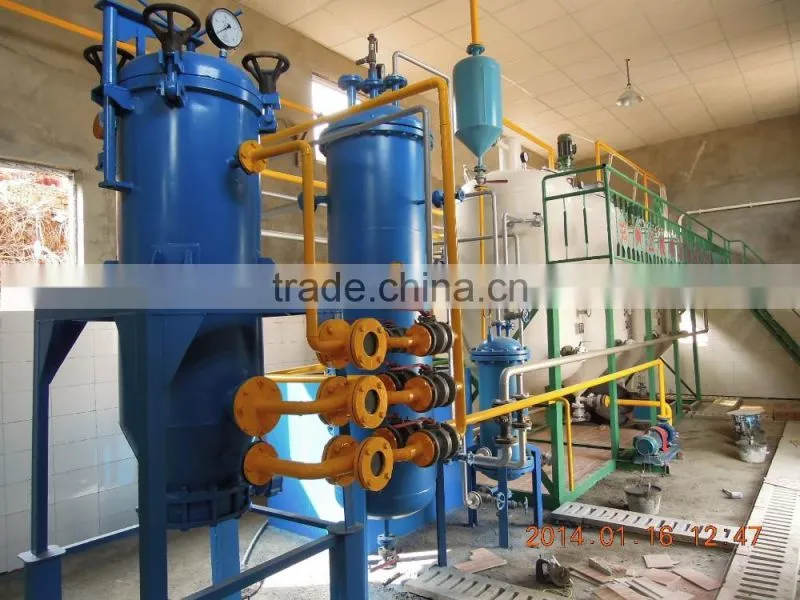

leaf filter for bleaching refining use.
The specification of crude palm oil
Item |
Standard |
Smell and taste |
The original smell and taste of crude oil |
Moisture and volatile matter (%) ≤ |
0.20 |
Insoluble impurities (%) ≤ |
0.20 |
Acid value (mgKOH/g) ≤ |
4.0 |
Peroxide value (mmol/kg) ≤ |
7.5 |
palm oil refine project
(1) Refining section: used to P-acid de-gumming, alkali refining de-acid and water rinsing.
(2) Decoloring section: used to remove off pigments, bleaching oils and grease dehydrate.
(3) Deodorizing section: to remove off the odor components in oil.
(4) Dewax: used to remove off the wax in the oil, in order to get the high quality oil.
(5) Heat-transfer oil stove: supply each device production needing heat energy, temperature reach
above 280°C.
(6) Steam generator: produce the needing steam for de-odoring and distillation.
(7) Vacuum pump: supply needing vacuum for dehydrate, de-color, deodor. Vacuum degree can
reach above 755mm Hg.
(8) Press filter: filter clay, filter out clear oil.
(9) Air compressor: blow dry bleached clay, blow empty the leftover oil in the press filter
palm oil production line,palm oil refining process
palm oil production line,palm oil refining process
(1) company information
1. Over 30 years of experience in grain and oil machinery processing.
2. Got CE ,ISO 9001:2008,FDA,SGS certificates approved.
3. Long term cooperation with famous gain colleges and mechanical design research institutes.
4. Keep doing research and application on oil equipment, protein extraction, phospholipid extraction, etc.
5. Equipped with modern manufacturing workshops,strictly inspection for materials and fabrication.
6. Overseas installation, commissioning, test-run and after-sales service is available.
7. Welcome to visit our factory anytime.
(2)scope of business
•Grain Processing Machinery
10-1000TPD wheat flour factory
10-1000TPD corn flour factory Ⅰ
10-500TPD rice mill and rice flour mill
10-500TPD Corn grits processing machinery
Sorghum dehulling and milling plant
Soybean dehulling production line
Cereals processing machinery
Grain silos and drying equipment
•Edible Oil Machinery
palm oil production line,palm oil refining process
5-3000TPD some major oils production line
Pre-treatment of major seeds line
100-3000TPD Solvent extraction plant
10-1000TPD Oil refining production line(physical and chemical)
20-3000TPD Dewaxing plant(sunflower seed oil, rice bran oil and corn germ oil)
Palm fruit pressing and palm oil fractionation process
(3)Our service
1.Our products have the high quality and high performance.we use the stainless steel instead
of the carbon steel.
2. We buy directly from the manufacturer for guaranteeing the quality.
3.Our welding worker should get the certificates.
4.Our electric machines all imported from Germany, like Simens motors
NO.3 client visit:
certificates:
F palm oil production line,palm oil refining process
amo palm oil production line,palm oil refining process
us brand in palm oil production line,palm oil refining process China! palm oil refine project ,oil mill project
