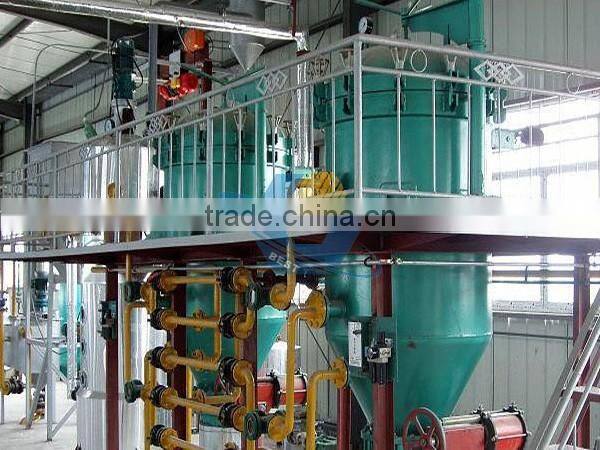

vegetable oil deodorizer system for palm oil deodotizer

vegetable oil deodorization system for palm or palm kenel oil deodorizer

the oil refinery unit

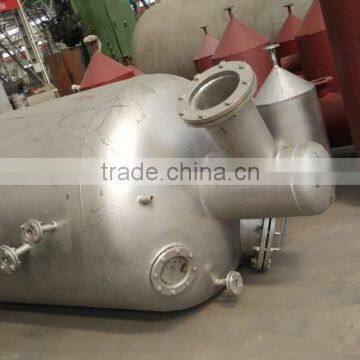

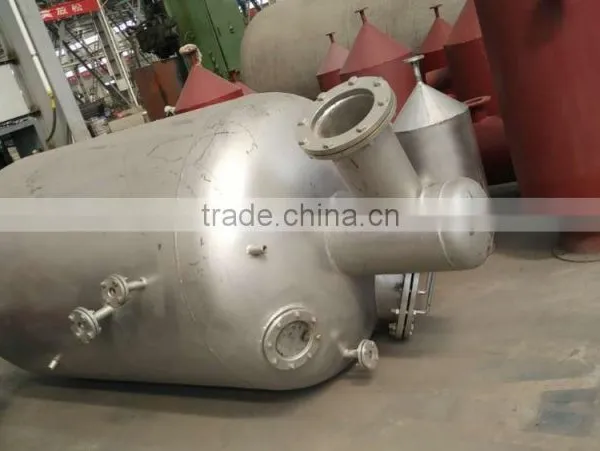

oil deodorizer pot

The bleached oil is drawn into deodorizin pot by vacuum pump, and begin to take distillation and reckon by time when vacuum degree reached above 755mmHg;

1. Deodorization time: 4 hours

2. Deodorization temperature: 240℃/755mmHg

                                                     260℃/759mmHg

3. Vacuum degree of deodorization: above 755mmHg

4. Whole deodorizing timing process technology: vapor distillation method.

the heat condition oil boiler:

the vibration oil filter:

a. Palm fruit reception:Transport FFB to reception station, flow to the scraper conveyer,   conveyed to sterilizing station.

b. Sterilizaiton: FFB transported by scraper conveyer fall into sterilizing tank, make FFB soft,get more oil yield.  sterilizing time 90~120mins, temperature 130~145°C

c.Threshing:  After sterilizing, fruit bunch transported to thresh machine, separate palm fruit and empty fruit bunch.

d:Digesting: Before press palm fruit, should be crushed separated pulp and kernel

e.Oil press: After crushing and digesting, the maxture of palm fruit and kernel fall into special palm oil presser

f.Clarification:Filter the oil and use centrifuge to separate oil and impurities.

g. Kernel recovery:After press, the kernel and cake will be transported to kernel recovery station. Separating nut and shell, then go to kernel oil press.

h.Palm kernel oil filteration: Use vibrating filter to filter the oil to remove impurities in it.

palm oil production line,palm oil refining process

leaf filter for bleaching refining use.

                                               The specification of crude palm oil

palm oil refine project

(1) Refining section: used to P-acid de-gumming, alkali refining de-acid and water rinsing.

(2) Decoloring section: used to remove off pigments, bleaching oils and grease dehydrate.

(3) Deodorizing section: to remove off the odor components in oil.

(4) Dewax: used to remove off the wax in the oil, in order to get the high quality oil.

(5) Heat-transfer oil stove: supply each device production needing heat energy, temperature reach

above 280°C.

(6) Steam generator: produce the needing steam for de-odoring and distillation.

(7) Vacuum pump: supply needing vacuum for dehydrate, de-color, deodor. Vacuum degree can

reach above 755mm Hg.

(8) Press filter: filter clay, filter out clear oil.

(9) Air compressor: blow dry bleached clay, blow empty the leftover oil in the press filter

 palm oil production line,palm oil refining process

                                                     The specification of refined palm oil

NO.2 Our company

palm oil production line,palm oil refining process

 (1) company information

1. Over 30 years of experience in grain and oil machinery processing.

2. Got CE ,ISO 9001:2008,FDA,SGS certificates approved.

3. Long term cooperation with famous gain colleges and mechanical design research institutes.

4. Keep doing research and application on oil equipment, protein extraction, phospholipid extraction, etc.

5. Equipped with modern manufacturing workshops,strictly inspection for materials and fabrication.

6. Overseas installation, commissioning, test-run and after-sales service is available.

7. Welcome to visit our factory anytime.

(2)scope of business

•Grain Processing Machinery

10-1000TPD wheat flour factory

10-1000TPD corn flour factory Ⅰ

10-500TPD rice mill and rice flour mill

10-500TPD Corn grits processing machinery

Sorghum dehulling and milling plant

Soybean dehulling production line

Cereals processing machinery

Grain silos and drying equipment

•Edible Oil Machinery

  palm oil production line,palm oil refining process

5-3000TPD some major oils production line

Pre-treatment of major seeds line

100-3000TPD Solvent extraction plant

10-1000TPD Oil refining production line(physical and chemical)

20-3000TPD Dewaxing plant(sunflower seed oil, rice bran oil and corn germ oil)

Palm fruit pressing and palm oil fractionation process

(3)Our service

1.Our products have the high quality and high performance.we use the stainless steel instead

of the carbon steel.

2. We buy directly from the manufacturer for guaranteeing the quality.

3.Our welding worker should get the certificates.

4.Our electric machines all imported from Germany, like Simens motors

NO.3 client visit:

palm oil production line,palm oil refining process

We have a solid strength, to ensure the quality, professional after-sales, won the trust of customers around the world.The following are some of our customers come to buy equipment to visit the experimental operation of photos  :
