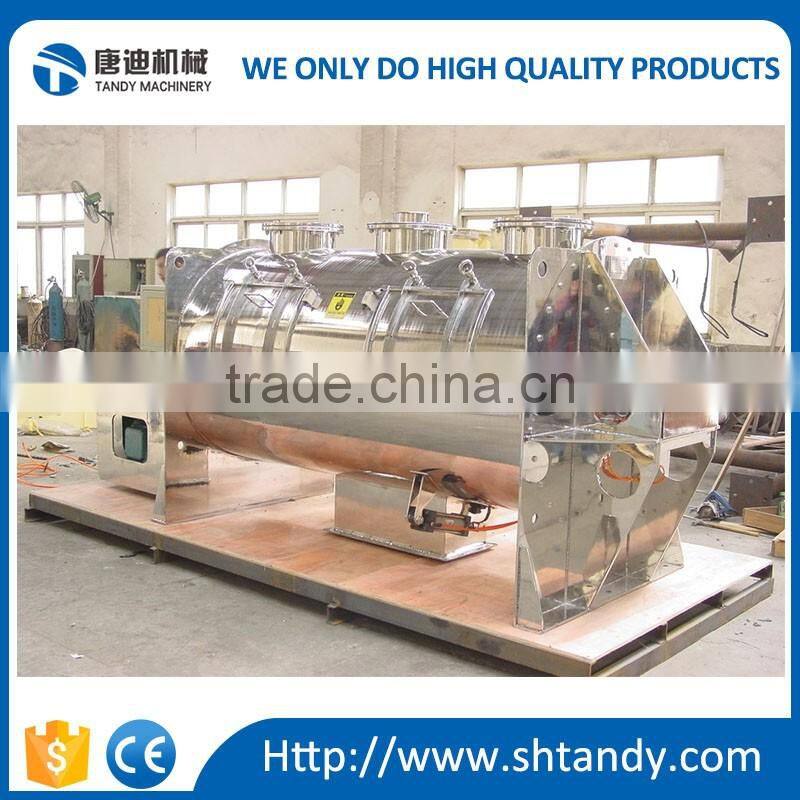

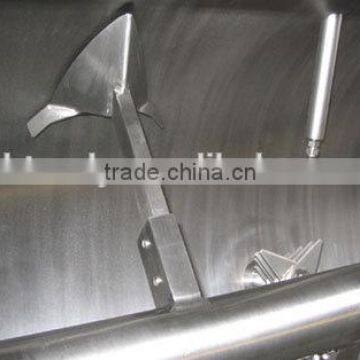

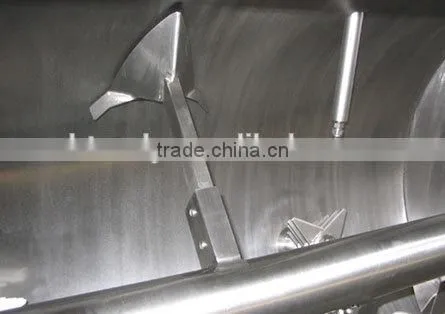

Plough shear mixer is formed circular cylinder barrel, drive mechanism, plough shears, discharging vent and other devices; plough share inside mixer is rotating with main axial so that the materials along with the cylinder cantillever radial circumferential turbulence, at the same time the radial material through shear group, was scattered by the high speed shear, constant alternation, compound, the materials is mixed uniformity in short time.
1)It is high speed to the materials for cutting, crushing, blending.
2)It is with attractive appearance under advance processing technology, there is smaller gap between plough shear and barrel.
3)Main shaft seal with PETP seal and air-purged seal.
4)It can be added heating or cooling jacket device if necessary.
| Model | TDLD-200 | TDLD-300 | TDLD-500 | TDLD-1000 | TDLD-1500 | TDLD-2000 | TDLD-3000 |
| Effective Volume | 200L | 300L | 500L | 1000L | 1500L | 2000L | 3000L |
| Fully Volume | 284L | 404L | 692L | 1286L | 1835L | 2475L | 3720L |
| Turning Speed | 53rpm | 53rpm | 45rpm | 45rpm | 39rpm | 39rpm | 37rpm |
| Total Weight | 420KG | 680KG | 1000KG | 1350KG | 1650KG | 2200KG | 2600KG |
| Total Power | 4KW | 5.5KW | 7.5KW | 11KW | 15KW | 18.5KW | 32KW |
| Dimension |
1850*860 *1100 |
1900*900 *1200 |
2050*1050 *1250 |
2500*1200 *1350 |
2950*1350 *1400 |
3300*1500 *1650 |
3350*1980 *2050 |
| Power Supply | 3P AC208-415V 50/60Hz |
||||||
Pre-Sales Service: After-Sales Service:
* Inquiry and consulting support. * Advisory service: Users encounter any problems in the use process, can call the company for technical support.
* Sample testing support. * Warranty: Warranty period of the product, if quality
* View our Factory. problems, the company is responsible for the warranty service.
