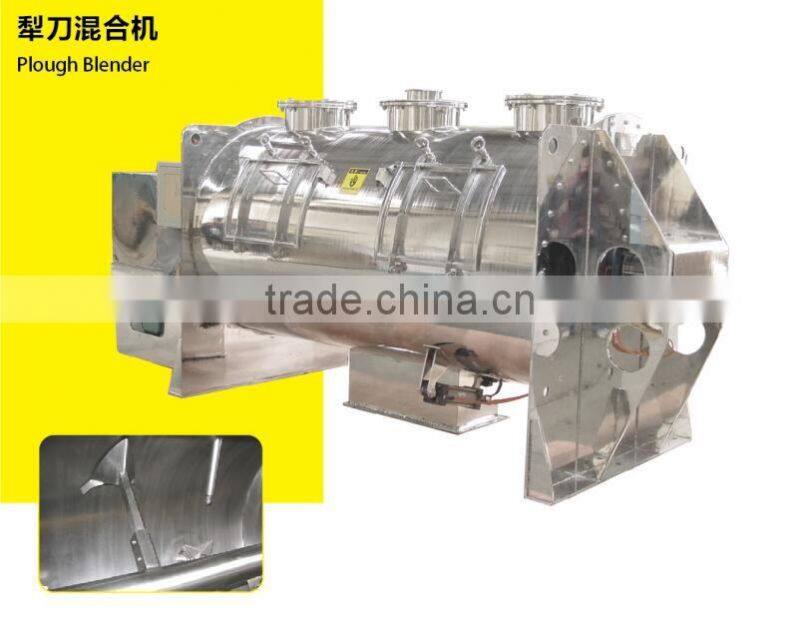

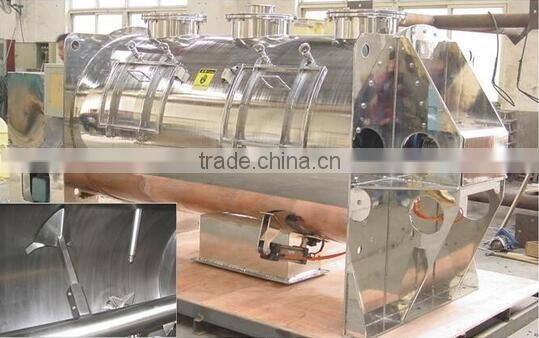

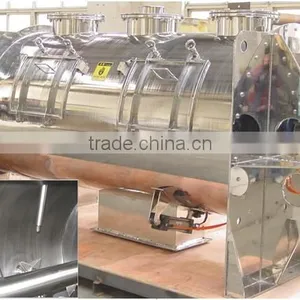

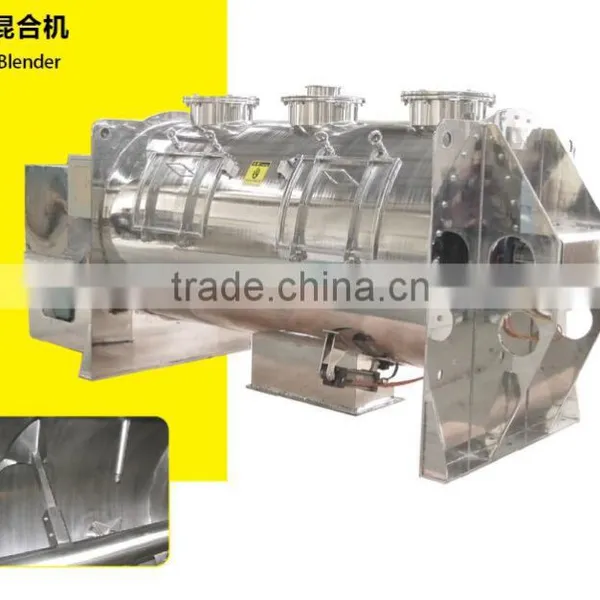

Plough shear mixer is formed circular cylinder barrel, drive mechanism, plough shear, discharging vent and other devices; plough share inside mixer is rotating with main axial so that the materials allong with the cylinder cantilever radial circumferential turbulence, at the same time the radial material through shear group, was scattered by the high speed shear, constant alternation, compound, the materials is mixed uniformity in short time.
Main Technical Data:
| Model | TDLD-200 | TDLD-300 | TDLD-500 | TDLD-1000 | TDLD-1500 | TDLD-2000 |
| Effective Volume | 200L | 300L | 500L | 1000L | 1500L | 2000L |
| Fully Volume | 184L | 404L | 692L | 1286L | 1835L | 2475L |
| Turning Speed | 53rpm | 53rpm | 45rpm | 45rpm | 39rpm | 39rpm |
| Total Weight | 420kg | 680kg | 1000kg | 1350kg | 1650kg | 2200kg |
| Total Power | 4kw | 5.5kw | 7.5kw | 11kw | 15kw | 18.5kw |
| Length | 1850 | 1900 | 2050 | 2500 | 2950 | 3300 |
| Width | 860 | 900 | 1050 | 1200 | 1350 | 1500 |
| Height | 1100 | 1200 | 1250 | 1350 | 1400 | 1650 |
| Power Sopply | 3P AC208-415V 50/60Hz | |||||
Engineers avaliable service machinery overseaas
SHANGHAI TANDY MACHINERY MANUFACTURING CO., LTD
Contact Us:
Tel:86-21-67750139
Fax: 86-21-37695289
