Industrial Factory Price Wood Pellet Machine Mill For Sale
Wood Pellet Machine Mill Description:
Wood Pellet Machine Mill is widely used to press all kinds of high-quality biomass material to be solid pellet as burning fuel for fire place or pellet stove, it is specially designed for mass industrial production of wood pellets!
Fanway Wood Pellet Machine Mill is a professional manufacture of all kinds of biomass pellet machine especially Wood Pellet Machine Line . It takes use of special feed pellet mill strengthening the driving part, such as, ring die, press roll and hoop. Main drive adopts high accurate gear drive, with an output of 20% higher than belt drive. The Wood/Feed Pellet Mill contains the high quality bearing and soil seal which ensure high efficient and steady driving with low noise.
The frequency- conversion speed regulation control strengthening feed conditioner, guarantee quality of the wood pellet. All of our bearing on the Wood Pellet Machine Mill are imported NSK, SKF which can ensure the machine has a long working life. The international advanced compensation type flexible coupling is of novel and compact structure, safety, low noise and less trouble.
Raw Material of the Wood Pellet Machine Mill
Raw material of the Wood Pellet Machine Mill has a wide range, it can be tree branch, wood waste, sawdust, biomass waste, bamboo dust, rice husk, straw, peanut shell, palm nut, coconut shell, cotton seed, elephant grass, sugar cane, pulp, olive slag, organic manure etc
Technical parameters of the Wood Pellet Machine Mill
No |
Item |
Model |
|||
MKLH350 |
MKLH420 |
MKLH508 |
MKLH558 |
||
1 |
Capacity |
0.5-0.6T/H |
1-1.2T/H |
1.5T/H |
2T/H |
2 |
Main motor power |
55KW |
110KW |
110KW |
132KW |
3 |
Feeding auger power |
1.5KW |
2.2KW |
2.2KW |
1.KW |
4 |
Forced feeder power |
0.75KW |
1.1KW |
1.1KW |
1.5KW |
5 |
Ring die inner diameter |
350mm |
420mm |
508mm |
558mm |
6 |
Ring die rotary speed |
336RPM |
287RPM |
287RPM |
|
7 |
Feeding auger rotary speed |
12-120RPM |
|
||
8 |
Pellet size |
6mm; 8mm; 10mm; 12mm etc |
|
||
9 |
Roller number |
2 |
|||
10 |
Noise |
≤86dB(A) |
≤90dB(A) |
||
11 |
Roller and die working temperature |
≤85℃ |
|||

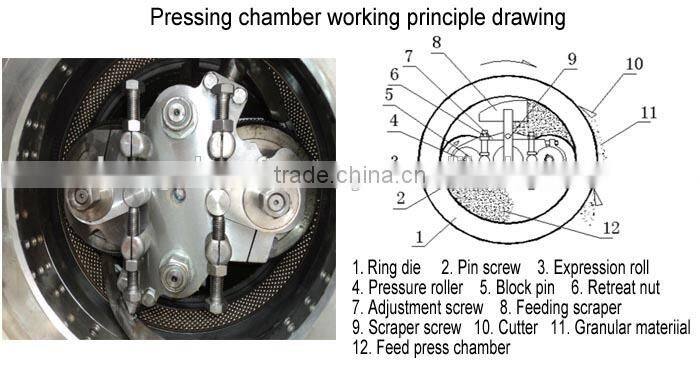

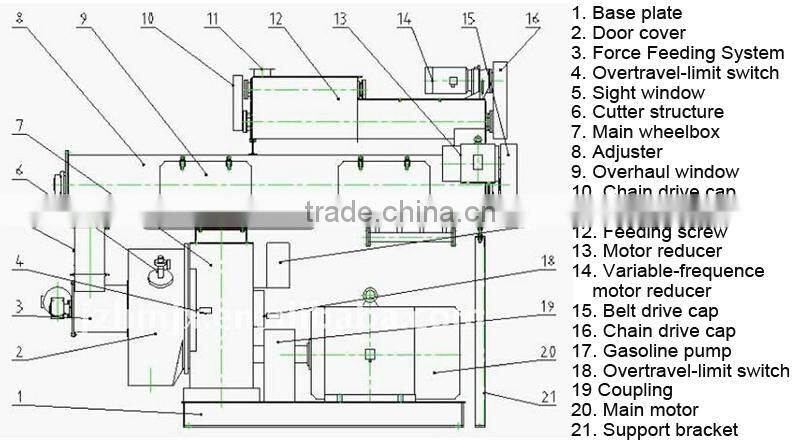

Internal structure of Wood Pellet Machine Mill

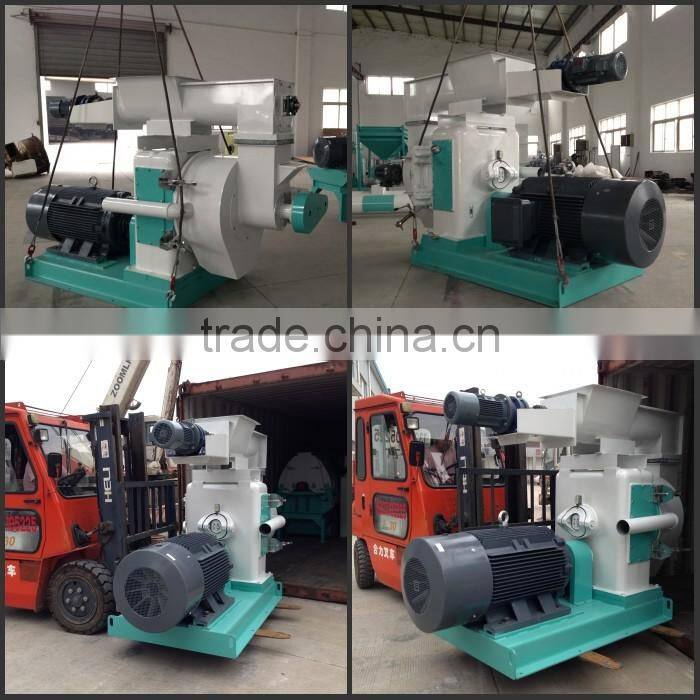

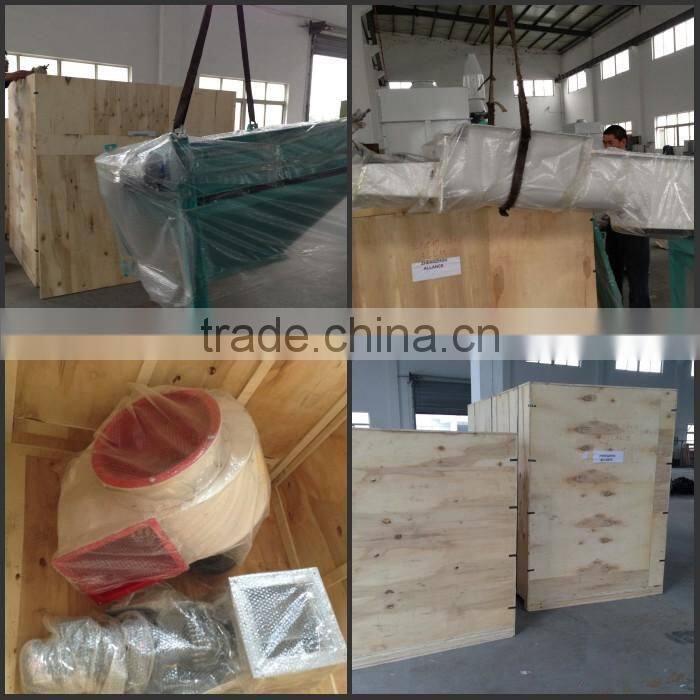

Packaging &Shipping
1, Packaging: Plastic fim and strong wooden case as exported standard, if your order is big we suggest shipping by container
2, Shipping: By sea, By air; Express (DHL/FedEx; Railway; Highway)

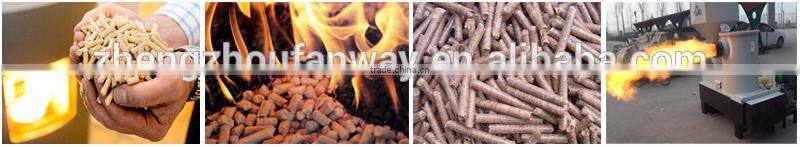

Finished pellets
1, Factory exported directly;
2, The most advanced design, double feeders;
3, Imported SKF bearings ensure high quality machine;
3, Ring die hoist design;

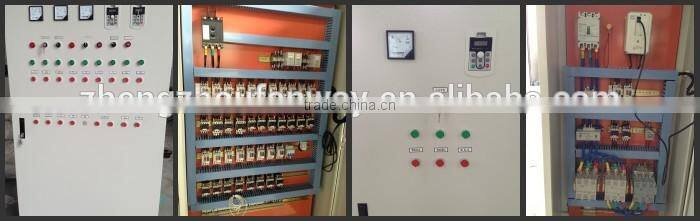

4, Equipped with auto cooling and oil adding system;
5, Provide whole production line from raw material to finished pellets and packaging;
6, Perfect and in time after-sale service system!
1, Help you to choose suitable Wood Pellet Machine Mill
2, Design Wood Pellet Machine Mill according to your special requirements;
3, Answer your questions and give your detailed explanation timely and effectively;
4, After you confirm the order, if we have the right Pellet Machine For Wood in stock, we will arrange delivery immediately. If not, we will arrange production for you at once,
5, Assist to draft the construction scheme and detailed process
6, For the installation, we can sent technical personnel to the scene of the on-the-spot guidance equipment installation, debugging and training operators, if you have any questions for the Pellet Machine For Wood just let me know feel free, by email, phone, whatsapp, wechat etc, we will reply you in shortest time! Fanway Machinery will always together with you and never let you down!

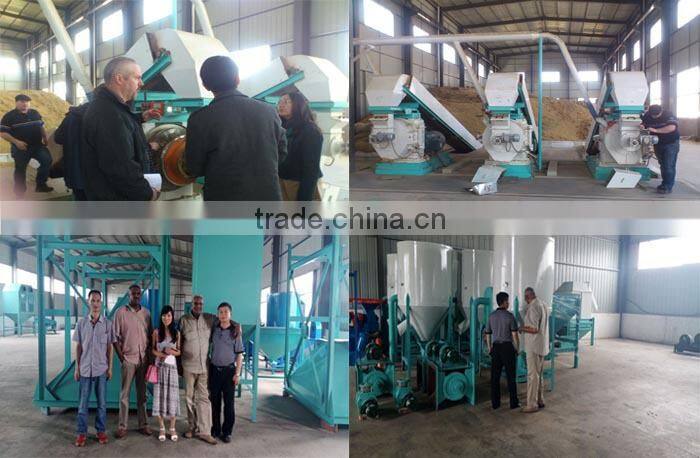

Exported countries and customizers visit us
Fanway Wood Pellet Machine Mill Factory:
ZHENGZHOU FANWAY MACHINERY MANUFACTURING CO.,LTD is the qualified pellet machinery manufacturer which has devoted in developing, designing and manufacturing top quality Machine for Pellet equipment. Engineers research and experiment pellet mill and pellet plant design; skilled labor assembly machines: feed pellet mill, Vertical Ring Die Machine for Pellet , fish feed pellet machine, hammer mill, feed mixing machine, sawdust drying machine, fish feed pellets cooling machine, pellets packaging machine, etc.
Furthermore our experienced and professional Wood Pellet Machine Mill consultants can offer you turnkey wood pellet plant solution, animal feed pellet plant solution, fish feed pellet plant solution as well as pellets production solution.
