High Quality Three Channel Tumble Dryer for Sawdust/Sand/Coal
- 3 Set / Sets per Month
- Qingdao/Shanghai
- T/T Credit Card
Product Details
| Condition: | New | Type: | Rotary Drying Equipment | Place of Origin: | Henan, China |
| Brand Name: | FANWAY | Model Number: | All | Voltage: | 380V/50HZ or customed |
| Power(W): | 5.5-30KW | Dimension(L*W*H): | Depend on the detail model | Weight: | Depend on the detail model |
| Certification: | CE | Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

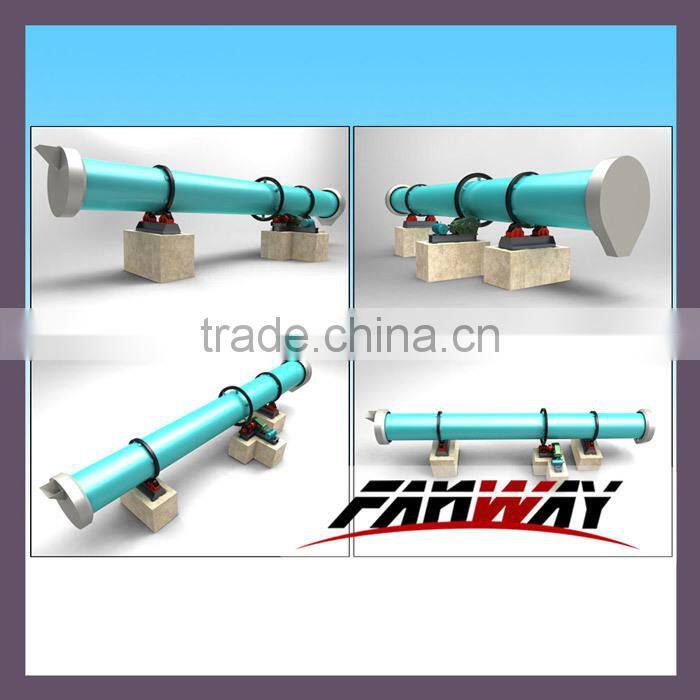

High Quality Three Channel Tumble Dryer for Sawdust/Sand/Coal
Specifications
1) large production capacity
2) low energy consumption and high efficiency drying effect
3) easy installation and operation
Applications
Applicable for drying big particles, heavy particles in chemical, mining, and metallurgy, such as mining area, cinder of blast furnace, coal, powder of metal, phosphate fertilizer and thiamine.
For drying the powder or particles with special requirements, such as HP foaming blowing agent, residue of alcohol, light calcium carbonate, active clay, magnetic powder, graphite, sawdust and residue of medicine. Suitable for large lot continuous production.
Main Product Characteristics:

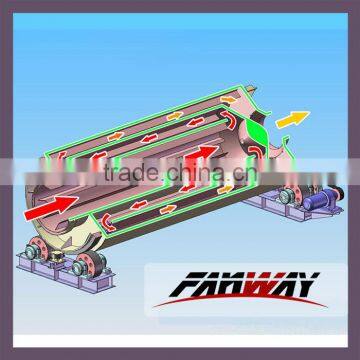

1. The design of three layer composite structure makes material dried for three times in the dryer, high output and low energy consumption.
2. Multi-layered structure improves heat preservation effect in the drying cylinder and improves heat utilization.

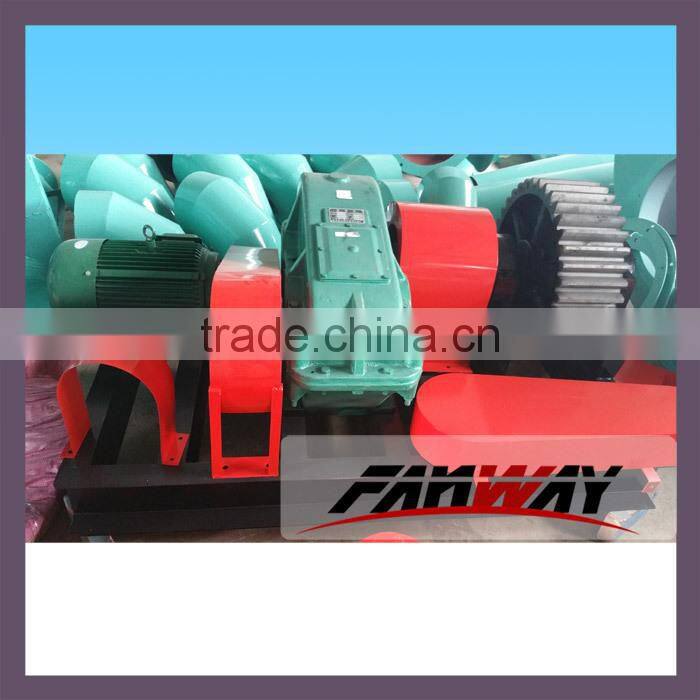

3. The rolling speed of the dryer is adjustable, high-precision gear transmission and smooth operation.

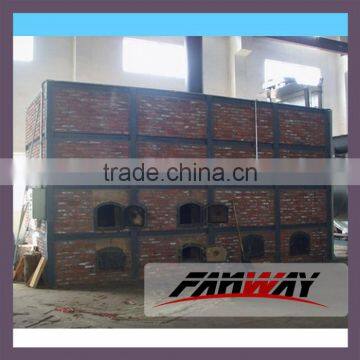

4. The stove is in optimized design with new structure.
5. Gas collection system is equipped to prevent flames into the drying cylinder.

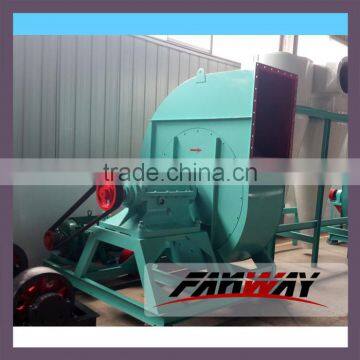

6. Water cooling suction air fan makes sure the fan lifetime.
7. Heat recovery system can be equipped.
Product Technical Parameters
| Model | MGZG1600 | MGZG1800 | MGZG2100 | MGZG2400 | MGZG2800 |
| Power (KW) | 5.5 | 8 | 8 | 22 | 30 |
| Yield (T/H) | 1.0-1.5 | 1.5-2.5 | 2.5-3.5 | 3.5-5.0 | 5.0-8.0 |
| Drum Diameter (mm) | 1900 | 2100 | 2400 | 2900 | 3500 |
| Drum Length (mm) | 8000 | 9000 | 10000 | 12000 | 16000 |
| Suction suction power (KW) | Y5-47-11D | Y5-47-11D | Y5-47-11D | Y5-47-12.4D | Y5-47-12.4D |
| Supporting suction power (KW) | 22 | 30 | 55 | 75 | 90 |
| Hourly stove heat (Kcal) | 900 | 1200 | 1800 | 3000 | 5000 |

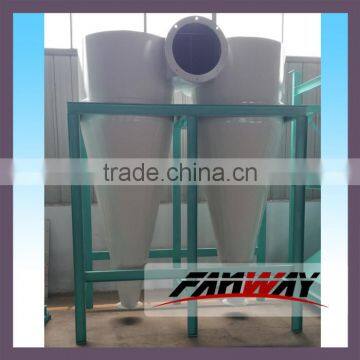

| Supporting Cyclone quantity | 1 | 2 | 4 | 4 | 6 |
Note: The temperature requirement for the air inflow to the drying cylinder is to be 280-350℃. The capacity is based on the powder raw material with 30%-50% moisture content.
Zhengzhou Fanway Machinery is a professional supplier of the different kind of machinery. Our products have been exported to all over the world, especially to Europe, North and South America, Africa, East and South Asia, Australia, New Zealand, etc.
Through our joint efforts, we have gained good reputation from our clients in communication, products quality, delivery, after-service, and other aspects.
We are looking forward to establishing a long-term and mutual-benefit business relationship with all of you. We will assure you our competitive price with better quality and service. We believe you will get what you expect from our company.
1. Professional solution design, high quality machines, competitive price.
2. Consult and answer all your questions within 24 hours.
3. Factory layout design according to your requirement.
4. Fast delivery: 10-15 working days for single machine. 35-40 working days for complete line.
5. Professional engineer, overseas installation and commissioning, training.
6. Service life long technical support.
1. Q: Are you a Factory or Trading Company?
A: We are direct factory. We are looking forward to your visit.
2. Q: Where is your factory located?
A: Our factory is located in Zhengzhou, Henan Province. It is about 40 mins to Zhengzhou Airport.
3. Q: How do you control the quality of your products?
A: 1) We arrange inspection and test before delivery and take photos and videos for your check.
2) We will arrange the engineer to make installation for the production line and commissioning.
