Professional Manufacturer Rice Paddy Dryer/Seed Grain Dryer
Rice Paddy Dryer/Seed Grain Dryer/Sawdust Drum Dryer is your best choice to dry biomass materials of high moisture content and produce high quality biomass fuel. Biomoass materials go through dryer can improve biomass fuel efficiency of 5-15% and lower down emission. It can be used for drying a wide range of biomass materials such as alfalfa, straw, sawdust, marigold, wood shavings, manioc waste, bagasse, colza cake and leaves, etc. Featured by low energy consumption and high drying efficiency, Rice Paddy Dryer/Seed Grain Dryer/Sawdust Drum Dryer is widely employed in chemical industry, metallurgy, building and mine digging, etc. The heat efficiency reaches 80% which is much more higher than other drying equipment.

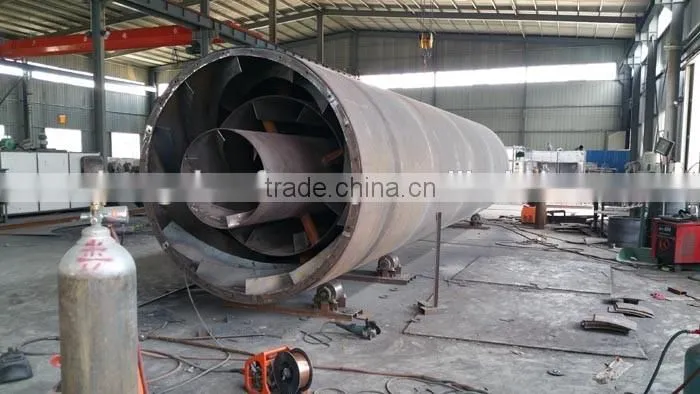

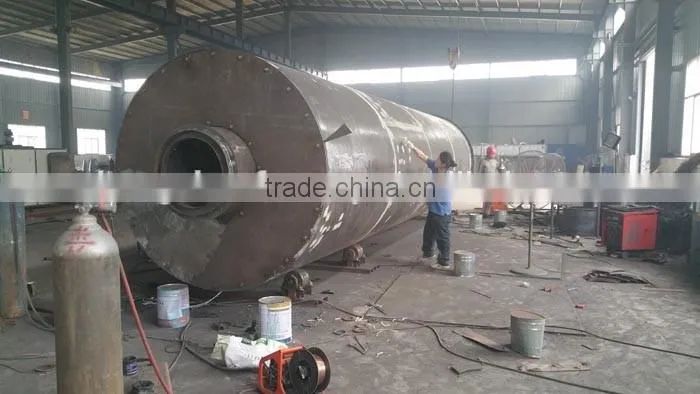

We have single layer Rice Paddy Dryer/Seed Grain Dryer/Sawdust Drum Dryer and three layers Rice Paddy Dryer/Seed Grain Dryer/Sawdust Drum Dryer, three layers dryer is our newest dryer, it is more short than the single layer dryer, convenient for transport, high drying efficiency and better drying effect!

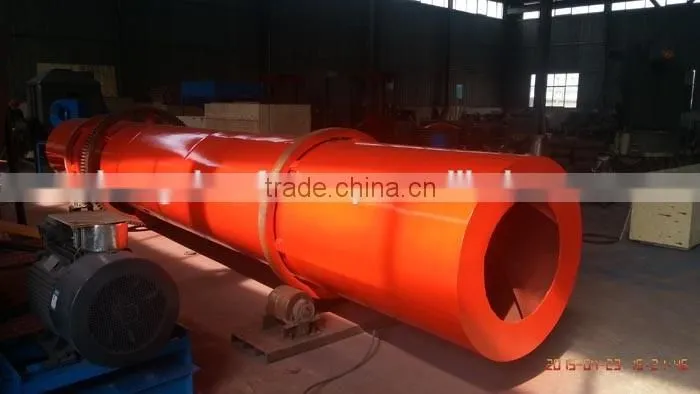

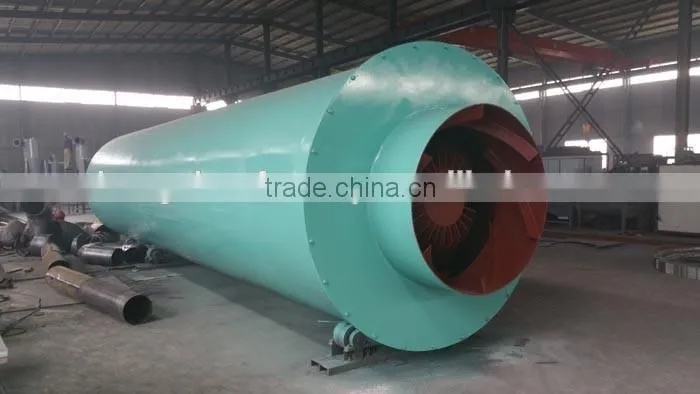

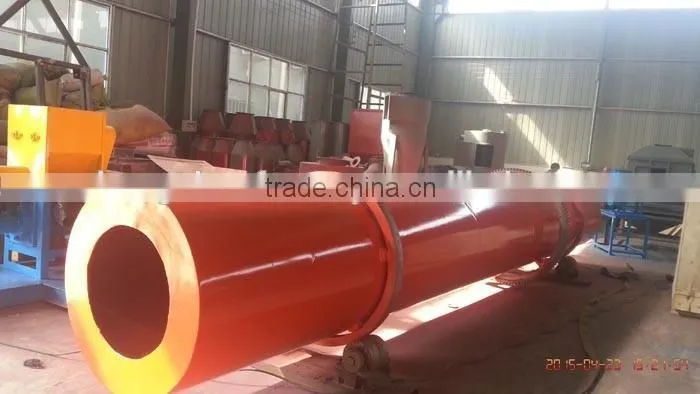

Rice Paddy Dryer/Seed Grain Dryer/Sawdust Drum Dryer Structure

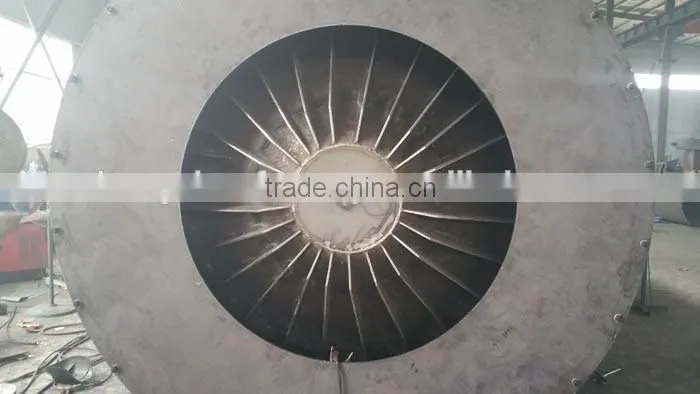

Consist of rotating cylinder, transmission device, supporting device and shoveling plates,etc, Rice Paddy Dryer/Seed Grain Dryer/Sawdust Drum Dryer is a horizontal type drying device. This wood drying machine is reasonably designed and with large drying capacity of 1-3t/h. There are shoveling plates in different angels welded throughout inner side of the whole drum. The feeding place is set door ring and rotary shoveling plates to avoid materials splashing.
Industrial Rice Paddy Dryer/Seed Grain Dryer/Sawdust Drum Dryer Features
1. High temperature and heat air can dry biomass materials quickly and evenly.
2. High self-insulation thermal efficiency of 70% inside the drum.
3. Economic space occupation, easy to build and maintain.
4. Moisture content requirements is adjustable, depending on clients’ demand.
5. Stable drying process, low energy consumption, low cost.
Rice Paddy Dryer/Seed Grain Dryer/Sawdust Drum Dryer Principle
Biomass materials with high moisture content are fed into rotary cylinder; shovelling plates inside the drum walls raise up materials and these materials scatter down to move in a spiral forward style. During the constant raising up and scattering down, biomass materials can absorb enough amount of heat, at the same time, the drying time is extended to achieve the best drying effects.
Technical parameters of single layer Rice Paddy Dryer/Seed Grain Dryer/Sawdust Drum Dryer
Model |
FWGZ800 |
FWGZ1000 |
FWGZ1200 |
FWGZ1500 |
FWGZ2000 |
FWGZ2200 |
Power (KW) |
3 |
4 |
5.5 |
7.5 |
11 |
15 |
Capacity(T/H) |
0.5-0.7 |
0.7-0.9 |
1-1.2 |
1.2-1.7 |
1.7-2.2 |
2.2-3 |
Drum Diameter (mm) |
800 |
1000 |
1200 |
1500 |
1800 |
2000 |
Drum Length (mm) |
8000 |
10000 |
11000 |
11500 |
16000 |
18000 |
Air fan power (KW) |
5.5 |
7.5 |
11 |
18.5 |
22 |
30 |
Air lock power (KW) |
0.55 |
0.75 |
0.75 |
1.1 |
1.5 |
2.2 |
Cyclone diameter(mm) |
600 |
800 |
1000 |
1200 |
1000 |
1200 |
Supporting Cyclone quantity |
1 |
1 |
1 |
1 |
2 |
2 |
Technical parameters of three layers Rice Paddy Dryer/Seed Grain Dryer/Sawdust Drum Dryer
Model |
MGZG1600 |
MGZG1800 |
MGZG2100 |
MGZG2400 |
MGZG2800 |
Power (KW) |
5.5 |
8 |
15 |
22 |
30 |
Capacity(T/H) |
1-1.5 |
1.5-2.5 |
2.5-3.5 |
4-5 |
6-8 |
Drum Diameter (mm) |
1900 |
2100 |
2200 |
2900 |
3500 |
Drum Length (mm) |
8000 |
9000 |
10000 |
12000 |
16000 |
Air fan power (KW) |
15 |
30 |
55 |
75 |
90 |
Air lock power (KW) |
1.1 |
2.2 |
3 |
5.5 |
7.5 |
Hourly stove heat (Kcal) |
900 |
1200 |
1800 |
3000 |
5000 |
Cyclone diameter(mm) |
1000 |
1100 |
1200 |
1300 |
1300 |
Supporting Cyclone quantity |
1 |
2 |
4 |
4 |
6 |

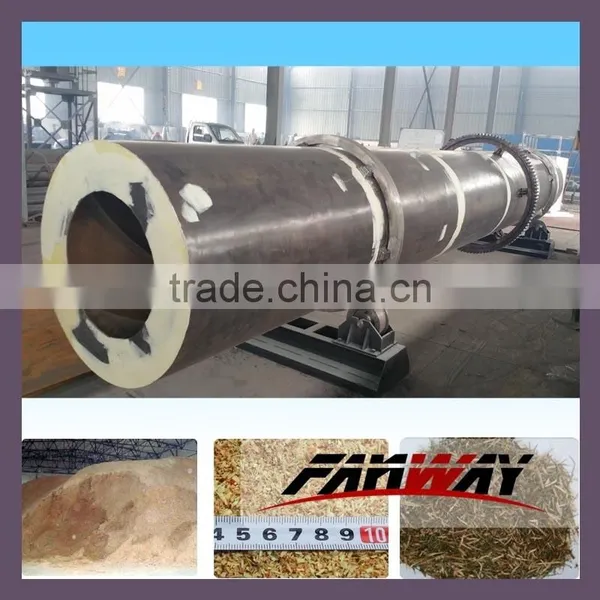

Material can be dried by Rice Paddy Dryer/Seed Grain Dryer/Sawdust Drum Dryer
Packagingand shipping of three layers Rice Paddy Dryer/Seed Grain Dryer/Sawdust Drum Dryer
Packaging in container, transport by sea

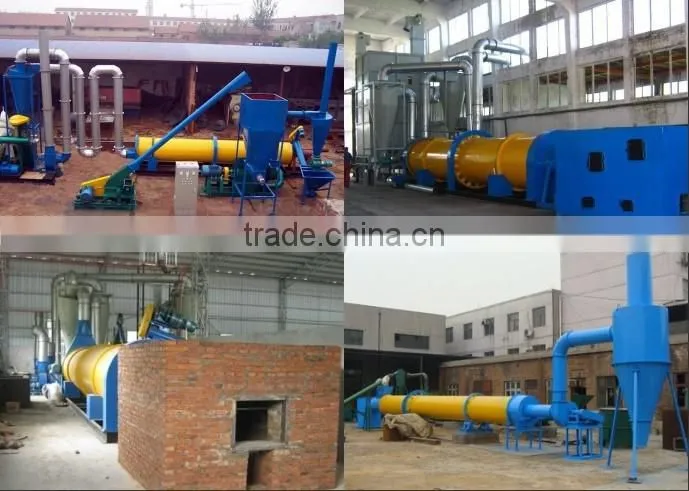

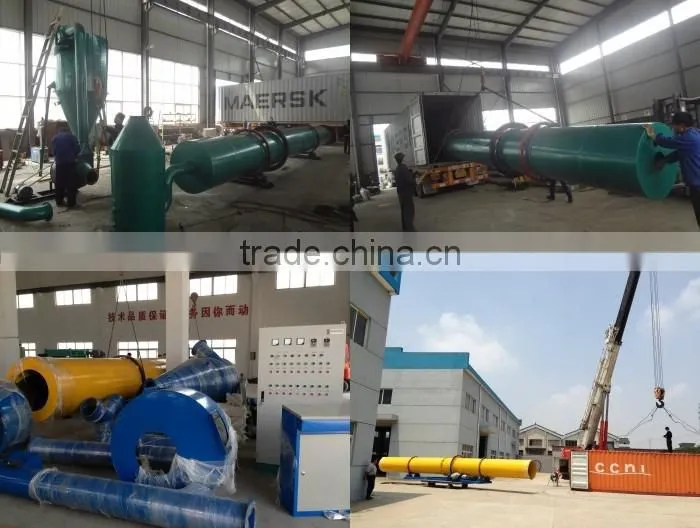

Delivery photos of three layers Rice Paddy Dryer/Seed Grain Dryer/Sawdust Drum Dryer

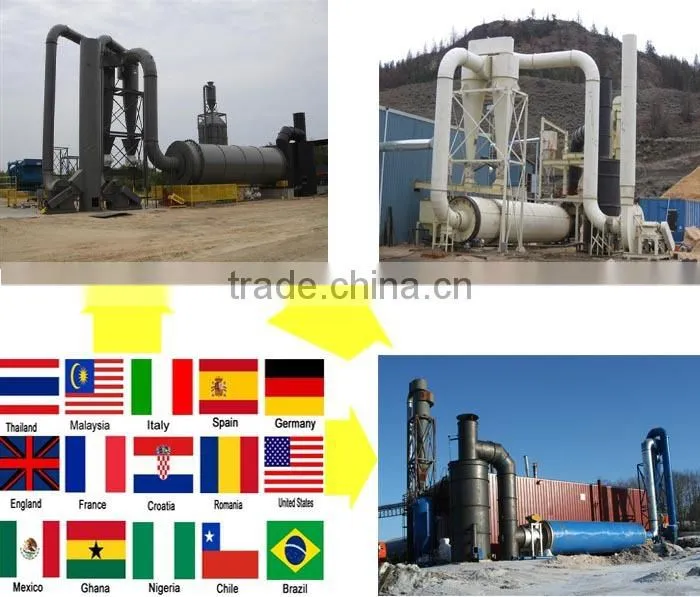

Exported countries and customers visit our factory
1, Help you to choose suitable Rice Paddy Dryer/Seed Grain Dryer/Sawdust Drum Dryer
2, Design Dryer according to your special requirements;
3, Answer your questions and give your detailed explanation timely and effectively;
4, After you confirm the order, if we have the right Dryer in stock, we will arrange delivery immediately. If not, we will arrange production for you at once,
5, Assist to draft the construction scheme and detailed process
6, For the installation, we can sent technical personnel to the scene of the on-the-spot guidance equipment installation, debugging and training operators, if you have any questions for the Rice Paddy Dryer/Seed Grain Dryer/Sawdust Drum Dryer just let me know feel free, by email, phone, whatsapp, wechat etc, we will reply you in shortest time! Fanway Machinery will always together with you and never let you down!

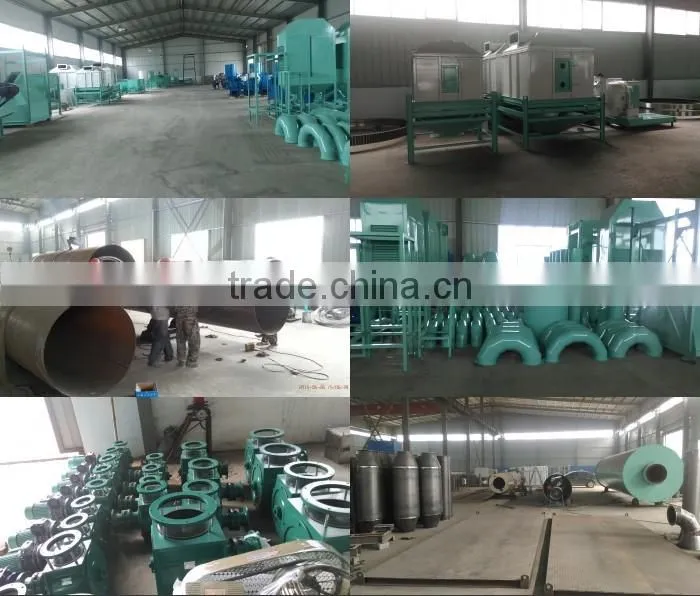

Fanway Rice Paddy Dryer/Seed Grain Dryer/Sawdust Drum Dryer Factory:
ZHENGZHOU FANWAY MACHINERY MANUFACTURING CO.,LTD is the qualified pellet machinery manufacturer which has devoted in developing, designing and manufacturing top quality pellet making equipment. Engineers research and experiment pellet mill and pellet plant design; skilled labor assembly machines: feed pellet mill, wood pellet mill, fish feed pellet machine, hammer mill, feed mixing machine, Industrial Dryer Machine/Rice Paddy Dryer/Seed Grain Dryer , fish feed pellets cooling machine, pellets packaging machine, etc.
Furthermore our experienced and professional Rice Paddy Dryer/Seed Grain Dryer/Sawdust Drum Dryer project consultants can offer you turnkey wood pellet plant solution, animal feed pellet plant solution, fish feed pellet plant solution as well as pellets production solution.
