motor or engine driven 7.5kw 10hp multifunctional diesel hammer mill
Description
A motor or engine driven 7.5kw 10hp multifunctional diesel hammer mill is a crusher that can grind, pulverize, and crush a wide range of materials. This crusher employs a rain of hammer blows to shatter and disintegrate the material. Hammer mills produce a finish product size that is dependent upon...
1.Openings in perforated screens or grate bars
2.Number, size and type of hammers
3.Grinding plate setting
4.Rotor speed
Why call it Multifuctional?

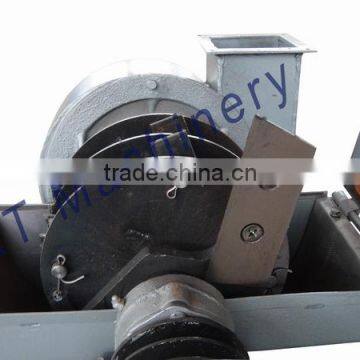

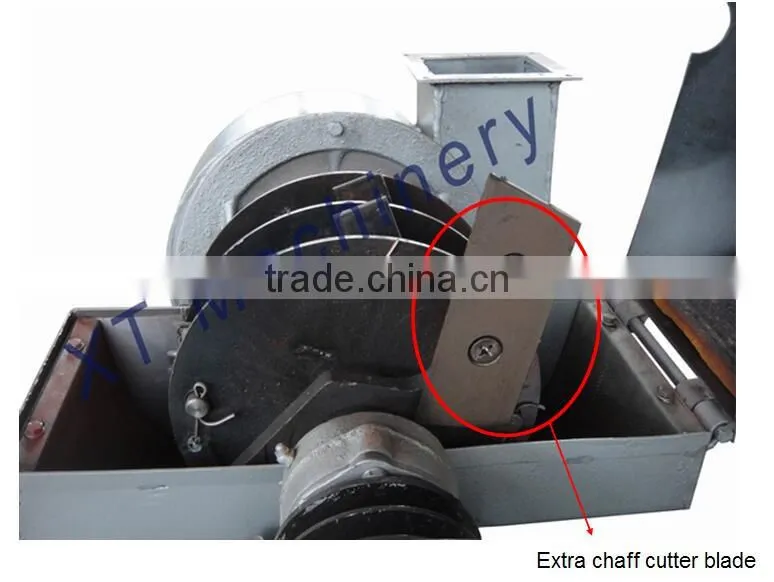

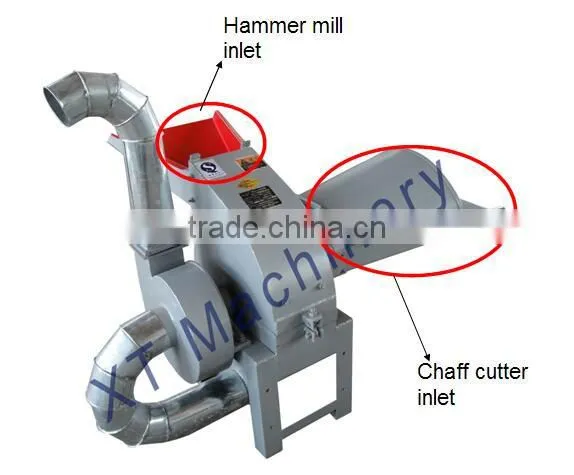

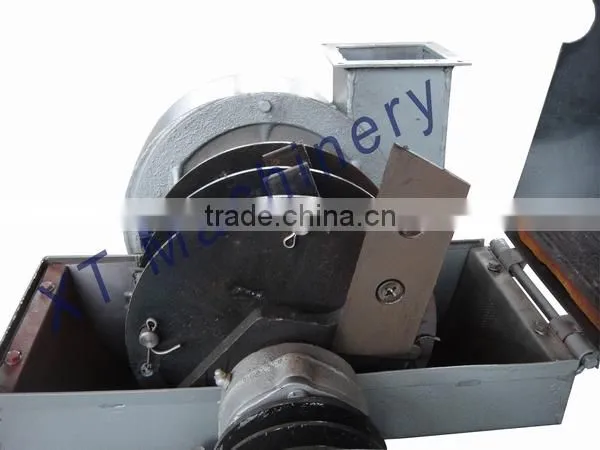

Besides a hammer mill of itself, there is an extra hopper and blade, which can be used as a mini chaff cutter. This blade is working at the same time when hammer mill shaft is rotating.
Push stalks of corn, wheat or other long stem straws, you will get regular size of chaffs, without buying one more chaff cutter at all.
Features
1.Compact design with high production efficiency, easy operation and maintenance;
2.Quenched manganese steel hammers with hardness HRC56-62 ,shows excellent wear-resistance;
3.Upper and lower housing made from cast iron for long service life;
4.Different mesh screens available
5.Electric motor or engine powered
Application
Motor or engine driven 7.5kw 10hp multifunctional diesel hammer mill is widely uesd in livestock farm, feed processing plant, Ethanol plant and many industries to grind:
1. Roughages
stalks of rice, wheat, corn, sorghum, oat and bean
vine and stem of tuber crops
corn cobs
husks and shells
hay
2. Concentrates such as corn/maize, wheat and most kernels
3.Others:
Coal
Biomass & Biofuels
Crab, Clam & Oyster Shells
Salt Cake
Waste papers and more...
Why PTO hammer mill?
A power take-off (PTO) is any of several methods for taking power from a power source, such as a running engine, and transmitting it to an application such as an attached implement or separate machines.

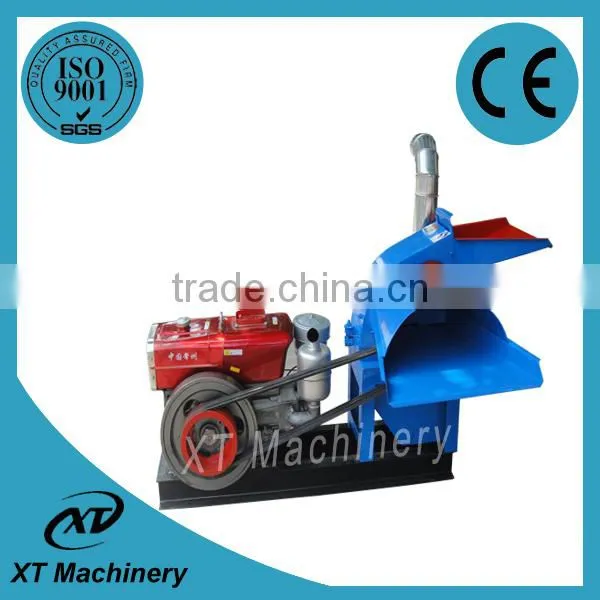

Voltage in countries differ from one another, or not accessible for some regions. Motor or engine driven 7.5kw 10hp multifunctional diesel hammer mill can be driven by a electric motor or a diesel for your choice.
Particle Size Refference
Parameter
Model | Weight (KG) | Dimension (MM) | Match Power | Hammer Qty | Screen Mesh (MM) | |
(KW) | (HP) | |||||
9FQ36 | 85 | 900*750*1070 | 5.5-7.5 | 8-10 | 12 | 0.5-5 |
9FQ40 | 160 | 945*835*768 | 7.5-11 | 10-15 | 12 | 1.2-8 |
9FQ42 | 125 | 730*650*920 | 11-15 | 15-20 | 16 | 1.2-20 |
9FQ50 | 280 | 1150*1200*1090 | 11-15 | 15-20 | 16 | 1.2-20 |
9FQ50-40 | 275 | 1100*930*1030 | 22-37 | 30-50 | 24 | 1.2-30 |
9FQ50-60 | 380 | 1157*1355*1030 | 37-45 | 50-60 | 36 | 1.2-30 |
Output
Model | Output (kg/h) | |||
Corn kernel | Corn Straw | Peanut shell | Bean Stalk | |
9FQ36 | 500-600 | 80-150 | 300-350 | 130-230 |
9FQ40 | 800-1000 | 80-150 | 300-350 | 130-230 |
9FQ42 | 800-1000 | 100-200 | 400-500 | 200-250 |
9FQ50 | 1000-1200 | 150-250 | 500-600 | 250-300 |
9FQ50-40 | 2000-2500 | 370-440 | 900-1100 | 460-550 |
9FQ50-60 | 2500-3000 | 800-1200 | 1100-1500 | 900-1125 |
Above output refers to water content of materials less than 14% with 2mm screen mesh
Output may vary with screen mesh
