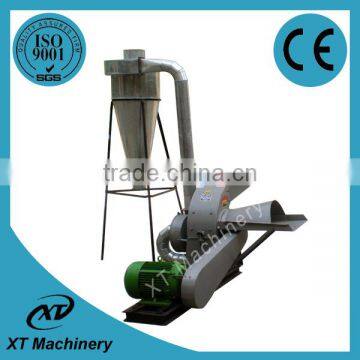

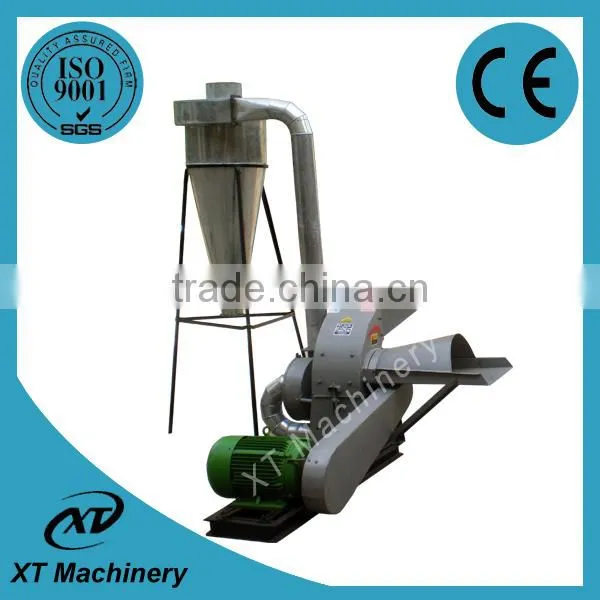

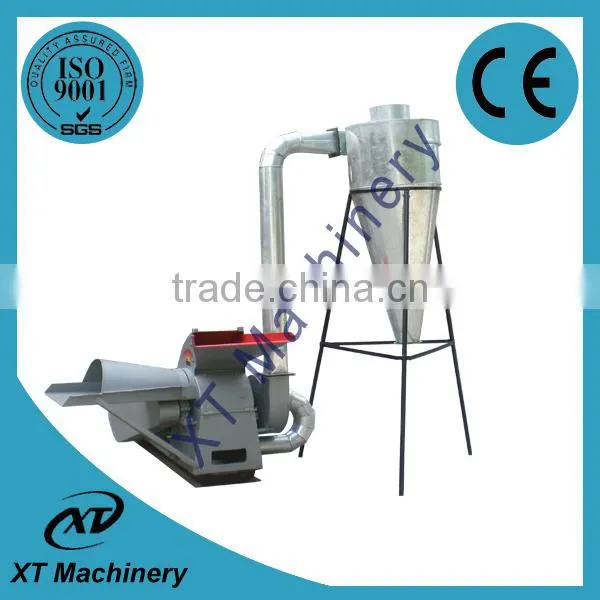

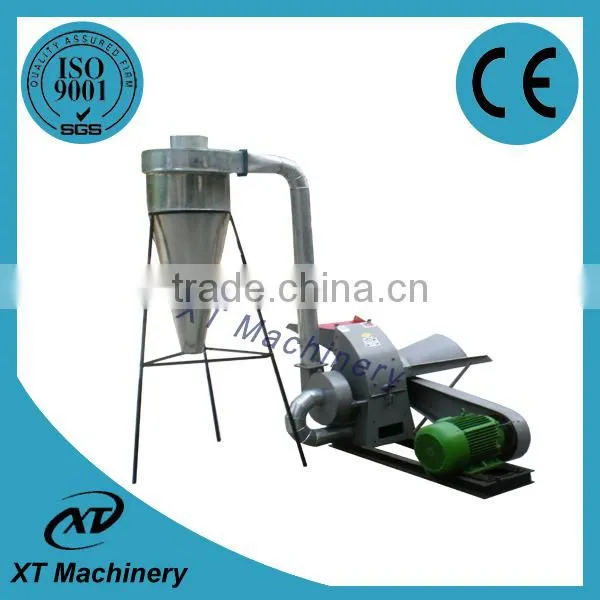

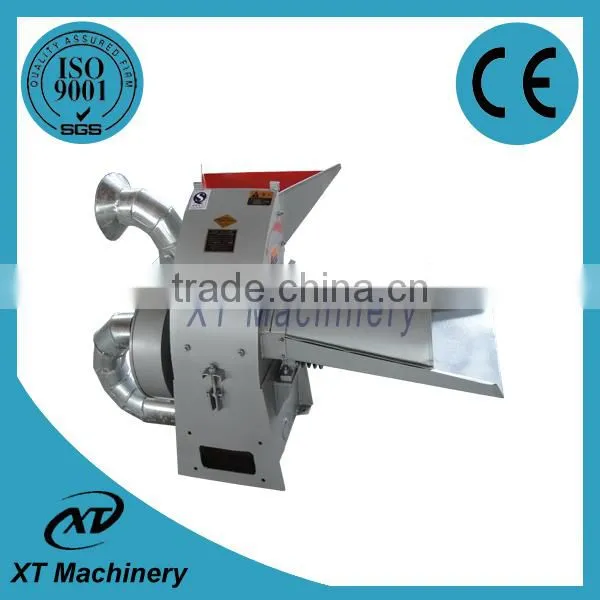

11kw 15hp livestock poultry multifunctional hammer mill with cyclone
Description
A 11kw 15hp livestock poultry multifunctional hammer mill with cyclone is essentially a steel drum containing a vertical or horizontal rotating shaft or drum on which hammers are mounted.
The hammers are free to swing on the ends of the cross, or fixed to the central rotor. The rotor is spun at a high speed inside the drum while material is fed into a feed hopper.
The material is impacted by the hammer bars and is thereby shredded and expelled through screens in the drum of a selected size.
Why call it Multifuctional?

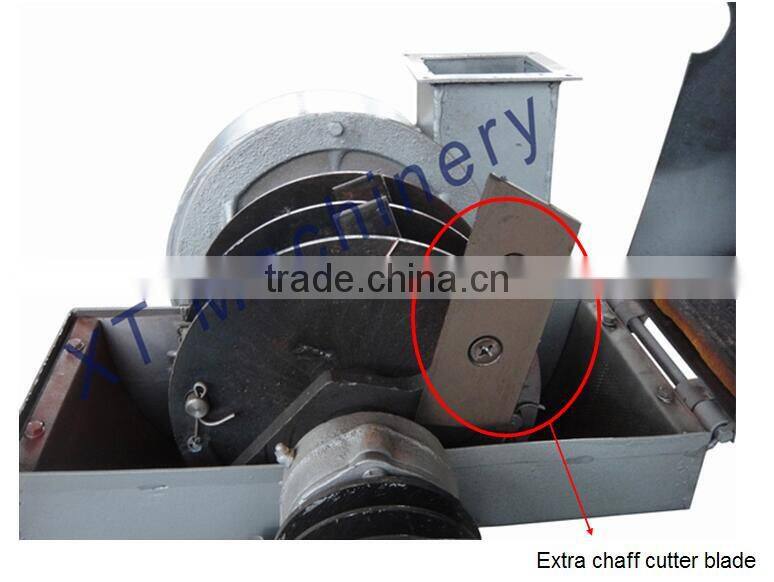

Besides a hammer mill of itself, there is an extra hopper and blade, which can be used as a mini chaff cutter. This blade is working at the same time when hammer mill shaft is rotating.
Push stalks of corn, wheat or other long stem straws, you will get regular size of chaffs, without buying one more chaff cutter at all.
Features
1.Compact design with high production efficiency, easy operation and maintenance;
2.Quenched manganese steel hammers with hardness HRC56-62 ,shows excellent wear-resistance;
3.Upper and lower housing made from cast iron for long service life;
4.Different mesh screens available
5.Electric motor or engine powered
Application
11kw 15hp livestock poultry multifunctional hammer mill with cyclone is widely uesd in livestock farm, feed processing plant, Ethanol plant and many industries to grind:
1. Roughages
stalks of rice, wheat, corn, sorghum, oat and bean
vine and stem of tuber crops
corn cobs
husks and shells
hay
2. Concentrates such as corn/maize, wheat and most kernels
3.Others:
Coal
Biomass & Biofuels
Crab, Clam & Oyster Shells
Salt Cake
Waste papers and more...
Why PTO hammer mill?
A power take-off (PTO) is any of several methods for taking power from a power source, such as a running engine, and transmitting it to an application such as an attached implement or separate machines.
Voltage in countries differ from one another, or not accessible for some regions. 11kw 15hp livestock poultry multifunctional hammer mill with cyclone can be driven by a electric motor or an engine for your choice.
Particle Size Refference
Parameter
Model |
Weight (KG) |
Dimension (MM) |
Match Power |
Hammer Qty |
Screen Mesh (MM) |
|
(KW) |
(HP) |
|||||
9FQ36 |
85 |
900*750*1070 |
5.5-7.5 |
8-10 |
12 |
0.5-5 |
9FQ40 |
160 |
945*835*768 |
7.5-11 |
10-15 |
12 |
1.2-8 |
9FQ42 |
125 |
730*650*920 |
11-15 |
15-20 |
16 |
1.2-20 |
9FQ50 |
280 |
1150*1200*1090 |
11-15 |
15-20 |
16 |
1.2-20 |
9FQ50-40 |
275 |
1100*930*1030 |
22-37 |
30-50 |
24 |
1.2-30 |
9FQ50-60 |
380 |
1157*1355*1030 |
37-45 |
50-60 |
36 |
1.2-30 |
Output
Model |
Output (kg/h) |
|||
Corn kernel |
Corn Straw |
Peanut shell |
Bean Stalk |
|
9FQ36 |
500-600 |
80-150 |
300-350 |
130-230 |
9FQ40 |
800-1000 |
80-150 |
300-350 |
130-230 |
9FQ42 |
800-1000 |
100-200 |
400-500 |
200-250 |
9FQ50 |
1000-1200 |
150-250 |
500-600 |
250-300 |
9FQ50-40 |
2000-2500 |
370-440 |
900-1100 |
460-550 |
9FQ50-60 |
2500-3000 |
800-1200 |
1100-1500 |
900-1125 |
Above output refers to water content of materials less than 14% with 2mm screen mesh
Output may vary with screen mesh
