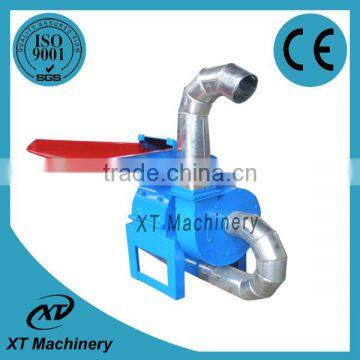

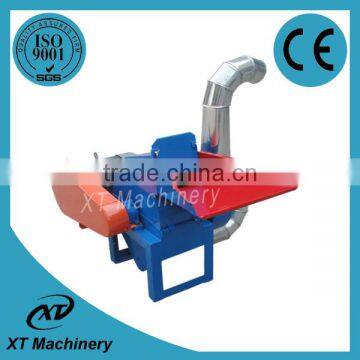

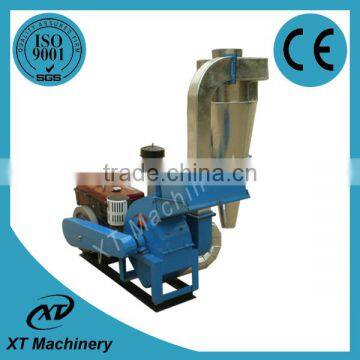

5.5kw 8hp small hammer mill with cyclone for livestock poultry
Description
5.5kw 8hp small hammer mill with cyclone for livestock poultry is used in the pelleting process to take materials which are many different sizes and turns them into smaller more consistent size particles.
In the 5.5kw 8hp small hammer mill with cyclone for livestock poultry, hammers strike the material over and over until it is small enough to fit through a screen.
A large amount of air is also moving through the hammermill and it drags the material small enough to make it through the holes in the screen away to the next process.
Features
1.Compact design with high production efficiency, easy operation and maintenance;
2.Quenched manganese steel hammers with hardness HRC56-62 ,shows excellent wear-resistance;
3.Upper and lower housing made from cast iron or carbon steel for long service life;
4.Different mesh screens available
5.Electric motor or engine powered
casted Upper and lower hammer mill housing
Application
5.5kw 8hp small hammer mill with cyclone for livestock poultry is widely uesd in livestock farm, feed processing plant, Ethanol plant and many industries to grind:
1. Roughages
stalks of rice, wheat, corn, sorghum, oat and bean
vine and stem of tuber crops
corn cobs
husks and shells
hay
2. Concentrates such as corn/maize, wheat and most kernels
3.Others:
Coal
Biomass & Biofuels
Crab, Clam & Oyster Shells
Salt Cake
Waste papers and more...
Why PTO hammer mill?
A power take-off (PTO) is any of several methods for taking power from a power source, such as a running engine, and transmitting it to an application such as an attached implement or separate machines.
Voltage in countries differ from one another, or not accessible for some regions. 5.5kw 8hp small hammer mill with cyclone for livestock poultry can be driven by a electric motor or an engine for your choice.
Particle Size Refference
Parameter
Model | Weight (KG) | Dimension (MM) | Match Power | Hammer Qty | Screen Mesh (MM) | |
(KW) | (HP) | |||||
9FQ36 | 85 | 900*750*1070 | 5.5-7.5 | 8-10 | 12 | 0.5-5 |
9FQ40 | 160 | 945*835*768 | 7.5-11 | 10-15 | 12 | 1.2-8 |
9FQ42 | 125 | 730*650*920 | 11-15 | 15-20 | 16 | 1.2-20 |
9FQ50 | 280 | 1150*1200*1090 | 11-15 | 15-20 | 16 | 1.2-20 |
9FQ50-40 | 275 | 1100*930*1030 | 22-37 | 30-50 | 24 | 1.2-30 |
9FQ50-60 | 380 | 1157*1355*1030 | 37-45 | 50-60 | 36 | 1.2-30 |
Output
Model | Output (kg/h) | |||
Corn kernel | Corn Straw | Peanut shell | Bean Stalk | |
9FQ36 | 500-600 | 80-150 | 300-350 | 130-230 |
9FQ40 | 800-1000 | 80-150 | 300-350 | 130-230 |
9FQ42 | 800-1000 | 100-200 | 400-500 | 200-250 |
9FQ50 | 1000-1200 | 150-250 | 500-600 | 200-300 |
9FQ50-40 | 2000-2500 | 370-440 | 900-1100 | 460-550 |
9FQ50-60 | 2500-3000 | 800-1200 | 1100-1500 | 900-1125 |
Above output refers to water content of materials less than 14% with 2mm screen mesh
Output may vary with screen mesh
Package
More Product
Click here see 9FQ-36 series Hammer Mill
Click here see 9FQ-40 series Hammer Mill
Click here see 9FQ-42 series Hammer Mill
Click here see 9FQ-50 series Hammer Mill
