Feed hammer mill for livestock
Description
9FQ Series feed hammer mill for livestock is used in the pelleting process to take materials which are many different sizes and turns them into smaller more consistent size particles. In the hammermill, hammers strike the material over and over until it is small enough to fit through a screen. A large amount of air is also moving through the hammermill and it drags the material small enough to make it through the holes in the screen away to the next process.
Features
1.Compact design with high production efficiency, easy operation and maintenance;
2.Quenched manganese steel hammers with hardness HRC56-62 ,shows excellent wear-resistance;
3.Upper and lower housing made from cast iron or 4mm thick steel plate for long service life;
4.Different mesh screens available

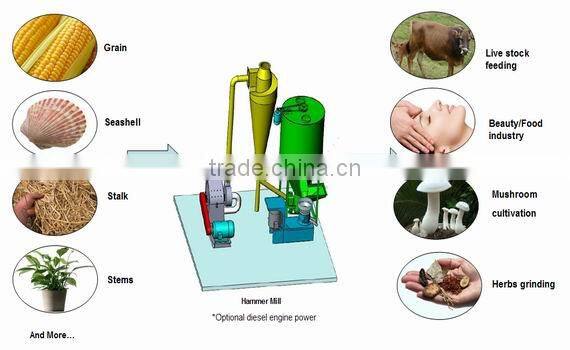

Application
Hammer mill is widely uesd in livestock farm, feed processing plant, Ethanol plant and many industries to grind:
Grains
Straws
Crab, Clam & Oyster Shells
Herbs
Feed
Corncob
Vines
Pappers and more...
Granularity Reference
Packing
Parameter
Model | Weight (KG) | Dimension (MM) | Match Power | Hammer Qty | Screen Mesh | |
(KW) | (HP) | |||||
9FQ36 | 85 | 900*750*1070 | 5.5-7.5 | 10 | 12 | 0.5-5 |
9FQ40 | 160 | 945*835*768 | 7.5-11 | 12 | 12 | 1.2-8 |
9FQ42 | 125 | 730*650*920 | 11-15 | 18 | 16 | 1.2-20 |
9FQ50 | 280 | 1150*1200*1090 | 11-15 | 20-28 | 16 | 1.2-20 |
9FQ50-40 | 275 | 1100*930*1030 | 22-37 |
| 24 | 1.2-30 |
9FQ50-50 | 360 | 1157*1250*1030 | 30-37 |
| 30 | 1.2-30 |
9FQ50-60 | 380 | 1157*1355*1030 | 37-45 |
| 36 | 1.2-30 |
