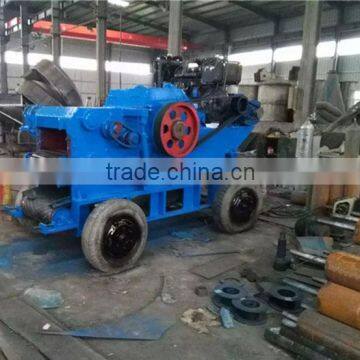

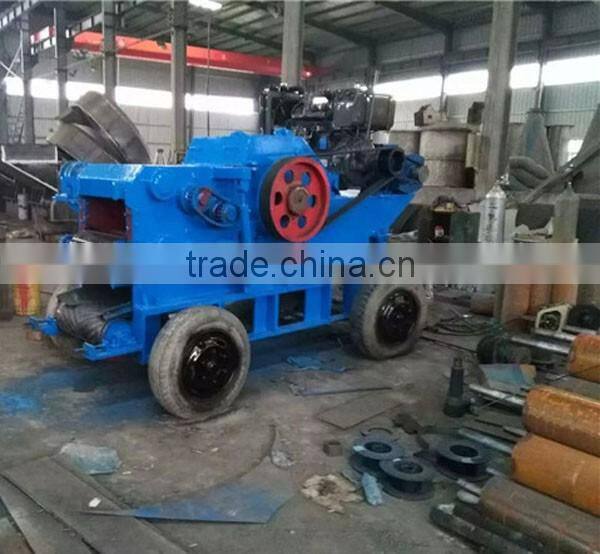

Help CenterIndustrial Mobile Wood Chipper/wood Crusher Machine With 4 Wheels
Related Products
-
Low Cost Wood Sawdust Machine/wood Hammer Mill With High EfficiencyUS$ 5,000 - 5,000MOQ: 1 Set -
Professional Hammer Mill/wood Chips Hammer Mill/wood Sawdust Making Machine for SaleUS$ 5,000 - 5,000MOQ: 1 Set
-
Multifunction Wood Hammer Mill/sawdust Machine With High QualityUS$ 8,000 - 8,000MOQ: 1 Set
-
Small Size Wood Powder Machine/sawdust Making Machine Easy OperationUS$ 5,000 - 5,000MOQ: 1 Set
-
3 Ton per Hour Wood Sawdust Hammer Mill For SaleUS$ 5,000 - 5,000MOQ: 1 Set
Brief Introduction of (Drum) Wood Chipper:

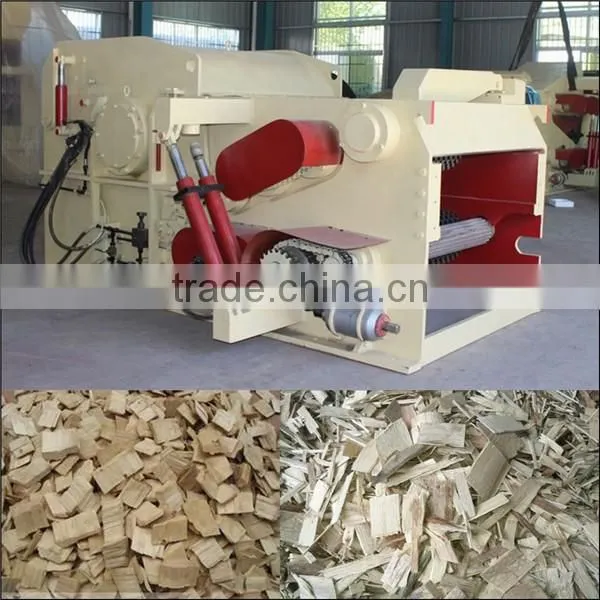

The wood Chipper/ drum chipper/ Wood Cutter is the special equipment which used for crushing kinds of wood (tree limbs, trunks, whole logs, pulp wood, veneer, solid wood, cores, slabs, scraps, etc.) into smaller wood chips of 10-40mm, which is used as material in pulp & paper industry, biomass industry, fiber and particleboard plants, and also well suitableas fuel for high intensity burning in modern heating plants.

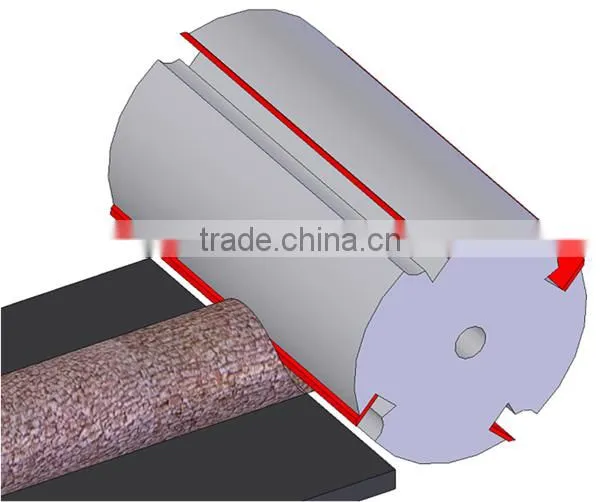

Structure of (Drum) Wood Chipper:

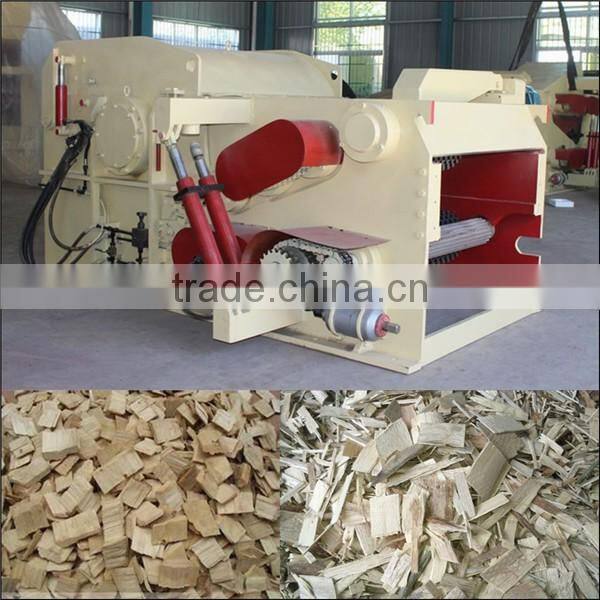

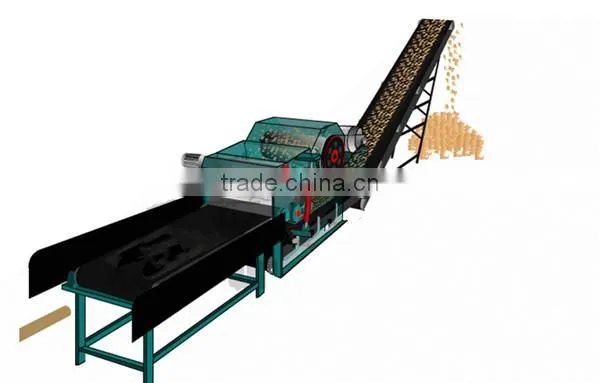

The complete set of this type of machine contains: machine base, rotor drum, upper and lower feed rollers, electrical motor, fed-in belt conveyer, hydraulic system, etc. The machine base is welding of high quality steel plate serving as a support of the whole machine.
Characters of (Drum) Wood Chipper:
1. wood chipping machine Flexible adaptability. The design of wood chipping machine avoids making the foundation.
And wood chipping machine is suitable for many different conditions, wood chipping machine does not influenced by weather and other external conditions.
2. wood chipping machine Save time. This wood chipping machine can put into produce directly which will save much time.
3. wood chipping machine Save money. This wood chipping machine has a large capacity and works reliable, only one or two person can control the wood chipping machine .
The detail informations of wood chippers
The technology parameters of drum wood chipper
MODEL |
GX213 |
GX215 |
GX216 |
GX218 |
GX2113 |
Feeder Size |
120*300 |
160*400 |
230*500 |
300*680 |
450*700 |
Max Dia infeed |
120 mm |
160mm |
230mm |
300mm |
450mm |
Main Power |
30kw |
45kw |
55kw |
110kw |
200-250kw |
Flying knives |
2-4 pcs |
2-4 pcs |
2-4 pcs |
2-4 pcs |
2-4 pcs |
Chips size(mm) |
30mm |
30mm |
30mm |
30mm |
30mm |
Capacity(t/h) |
1-3 |
3-5 |
5-8 T |
8-15 T |
15-25 T |
Feeder Power(kw) |
1.1*2 |
(2.2-3)*2 |
(3-4) *2 |
(4-5.5) *2 |
7.5*2 |
Oil pump power(kw) |
1.5×1 |
1.5×1 |
1.5×1 |
1.5×1 |
3x1 |
Weight(kg) |
1200 |
2990 |
5000 |
7000 |
11840 |
Size(mm) |
1400*1000*900 |
1470*1550*970 |
1800*1900*1210 |
2200*2150*1500 |
3670*2517*2050 |
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply Vacuum dryer,rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass prowder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
Guarantee And after-sale services:
A: one year guarantee for whole machine
B: 24 hours technical support by email
C: Calling or door-to-door service
D: Use-friendly English software, user manual and detailed video/CD
