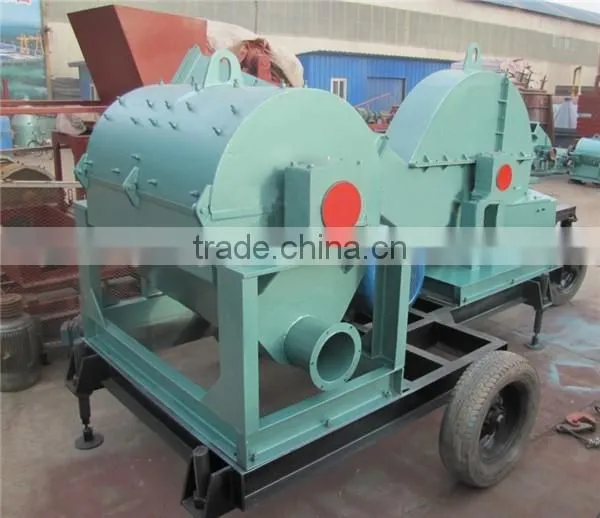

Brief Introduction of wood hammer mill
This series wood hammer mill used for crushing PVC foam board, rubber and all kinds of straw, weeds, the best equipment, the series structure is reasonable, durable, safe and reliable operation conveniently. Slight vibration, high efficiency, mainly used for feed mills, farms, organic fertilizer factory. Chinese herbal medicine, and chemical. Deeply welcomed by the general customers.
Features of wood hammer mill
(1)This wood hammer mill motor and rotor are installed in the same heavy-duty base, using coupling direct drive, rotor passes accurate dynamic balancing test, the hammers are arranged symmetrically.
(2)Unique Feeding Design, the feeding inlet is made at the side of the device to make feeding easily.
(3)The cushing machine shell is welded by steel plate, the site in the crush room which connects to the materials all use the wearable and commutative parts and double wear plate.
(4)Hammers adopts special abrasion resistent treatment technology, extend its lifetime greatly.
Technology parameters of wood hammer mill
Model |
JLFS1000M |
JLFS1200M |
JLFS1400M |
Electric motor |
75 kw |
90 kw |
110kw |
Working capacity |
2-3T/H |
3-5T/H |
5-7T/H |
Chipping roller rotation speed |
610 r/min |
610 r/min |
490 r/min |
Grinding roller ratation speed |
1970 r/min |
1970 r/min |
1970 r/min |
Chipping bearing type |
1312, 7312, 2312 |
1218, 7218, 2218 |
30222, 1222, 2222 |
Fineness after grinding |
1-10mm |
1-10mm |
1-10mm |
Fineness after chipping |
15-35mm |
15-35mm |
15-35mm |
Diameter of chipping machine |
1000mm |
1200mm |
1400mm |
Diameter of grinding machine |
860mm |
860mm |
860mm |
Grinding bearing type |
self-aligning ball bearing 2218 |
self-aligning ball bearing 2222 |
self-aligning ball bearing 2222 |
Dimension |
2900*1600*1200mm |
4000*1700*1700mm |
4000*1900*1800mm |
Packaging of wood hammer mill
All our wood hammer mill are packaged by wooden box or according to your requirement.The big quanitity order will use container to delivery.
Shipping of wood hammer mill
All wood hammer mill are shipped after we product well and get all the payment.
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply Vacuum dryer,rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass prowder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
Pre-sales Service:
1. The wide product range enables us to provide our customers with stand-alone machines or complete processing plants;
2. Based on our customers' request and budget, our experts make efficient, reliable solutions;
3. Before placing the order every customer has the chance to visit working machines or complete plant in the site;
4. We have a full set of testing equipment, to provide a good test environment.
After-sales Service:
1. Experienced technicians guidance and engineers will be dispatched to the quarry site to help install the customers' plants;
2. Provide necessary training about machine daily maintenance to local workers ;
3. After-sales department has well-trained employees and professional installation engineers.
