Disc Wood Chipper
1. Wood chipper is used for dealing with wood logs, wood waste, bamboo etc. Make them into pieces.
The thickness of finished wood chips is about 1-3mm, length is about 10mm, and the width is about 30mm.
2. Wood disc chipper structure is simple, easy to operate and easy to repair.
It can be driven by electricity motors or the diesel engine or by PTO.
The different type wood chipper

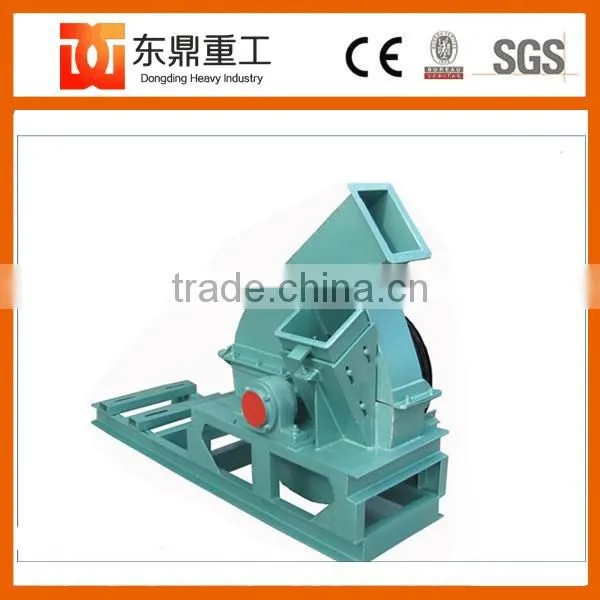

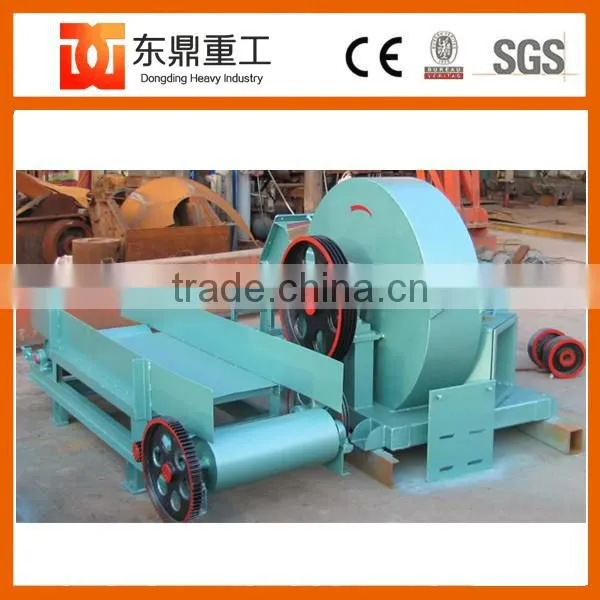

The disc wood chipper at our factory
Working Process of disc wood chipper
The technical parameters of disc wood chipper
Model | PX-600 | PX-800 | PX-1000 | PX-1200 | PX-1400 |
Diameter of cutter(mm) | 600 | 800 | 1000 | 1200 | 1400 |
Revolving speed of cutter(r/min) |
740-610 | 610 | 610 | 490 | 490 |
Length of chip(mm) |
20-50 | 20-50 | 20-50 | 20-50 | 20-50 |
Thickness(mm) | 2-15 | 2-15 | 2-15 | 2-15 | 2-15 |
Dimension of feeder(mm) | 200*200 | 200*200 | 300*320 | 330*350 | 360*370 |
Capacity(t/h) | 1-3 | 3-5 | 4-6 | 6-8 | 8-10 |
Power of motor(kw) | 18.5 | 30 | 37 | 45 | 55-75 |
Max diameter of logs(mm) |
Φ190 | Φ240 | Φ290 | Φ330 | Φ350 |
Weight of machine(kg) | 1200 | 1680 | 2720 | 3560 | 4120 |
Overall dimension(L*W*H)(mm) | 1800*500*1200 | 1800*700*1200 | 2100*1000*1300 | 2200*1200*1850 | 2600*1300*1900 |
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply Vacuum dryer,rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass prowder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
Before Sales:
1. Guide our customers to deploy the most useful equipment item according to their
requirement.
2. Provide product information and technical details.
3. Design and manufacture product according to the customers' special requirement.
After Sales:
We can dispatch our technician to help installation or guidance on-line to make sure the right installation and operation.
Our Promise:
1. Offer one-year warranty(except wearing parts).
2. The price of wearing parts will not higher than the market price.
