The different type wood chipper
1. Usage Of Disc Wood Chipper
This kind of wood chipper is the special chipping/crushing equipment for
raw wood of 50-250mm (diameter).The diameter of wood sawdust can reach
to 2-5mm, which is suitable for further pelletizing or briquette.
2. Raw material Of Disc Wood Chipper
All kinds of wood, timber scraps, branches, wood chips, edge material, tree bark, bamboo skin and etc.
3. It would be the best choices for dealing with wood and wood scraps.
Wood chipper is composed of machine body, blades chipping part, hammers re-crushing part, sieving part and etc. It combines both chipping and crushing equipment in one machine, can make sawdust in one passage.
Wood chipper is using slice and blow to work as double break. Its blades
chipping part can slice the logs, branches, roots into small pieces firstly and then the hammers re-crushing part will blow these small pieces into nearly powdery material. And the size of final material will depend on aperture of sieve.

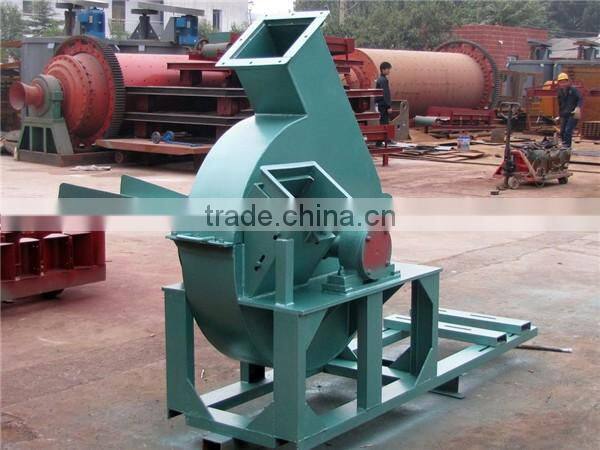

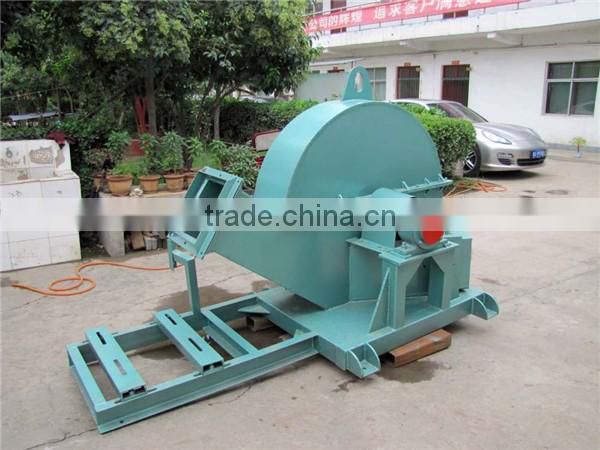

The disc wood chipper at our factory
Working Process of disc wood chipper
The technical parameters of disc wood chipper
Model | PX-600 | PX-800 | PX-1000 | PX-1200 | PX-1400 |
Diameter of cutter(mm) | 600 | 800 | 1000 | 1200 | 1400 |
Revolving speed of cutter(r/min) |
740-610 | 610 | 610 | 490 | 490 |
Length of chip(mm) |
20-50 | 20-50 | 20-50 | 20-50 | 20-50 |
Thickness(mm) | 2-15 | 2-15 | 2-15 | 2-15 | 2-15 |
Dimension of feeder(mm) | 200*200 | 200*200 | 300*320 | 330*350 | 360*370 |
Capacity(t/h) | 1-3 | 3-5 | 4-6 | 6-8 | 8-10 |
Power of motor(kw) | 18.5 | 30 | 37 | 45 | 55-75 |
Max diameter of logs(mm) |
Φ190 | Φ240 | Φ290 | Φ330 | Φ350 |
Weight of machine(kg) | 1200 | 1680 | 2720 | 3560 | 4120 |
Overall dimension(L*W*H)(mm) | 1800*500*1200 | 1800*700*1200 | 2100*1000*1300 | 2200*1200*1850 | 2600*1300*1900 |
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply Vacuum dryer,rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass prowder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
Before Sales:
1. Guide our customers to deploy the most useful equipment item according to their
requirement.
2. Provide product information and technical details.
3. Design and manufacture product according to the customers' special requirement.
After Sales:
We can dispatch our technician to help installation or guidance on-line to make sure the right installation and operation.
Our Promise:
1. Offer one-year warranty(except wearing parts).
2. The price of wearing parts will not higher than the market price.
