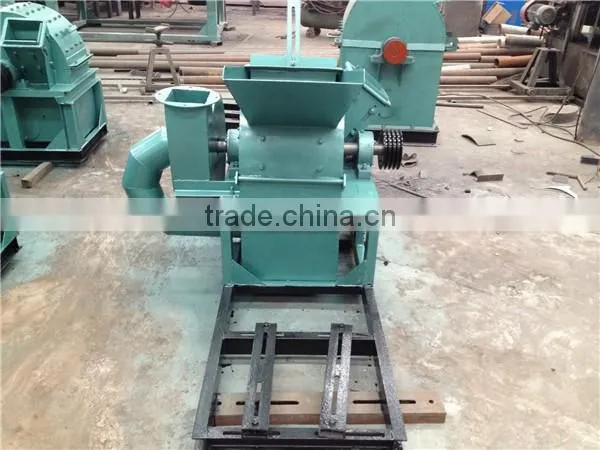

Introduction of wood grinding machine
1. wood grinding machine is the most ideal milling equipment of all kinds of wood pieces, straw, grass,
stalk, tree branches, waste cardboard, bamboo, wood scrap, corn stalk, peanut shell, wheat stalk, wood fuel, cotton stalk, biomass shell and so on.
2. This kind of wood grinding machine is widely used in swine farm, wood factory, etc. Hammer mill is equipped with high carbon steel blade. The raw materials
can be crushed into straw particles, whose diameter is 3-5mm. The durable
hammer mill works with high efficiency and gains more good reputation from European users.
3. The machine could be driven by the diesel engine, motor, tractor, etc.
4. The kinds of machine could be matched with mounting plate for motor or diesel engine, and collector.
The raw material and product of wood grinding machine
Working principle of wood grinding machine
Material went into the crushing chamber through the hopper, then it was crushed by the high speed rotation of the hammer.
Under the effect of centrifugal force, the broken material along the outer edge of the rotor, by continuously hammer, tooth plate, sieve extrusion,collision, blow, rub and was crushed quickly.
Crushed powder was sent out of the crushing chamber through the centrifugal force of the rotor and the fan suction force.But the unbroken materials will repeat the above process until it was crushed and sent out of the crushing room.
Technology parameters of wood grinding machine
Model |
DLFS600F |
DLFS800F |
DLFS1000F |
Blades number |
24pcs |
32pcs |
36pcs |
Feeding port size |
400x240mm |
500x300mm |
600x350mm |
Main shaft rotary speed |
2900rpm |
||
Motor Power |
15-18.5kw |
22-30kw |
37-45kw |
Working capacity |
100kg/h |
150-200kg/h |
200-300kg/h |
Weight |
820kg |
1500kg |
2300kg |
Packaging of wood grinding machine
All our wood grinding machine are packaged by wooden box or according to your requirement.The big quanitity order will use container to delivery.
Shipping of wood grinding machine
All wood grinding machine are shipped after we product well and get all the payment.
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply Vacuum dryer,rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass prowder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
