2017 CE approved animal feed pellet machine/poultry feed pellet machine with good quality
- 50 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Dongding feed pellet machine |
Model Number: | ZLSP 300B | Type: | Other, Feed Pellet Machine, Ring Die (vertical Located) Pellet Machines | Voltage: | 220V/380V |
Power(W): | 2.2-11kw | Dimension(L*W*H): | different feed pellet machine different | Weight: | 300 kg |
Certification: | ISO9001:2008 | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
1>The introduction of the animal feed pellet machine
Pellet machine can make all kinds of solid grain into small pellet feed for animals like fish, shrimps, chicken, rabbit, horses, goats, etc.
It can also make all kinds of saw dust, paddy straw, sunflower stalk, forestry wastes, wood chips, and many other wastes into wood pellets to be used as fuels.
2>The working principle of the animal feed pellet machine
The flat die pellet machine works on vertical principle. The raw material is put into the hopper from above, and then it drops down into the pelletizing area. The die is stationery while rollers are rotating. When falling into this area, materials will naturally be compressed into pellet between rollers and die through the die holes.
3>Features of animal feed pellet machine :
1) The flat die pellet mills are easier to clean than the ring die pellet mill.
2) Able to change die and roller faster and easily.
3) Small and lightweight, making small-scale production.
4) Visibility. It is possible to view into the chamber when pelletizing, so you can solve any problem in time.
4>Operation of the animal feed pellet machine :
1) Feeding way: Ring die pellet mill adopts imperative feeder when making wood pellets, while the flat die can send material into pelletizing chamber smoothly just depending on the material's own weight.
2) Pressure: The flat die itself doesn't occupy much space, which not only gives more space for rollers, but also reduces friction and prolongs service life.
3) Output pellet: Ring die has a high rotary speed, thus it may cause damage to pellet easily; while the flat die can ensure the pellets'integrity.
in eroance characteristics of small feed pellet mac

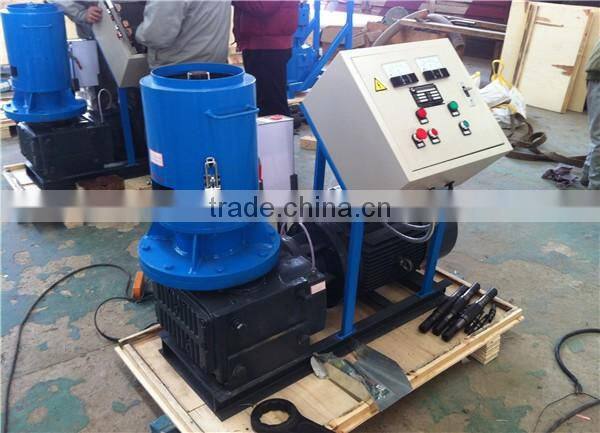

Some parts of pellet machine

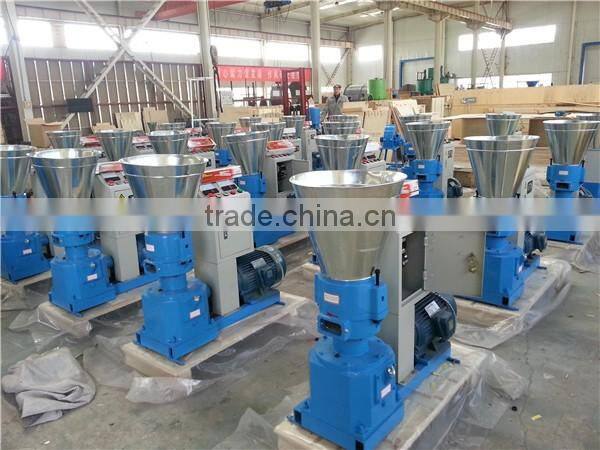

The feed pellet machine at our factory
The technology parameters of small bio wood pellet machine:
APPEARANCE | DRIVEN BY | MODEL | POWER | CAPACITY (kg/h) | WEIGHT (nw/gw) | PACKING SIZE (mm) |
| Electric motor | ZLSP-D 150B | 5.5kW | 50-100 | 95/110 | 800x450x700 |
ZLSP-D 200B | 7.5 kW | 80-120 | 200/230 | 1050x480x930 | ||
ZLSP-D 230B | 11 kW | 120-200 | 290/320 | 1180x540x1000 | ||
ZLSP-D 260B | 15 kW | 160-250 | 320/360 | 1240x540x950 | ||
ZLSP-D 300B | 22 kW | 250-400 | 350/380 | 1300x560x1100 | ||
| Electric motor | ZLSP-D 150C | 5.5kW | 60-110 | 105/125 | 1000x480x780 |
ZLSP-D 200C | 7.5 kW | 80-120 | 210x230 | 1050x550x830 | ||
ZLSP-D 230C | 11 kW | 120-200 | 290/320 | 1200x560x950 | ||
ZLSP-D 260C | 15 kW | 160-250 | 340/370 | 1240x560x1000 | ||
ZLSP-D 300C | 22 kW | 250-400 | 425/465 | 1300X620X1100 | ||
| Diesel engine | ZLSP-D 150A | 8HP | 50-100 | 180/220 | 100x500x750 |
ZLSP-D 200A | 15 HP | 80-120 | 210/240 | 1460x750x900 | ||
ZLSP-D 230A | 22 HP | 120-200 | 280/310 | 1560x850x1100 | ||
ZLSP-D 260A | 30 HP | 160-250 | 330/360 | 1200x500x1070 | ||
ZLSP-D 300A | 41 HP | 250-400 | 410-450 | 1220x600x1000 | ||
| Gasoline engine | ZLSP-150Q
| 7.5HP | 90-120 | 180-220 | 1000x500x750 |
| PTO | ZLSP-D 150P | ≥8 HP | 50-100 | 90-110 | 900x540x1020 |
ZLSP-D 200P | ≥15 HP | 80-120 | 130/150 | 1000x540x1020 | ||
ZLSP-D 230P | ≥22 HP | 120-200 | 175/200 | 1000x540x1020 | ||
ZLSP-D 260P | ≥33 HP | 160-250 | 235/255 | 1050x540x900 | ||
ZLSP-D 300P | ≥41 HP | 250-400 | 305/325 | 1100x540x1000 |
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply Vacuum dryer,rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass prowder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
About the machine:
Q1. Does this machine can make wood pellets?
Answer: This machine can make both wood pellets and feed pellets. When making feed pellets, it performs better and the capacity is bigger.
Q2. What are the spare parts for this series pellet machine?
Answer: The spare parts for this machine are one die and two rollers.
Q3. How often should I change the spare parts?
Answer: The long life time of the die and rollers is 1500 hours at least. It needs to change the easy wear parts every five months. If maintained and used well, the parts can be used about EIGHT months or more.
Q4. How often would the machine need to be serviced?
Answer: Every three months is the best for the machine.
Q5. Does the raw materials require any additives to aid in the forming of the pellets?
Answers: It doesn't need to add any additives to aid in the forming of pellets. The only thing you need to do is to control the moisture of the raw materials properly.
