Help Center200-300kg/h Electric and Diesel Flat-die Chicken/Cow/Pig Feed Pellet Making Machine
Related Products
-
Professional Poutlry Feed Pellet Making Machine/animal Feed Pellet Machine SupplierUS$ 22,000 - 22,000MOQ: 1 Set -
Catfish Feed Pellet Mill/poultry Feed Pellet MachineUS$ 500 - 500MOQ: 1 Set
-
Ring Die Wood Sawdust Pellet Machine/biomass Pellet Machine/pellet Making MachineUS$ 22,000 - 22,000MOQ: 1 Set
-
Biomass Rice Husk Pellet Machine/Straw Pellet Making MachineUS$ 22,000 - 22,000MOQ: 1 Set
-
2017 Best Selling Automatic Poultry Equipment Floating Animal Feed Pellet Machine for SaleUS$ 800 - 800MOQ: 1 Set
1. Brief introduction of machine to make the pellet
This machine-- machine to make the pellet is also called feed pellet machine or wood pellet making machine, which is used to compress various grain materials into solid pellets. There are different types of machine to make the pellet designed for feed pellets for animal, some are designed for biomass fuel used for heating. With the development of society and economy, a new trend using biomass pellets as fuel has appeared in the world. If you want to make pellets just for residential use, a small machine to make the pellet will be enough for you; if you want to make pellets for industrial fuel, we can provide machine to make the pellet with large capacity.
3. Features of machine to make the pellet
1). Different machine to make the pellet , you can choose any model according to your actual capacity.
2). Adjustable die sizes, you can get different diameters pellets by changing the dies;
3). The compression roll and die of our small pellet making machine are made of alloy, which has a long service life;
4). As a machine to make the pellet manufacturer, before the machine is made out, we have done thousands of text, so this machine has the features of stable working,
5). With easy operate and full automatic, one people can complete all the processes.
6). Our machine to make the pellet has passed the CE certificate, which proves this machine has high quality;
7). For the power of the machine to make the pellet, you can choose electricity, gasoline, or diesel.

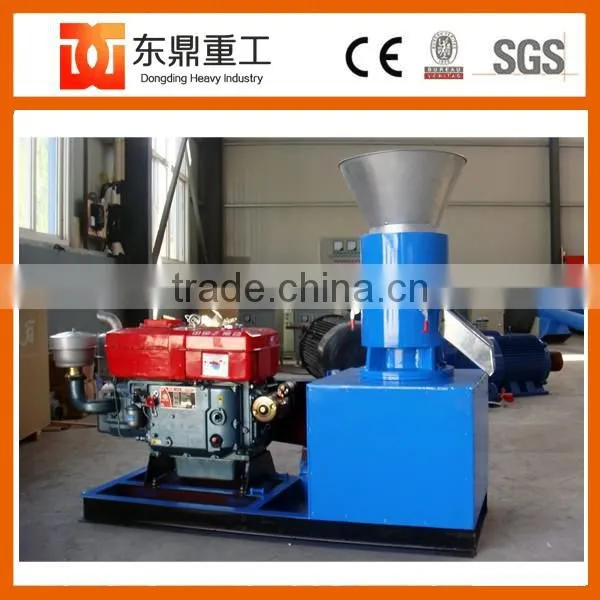

The feed pellet machine at our factory
The final product of feed pellet machine
in eroance characteristis of small feed pellet machin
4. Working principles of machine to make the pellet
In the inner part of the machine to make the pellet, there is a compression roller and a die. The die has a lot of holes:
1. When the sawdust get into the hopper of the machine to make the pellet , the compression roller will repeatedly compress the sawdust into the hole of the die.
2. At the flounce of the compress force, the pellet come out from the holes.
3. When the pellet has enough weight, it will be broken up by the gravity. The length is from 3--8cm.
5. Application of machine to make the pellet
The raw materials of machine to make the pellet can be rice husk, peanut shell, corn stalks, corn cob, cotton stalks, wood shavings, sawdust and other solid scrap materials.
Some parts of pellet machine
The technology parameters of small bio wood pellet machine:
APPEARANCE |
DRIVEN BY |
MODEL |
POWER |
CAPACITY (kg/h) |
WEIGHT (nw/gw) |
PACKING SIZE (mm) |
|
Electric motor |
ZLSP-D 150B |
5.5kW |
50-100 |
95/110 |
800x450x700 |
ZLSP-D 200B |
7.5 kW |
80-120 |
200/230 |
1050x480x930 |
||
ZLSP-D 230B |
11 kW |
120-200 |
290/320 |
1180x540x1000 |
||
ZLSP-D 260B |
15 kW |
160-250 |
320/360 |
1240x540x950 |
||
ZLSP-D 300B |
22 kW |
250-400 |
350/380 |
1300x560x1100 |
||
|
Electric motor |
ZLSP-D 150C |
5.5kW |
60-110 |
105/125 |
1000x480x780 |
ZLSP-D 200C |
7.5 kW |
80-120 |
210x230 |
1050x550x830 |
||
ZLSP-D 230C |
11 kW |
120-200 |
290/320 |
1200x560x950 |
||
ZLSP-D 260C |
15 kW |
160-250 |
340/370 |
1240x560x1000 |
||
ZLSP-D 300C |
22 kW |
250-400 |
425/465 |
1300X620X1100 |
||
|
Diesel engine |
ZLSP-D 150A |
8HP |
50-100 |
180/220 |
100x500x750 |
ZLSP-D 200A |
15 HP |
80-120 |
210/240 |
1460x750x900 |
||
ZLSP-D 230A |
22 HP |
120-200 |
280/310 |
1560x850x1100 |
||
ZLSP-D 260A |
30 HP |
160-250 |
330/360 |
1200x500x1070 |
||
ZLSP-D 300A |
41 HP |
250-400 |
410-450 |
1220x600x1000 |
||
|
Gasoline engine |
ZLSP-150Q
|
7.5HP |
90-120 |
180-220 |
1000x500x750 |
|
PTO |
ZLSP-D 150P |
≥8 HP |
50-100 |
90-110 |
900x540x1020 |
ZLSP-D 200P |
≥15 HP |
80-120 |
130/150 |
1000x540x1020 |
||
ZLSP-D 230P |
≥22 HP |
120-200 |
175/200 |
1000x540x1020 |
||
ZLSP-D 260P |
≥33 HP |
160-250 |
235/255 |
1050x540x900 |
||
ZLSP-D 300P |
≥41 HP |
250-400 |
305/325 |
1100x540x1000 |
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply Vacuum dryer,rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass prowder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
About the machine:
Q1. Does this machine can make wood pellets?
Answer: This machine can make both wood pellets and feed pellets. When making feed pellets, it performs better and the capacity is bigger.
Q2. What are the spare parts for this series pellet machine?
Answer: The spare parts for this machine are one die and two rollers.
Q3. How often should I change the spare parts?
Answer: The long life time of the die and rollers is 1500 hours at least. It needs to change the easy wear parts every five months. If maintained and used well, the parts can be used about EIGHT months or more.
Q4. How often would the machine need to be serviced?
Answer: Every three months is the best for the machine.
Q5. Does the raw materials require any additives to aid in the forming of the pellets?
Answers: It doesn't need to add any additives to aid in the forming of pellets. The only thing you need to do is to control the moisture of the raw materials properly.
